TV SERVICE MANUAL09.0
CHAPTER 3B ENGINE
P
AGE 3B - 14 -
V

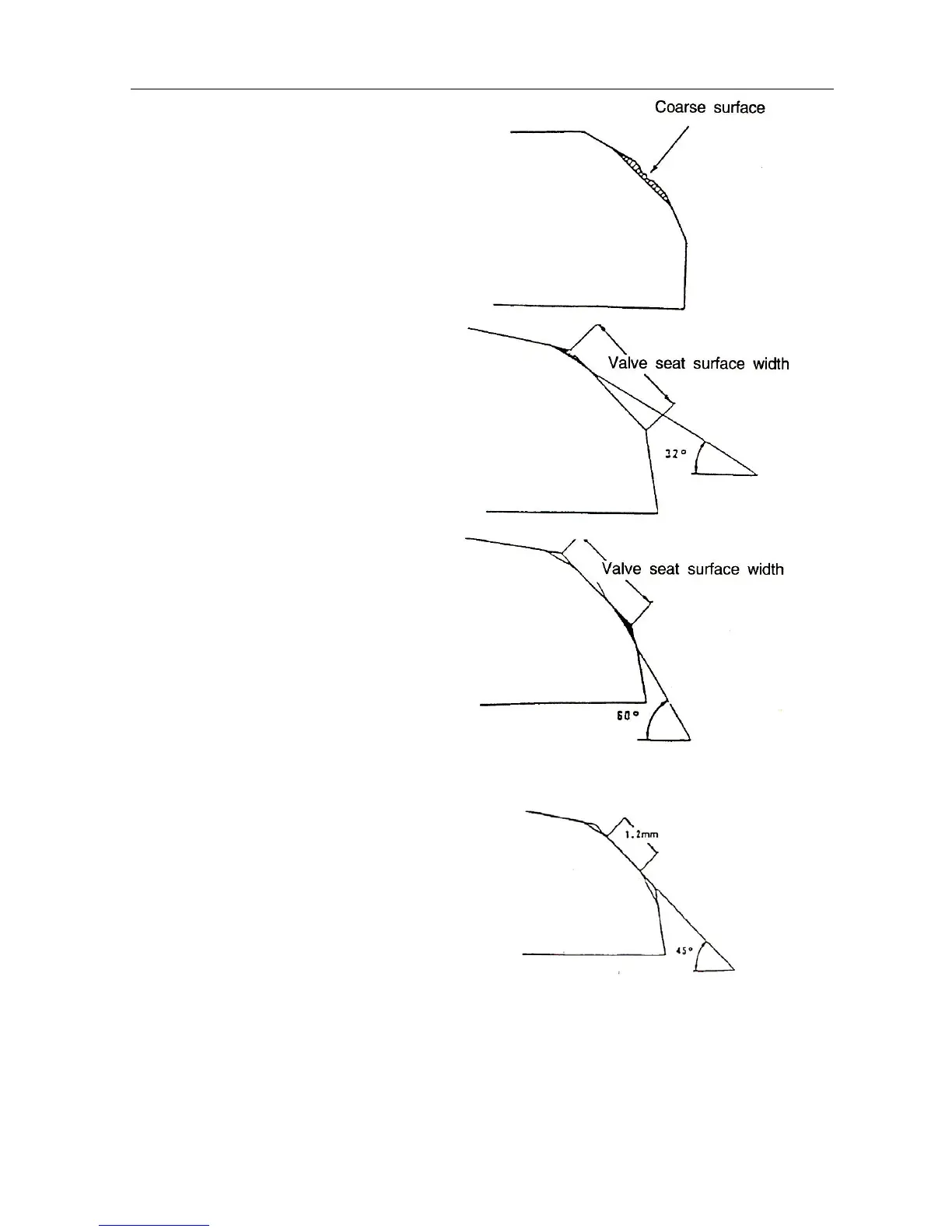

alve seat cutting
Do not polish or cut excessively
.
Cut primary surface with 45°cutting head.
Chamfer inner edge with 32°cutting head.
Chamfer outer edge with 60°cutting head.
Correct inner surface by 60°chamfered tool.
T
rim valve seat to assigned width with
45°chamfered cutting tool.
S
tandard valve: 1.0mm
