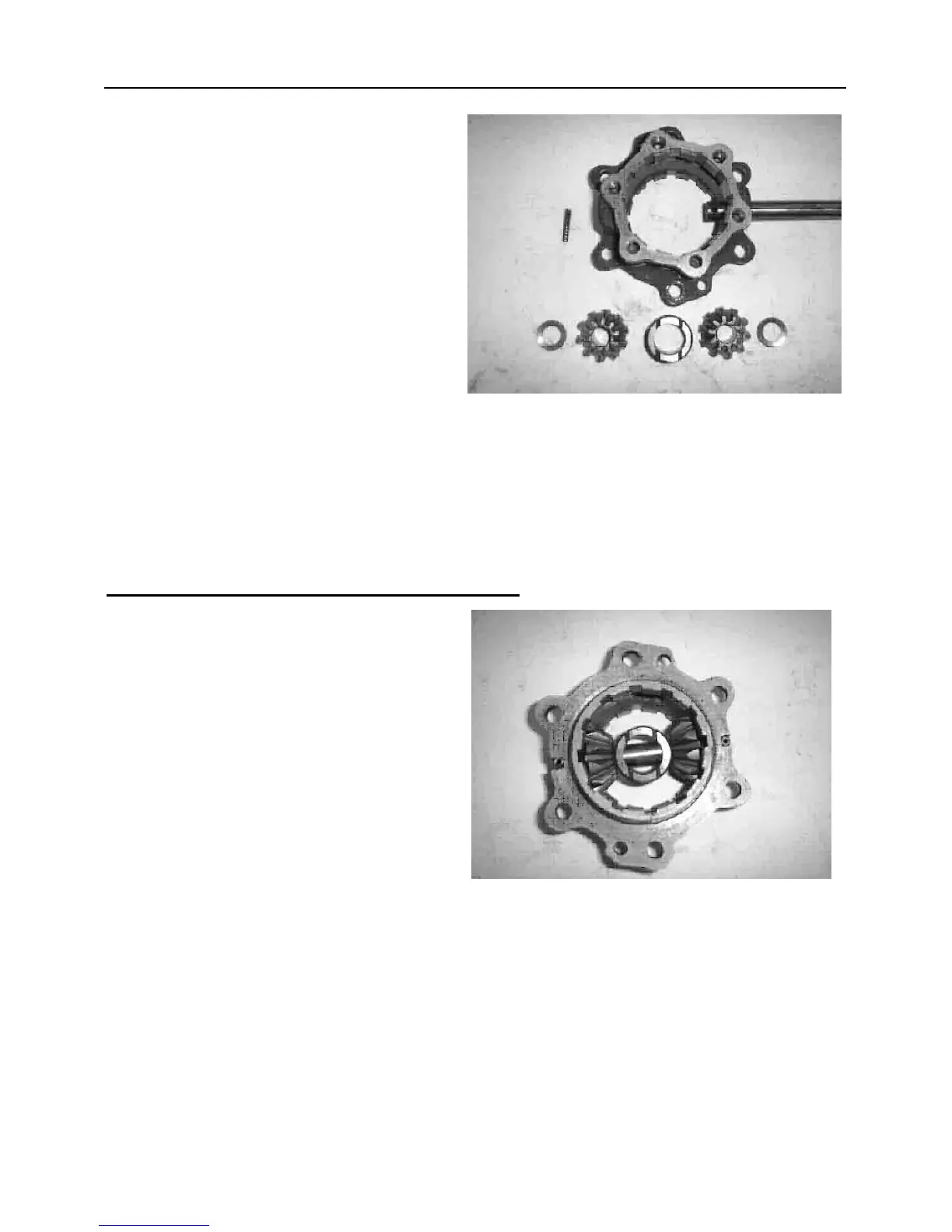

6. Remove roll pin from center pin.
7. Remove center pin, bevel pinion washers,
bevel pinions and center spacer from
differential housing.
8 Clean all components and inspect for wear. Inspect gears for wear, cracks, chips or broken
teeth. Inspect inner and outer splines on the spider gears and friction plates, replace if edges
are rounded. Inspect casting for crack. Inspect axletree for smooth operation, check for
excessive play between inner and outer race. Inspect dish spring for wear, cracks, relaxation.
Replace part with any defects.
5.20 FRONT DIFFRENTIAL ASSEMBLY
1.
Install center pin, bevel pinion washers,
bevel pinions and center spacer into
differential housing.
