5. Remove stator fixing screw to take out
stator.
Install it in the reverse order of removal.
NOTE:
As there is magnetism inside the magneto rotor,
make sure no metal object is taken in and the inside
of the rotor is cleaned out before installation.

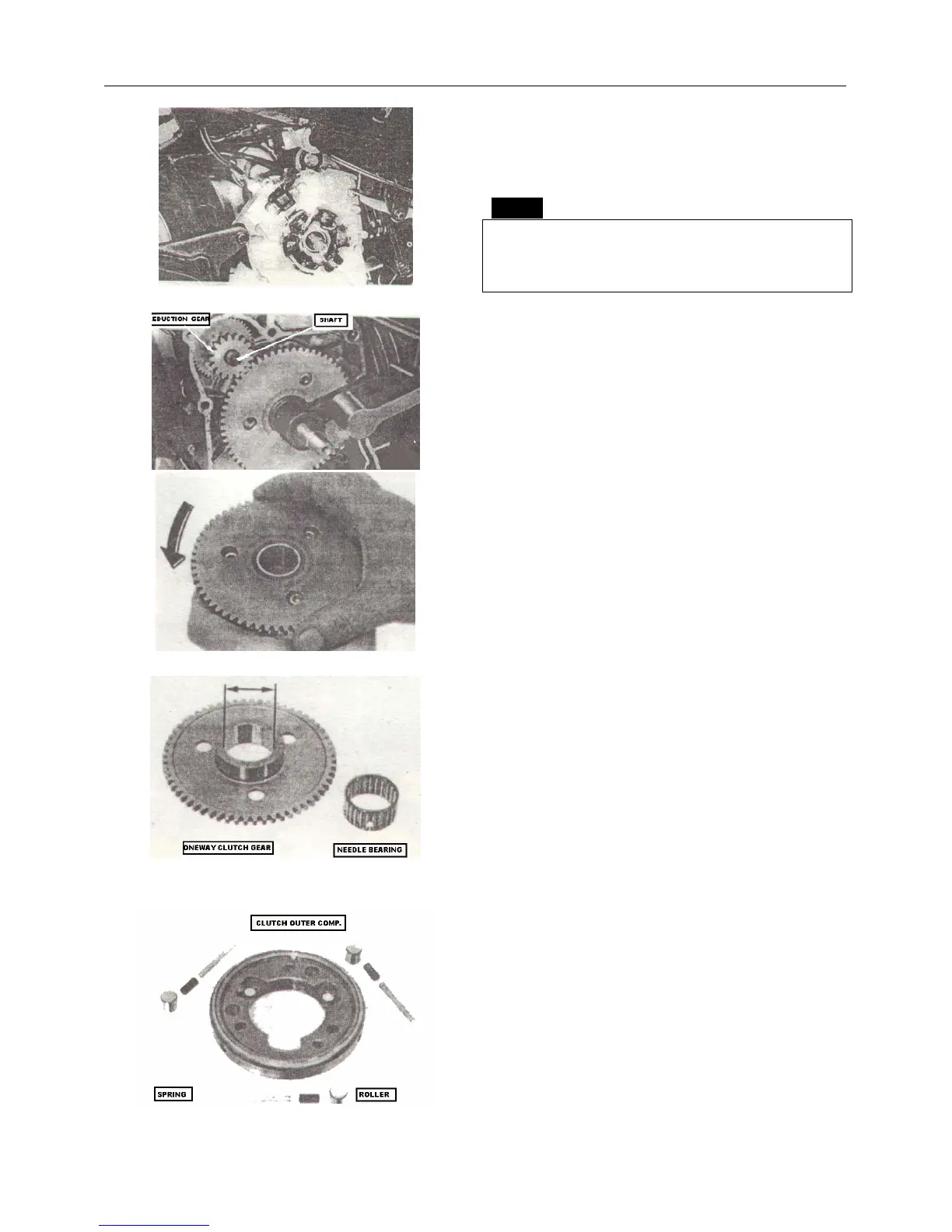

3.4.8 Electric starter
1. Remove starter clutch.
2. Remove idler gear and idle gear shaft.
3. When turning the starter wheel gear
counterclockwise, it should turn freely.
When turning the starter wheel gear
clockwise, it should be engaged.
4. Inspect clutch wheel gear for abnormal
wear. If so, replace it with a new one.
5. Measure gear wheel orifice inside diameter.
If it goes beyond the limit of 32.06mm,
replace.
6. Inspect needle roller bearing for wear.
Check if needle roller turns freely in its
holder. If it works improperly, replace it with
a new one.
7. Take spring, spring sleeve and roller out of
clutch outer race. Inspect roller for wear,
spring for distortion and out race for wear. If
there appears anything abnormal, replace.
