CHAPTER 5 FINAL DRIVE ATV SERVICE MANUAL 09.0
CHAPTER 5 FINAL DRIVE. 5-
3
roughness is evident.

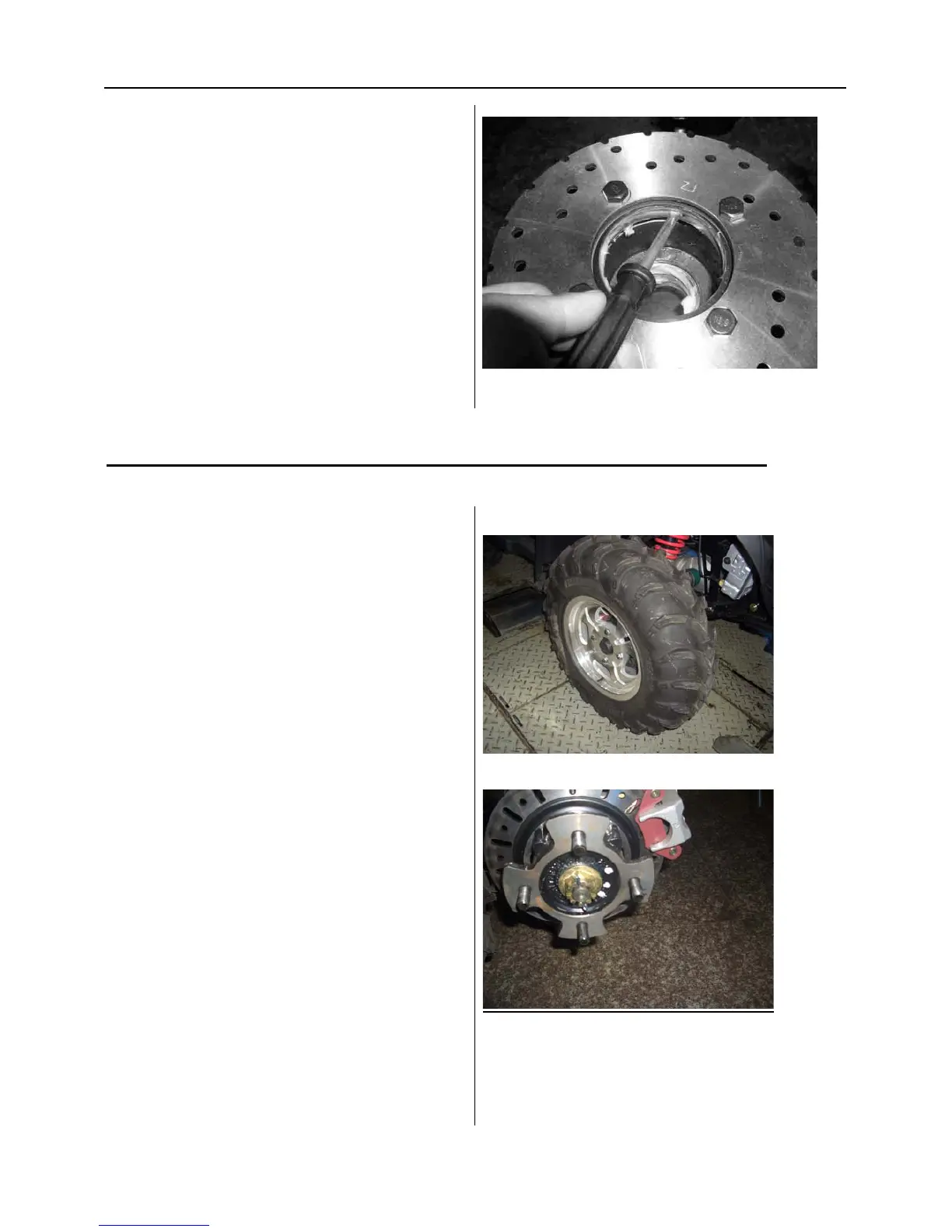

7. Place a shop towel on hub to protect
surface. Carefully pry seal out of hub. Do
not damage the surface of the seal. Clean
the hub.
8. Drive bearing out through opposite side of
hub and discard.
9. Drive other bearing out and discard.
10. Clean hub and spacer thoroughly.
5.2 FRONT HUB REMOVAL/INSPECTION 4x4(ATV400-2 / ATV400-2B)
1. Elevate front end and safely support
machine Under footrest/frame area.
CAUTION:
Serious injury may result if machine tips or
falls, Be sure machine is secure before
beginning this service procedure. Wear
eye protection when removing bearings
and seals.
2. Check bearings for side play by grasping
the tire/Wheel firmly and checking for
movement. Grasp The top and bottom of
the tire. The tire should rotate smoothly
without binding or rough spots.
3. Remove wheel nuts and wheel.
4. Remove the two brake caliper attaching
bolts.
CAUTION:
Do not hang the caliper by the brake
Line. Use wire to hang the caliper to
prevent. Possible damage to the brake
line.
5. Remove hub cap, cotter pin, front spindle
nut, and Washer.
6. Rotate each bearing by hand and check
for smooth rotation. Visually inspect
To Next Page
