CHAPTER 4B CHASSIS ATV SERVICE MANUAL09.0
CHAPTER 4 CHASSIS PAGE. 4B-
9

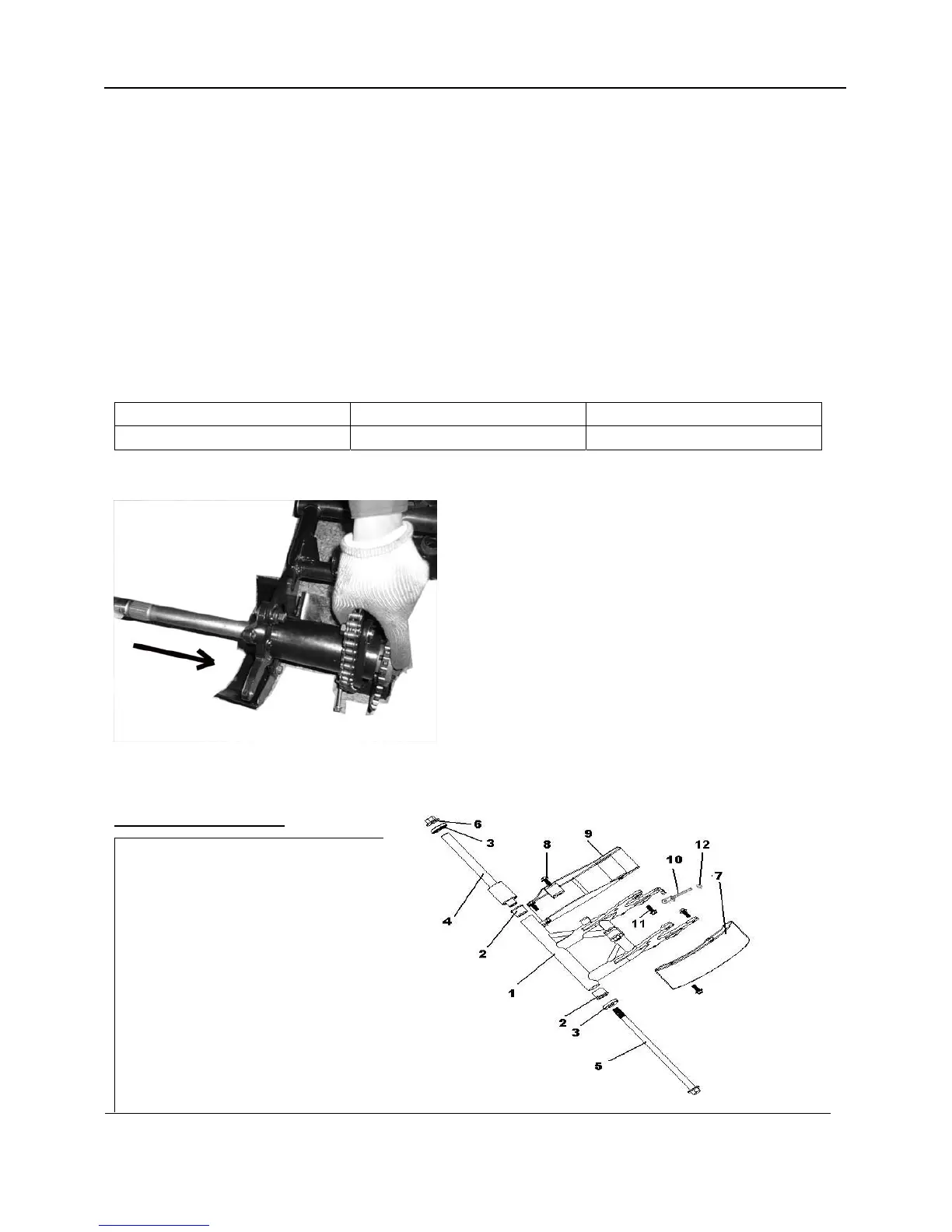

Final Drive Assembly
1. Drive in bearings to the AXLE TUBE.
NOTE: Drive the bearing which near the brake disc first by press the bearing outer race, then
put in the SPACER (15) and drive in another bearing by press the bearing both inner and
outer race till it touch the SPACER (15).
2. Install new oil seals.
3. Install the rear axle from the brake disc side.
4. Reverse the rest procedure for installation till the hub.
5. Screw in the left side castle nut and align the hole to the notch of the nut. Install the right
side castle nut and securely tighten the nut, install a new cotter pin.
6. Securely tighten the left nut and install a new cotter pin.
Torque Specifications:
50/ 80 M 16 X 1.5 62Ft.Lbs ( 83N.m )
100/ 125/ 150 M 20 X 2 81Ft.Lbs ( 110N.m )
7. Install the rubber cap.
4.4 SWING ARM
1 SWINGARM ASSY
2 SWING ARM PIVOT BUSHING
3 SEAL
4 SWING ARM PIVOT BUSHING 3
5 SWING ARM PIVOT
6 NUT M14X1.25
7 DISK BRAKE MANTLE
8 BOLT M8X12
9 CHAIN WHEEL MANTLE
10 CHAIN ADJUSTER
11 BOLT M10X1.25X28
12 NUT M6
