CHAPTER 3A ENGINE 260/ 300 / 400 cc ATV SERVICE MANUAL09.0
CHAPTER 3 ENGINE PAGE. 3A- 25

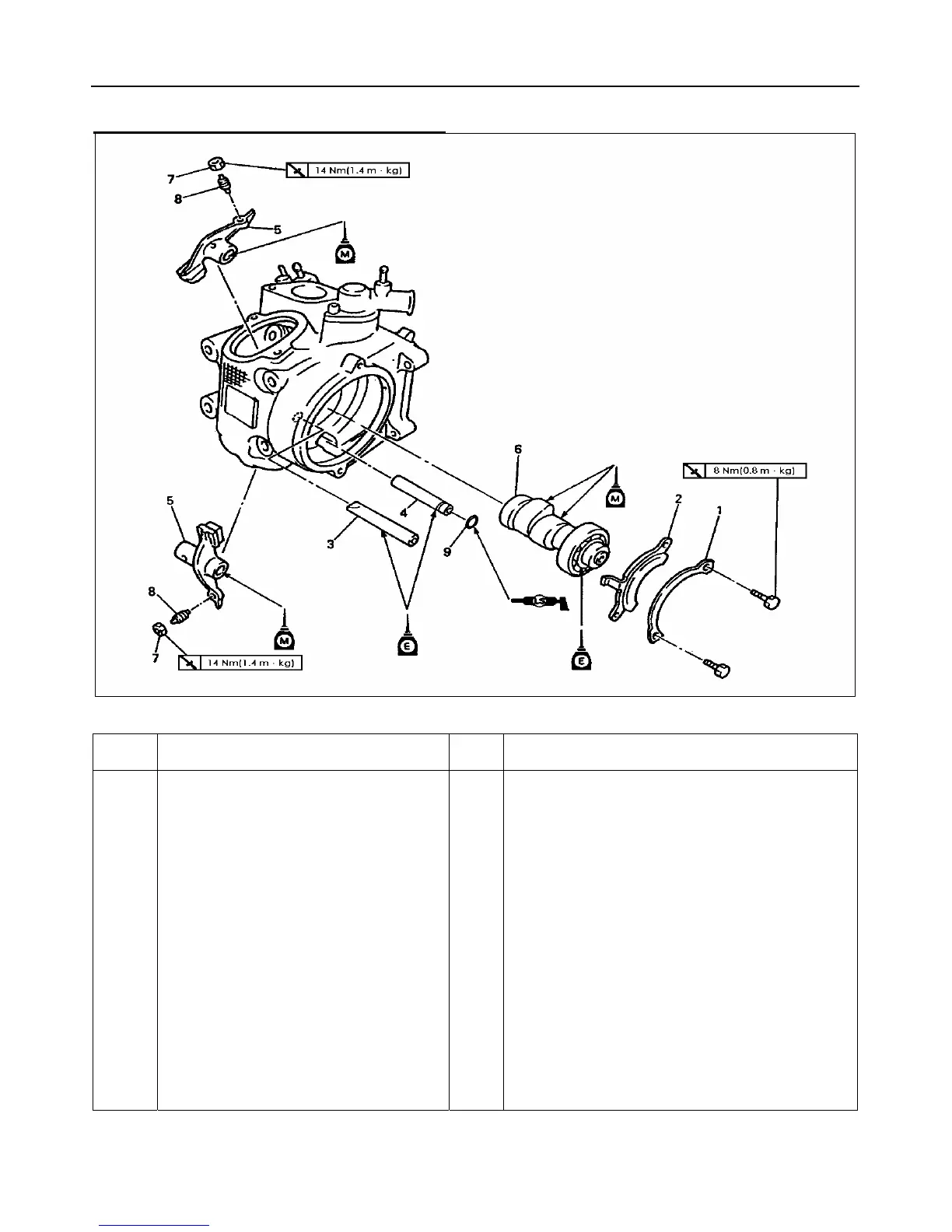

3.4CAMSHAFT AND ROCKER ARMS
Order Job name / Part name Q ’ty Remarks
1
Cam shaft and rocker arms
removal
Cylinder head
Lock washer 1
Remove the parts in order.
Refer to "CYLINDER HEAD" section.
2 Plate 1 Refer to "ROCKER ARM AND ROCKER
3 Rocker arm shaft (intake) 1
4 Rocker arm shaft (exhaust) 1
SHAFT REMOVAL AND INSTALLATION"
section..
5 Rocker arm 2
6 Camshaft 1 Refer to "CAMSHAFT INSTALLATION"
7 Locknut 2 section .
8 Adjuster 2
9 O-ring 1
Reverse the removal procedure for
installation
