TV SERVICE MANUAL09.0
CHAPTER 3B ENGINE
P

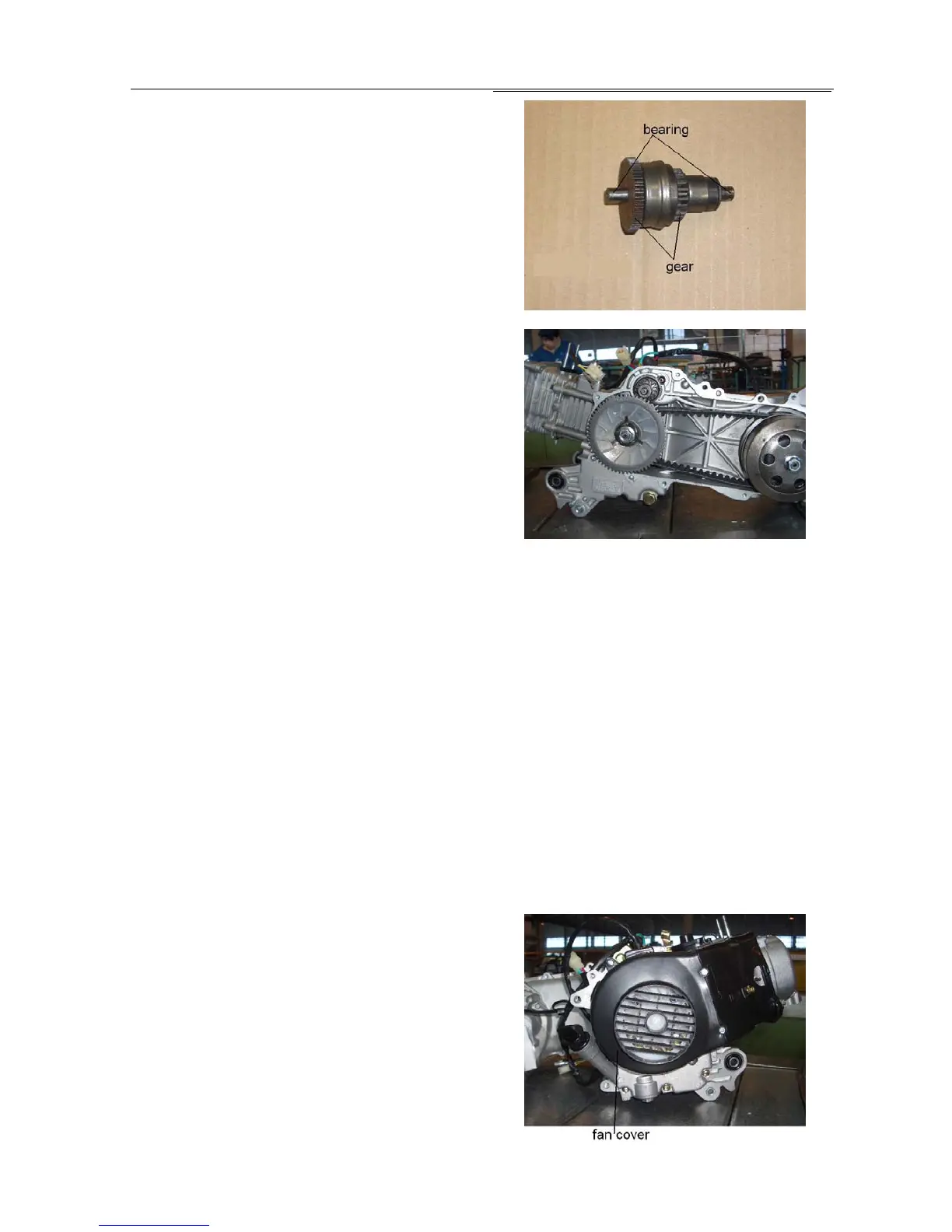

AGE 3B - 66 -
Clean assembly with solvent and lube with dr
y
graphite or light grease.
Do not use heavy grease. Th
is will limit the fast
movement of the starter pinion.
INST
ALLA
TION
Apply a light film of grease to the gears and install
the starter pinion by reversing the removal
procedure.
Install the lef
t
crankcase cover
.
3.10 Magneto
3.10.1 Dismantling:
Remove the four screws, and remove the fan
cover
.
183
185
