CHAPTER
5
FINAL
DRI
VE
A
T
V
S
E
R
V
I
C
E
M
A
N
U
A
L
0
9
.
0
C
H
A
P
T
E
R
5
F
I
N
A
L
D
R
I
V
E
.
5
-
6

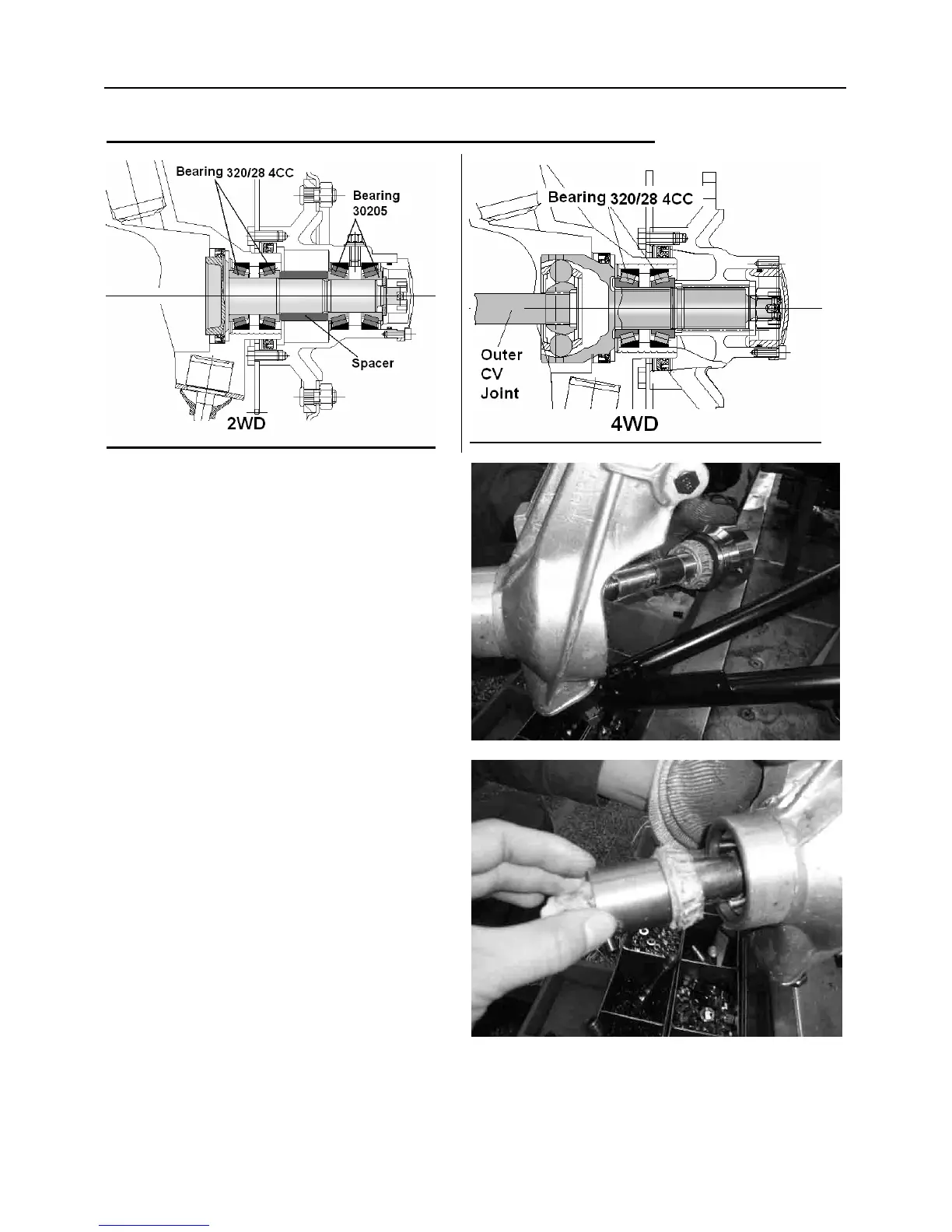

5.4 .a .FRONT HUB INST
AL
LA
TION (A
TV150/200/260/300)
1. Inspect spindle seal on strut and bearing
surface for wear or damage.
2.
Apple grease to spindle and bearing.
3. Install spindle into strut.
4. Install bearing to spindle.
5. Install sp
acer on spindle (2WD).
6. Install bearing 30205 on spindle (2WD) .
7. Apply
grease.
252
254
