CHAPTER 3B ENGINE 50cc/80cc ATV SERVICE MANUAL09.0
CHAPTER 3B ENGINE PAGE 3B - 67 -

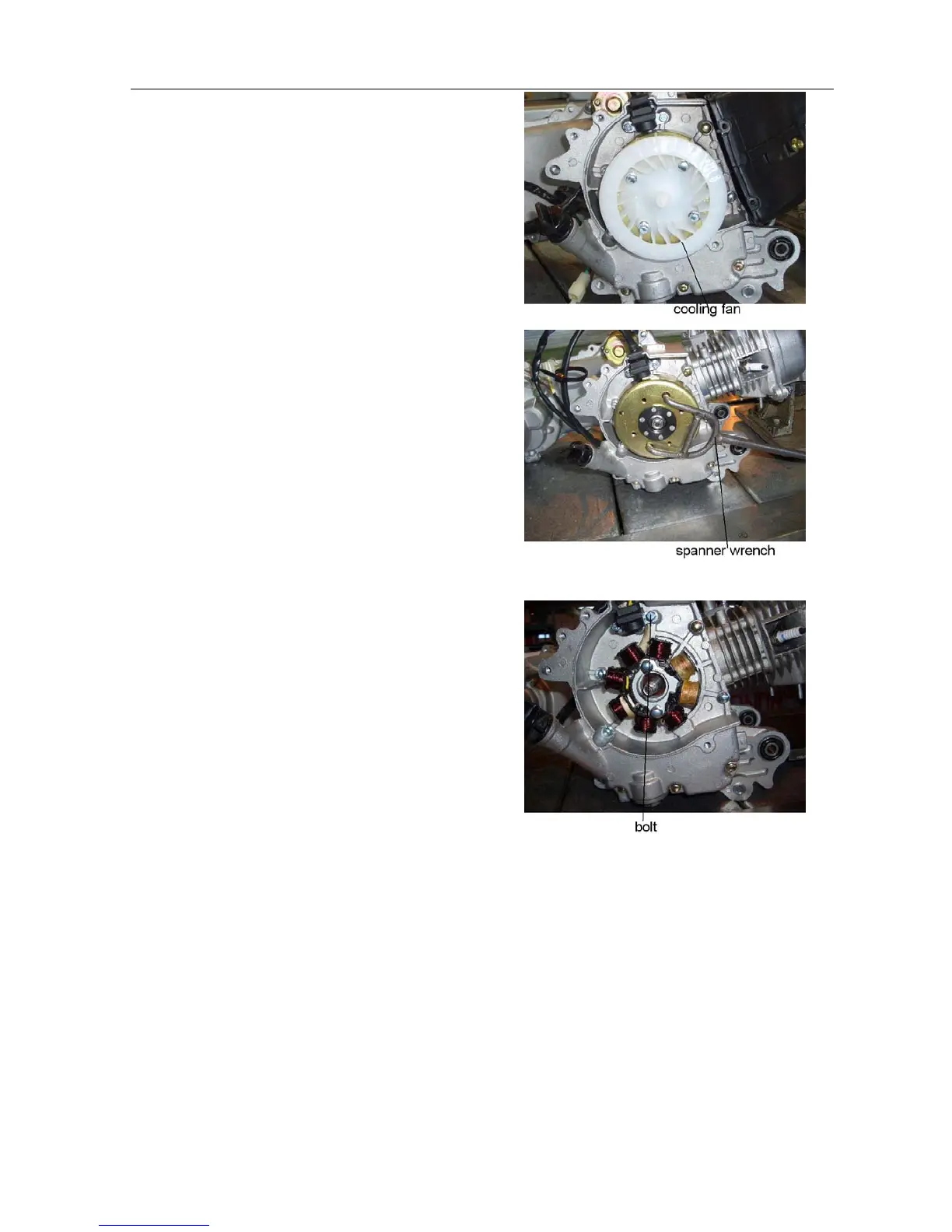

Remove the four bolts and remove the cooling fan.
Use a universal solid wrench to secure the
flywheel. Detach the fix nuts of the flywheel.
Use a spanner wrench hold fly wheel while
removing the retaining nut.
Use a fly wheel puller to remover the flywheel.
Remove and save the key.
Detach the stator of the magneto.
Remove the bolts of the triggering coil.
Remove the rubber sleeve of the magneto wire
from the right crankcase..
Remove the triggering coil.
3.10.2 Assembling
