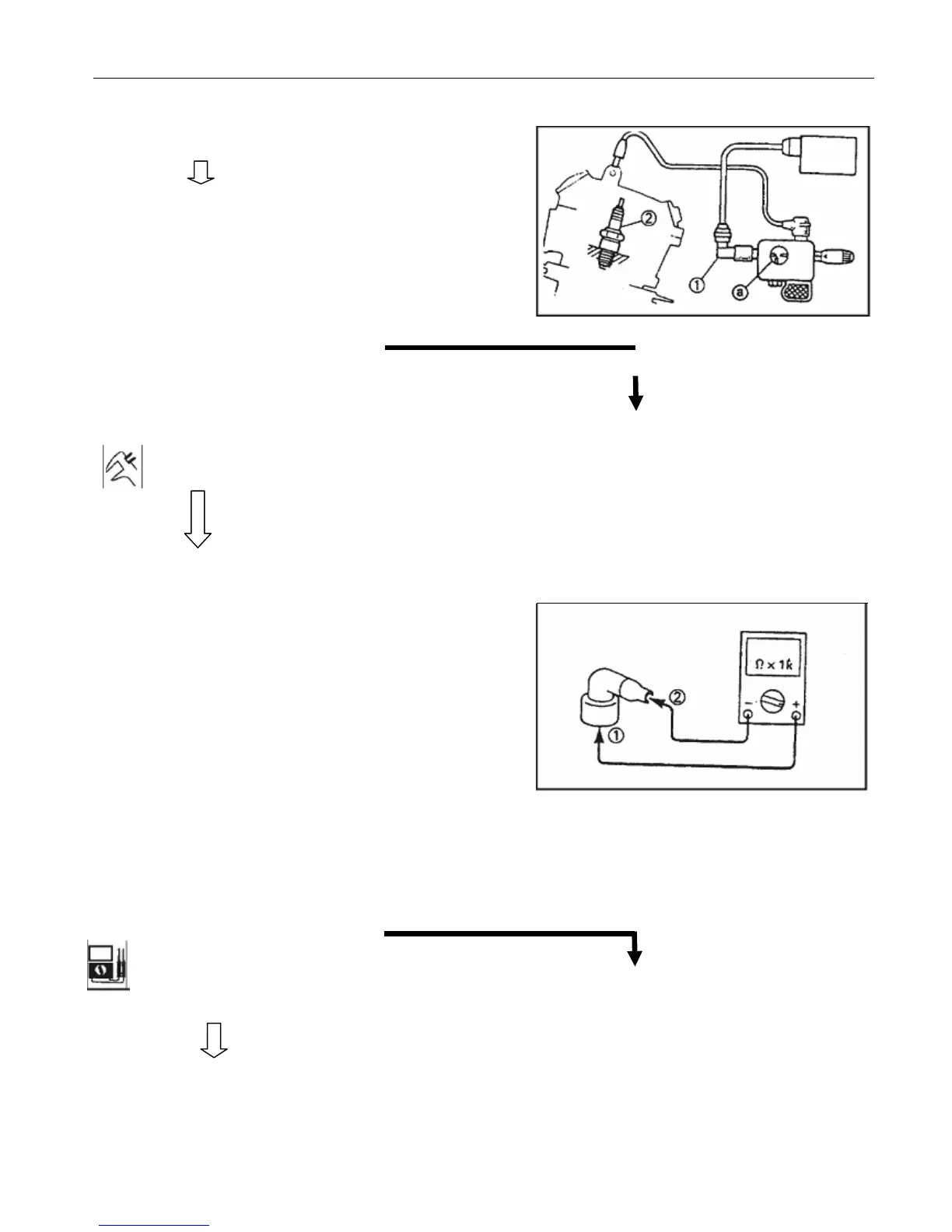

4.lgnition spark gap
MEETS SPECIFICATION
z Disconnect the spark plug cap from the
spark plug
zConnect the ignition tester 1 as shown.
2 Spark plug
zTurn the main switch to "ON".
zCheck the ignition spark gap .
zCheck the spark by pushing the
starter switch, and increase the spark
gap until a misfire occurs.
The ignition system is not faulty.
Minimum spark gap:
6mm (0.24 in)
OUT OF
SPECIFICATION
OR
NO SPARK
5.Spark plug cap resistance
Tester (+) lead →
Spark plug sidec
Tester (—) lead→
High tension cord side d
zRemover the spark plug cap.
zConnect the pocket tester (ΩX1 k) to
the spark plug cap.
NOTE:
z When removing the spark plug cap.
do not pull the spark plug cap from
high tension cord.
zRemove→Turning
counterclockwise
zConnect→Turning clockwise.
zCheck the high tension cord
when connecting the spark
plug cap.
z When connecting the spark plug cap,
cut the high tension cord about 5mm.
OUT OF SPECIFICATION
Replace the spark plug cap
Spark plug cap
resistance:
5KΩ(20 )℃
CORRECT
*
