CHAPTER 3A ENGINE 260/ 300 / 400 cc ATV SERVICE MANUAL09.0
CHAPTER 3 ENGINE PAGE. 3A- 43

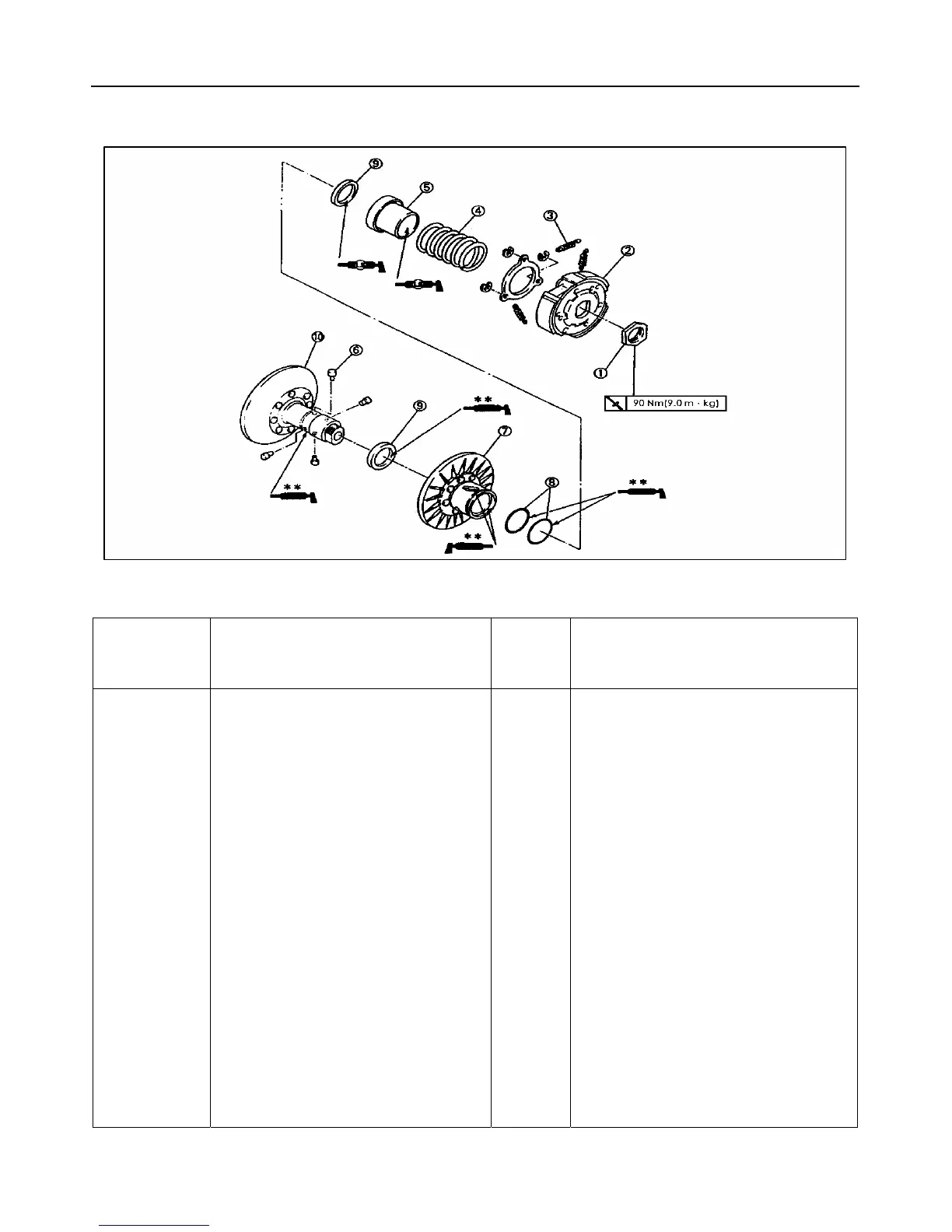

SECONDARY SHEAVE
**Apply lightweight lithium-soap base grease
Order Job name / Part name Q ’ty Remarks
Secondary sheave disassembly Disassemble the parts in order.
1
Nut
1
2
Clutch carrier
1 Refer to "SECONDARY SHEAVE
3
Clutch shoe spring
3 DISASSEMBLY" section.
4
Compression spring
1
5
Spring seat
1
Refer to "SECONDARY SHEAVE
6
Guide pin
4
INSTALLATION " section .
7 Secondar
y
slidin
g
sheave
1
8 O-ring
2
Refer to "SECONDARY SHEAVE
9 Oil seal
2
INSTALLATION" section.
10
Secondary fixed sheave
1
Reverse the disassembly
procedure for assembly.
