CHAPTER 4A
CHASSIS
A
T
V 260 / 300 /400 and B-T
ype/A
T
V400-2/400-2B
A
TV SERVICE MANUAL 09.0
C
H
A
P
T
E
R
4
A
C
H
A
S
S
I
S
P
A
G
E
.
4
A
-
7

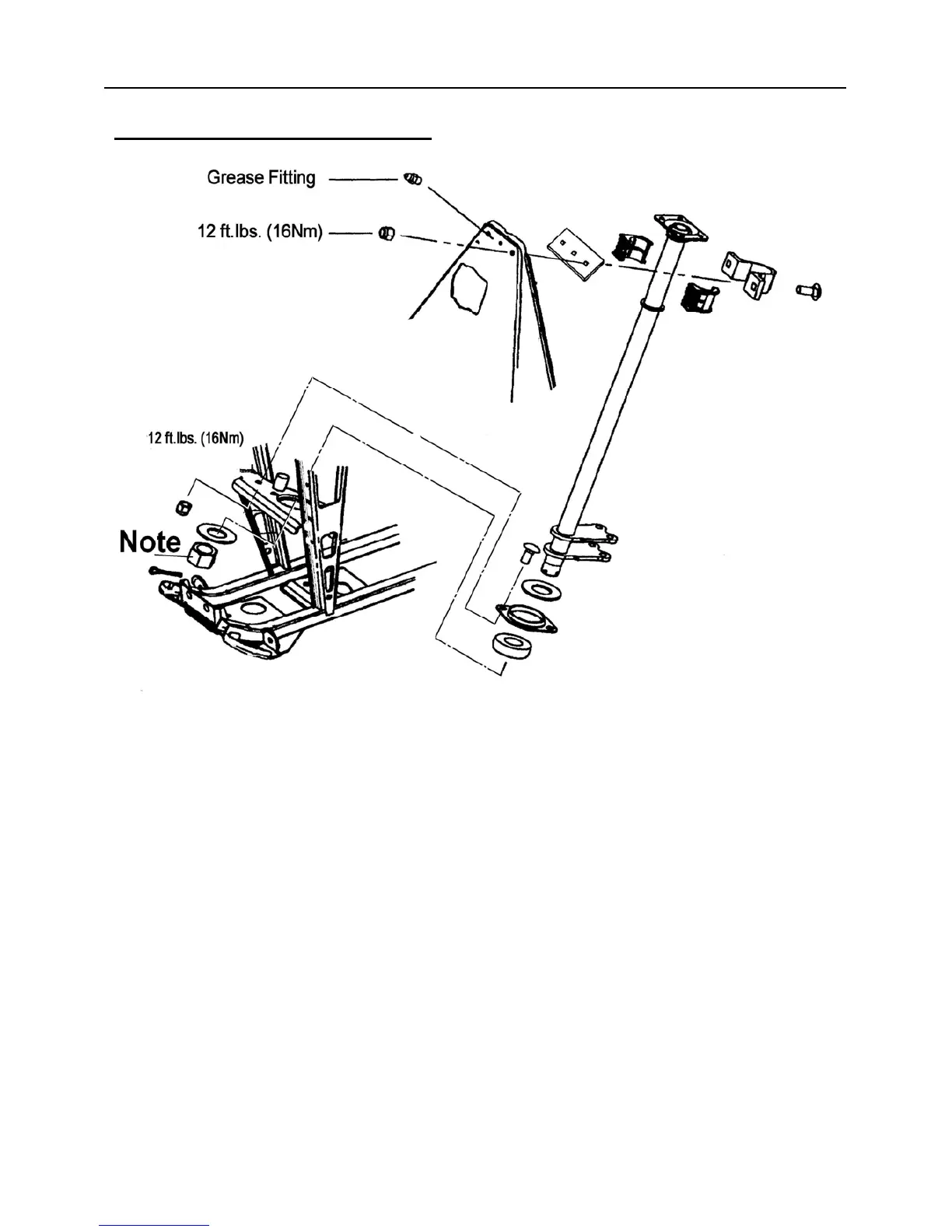

4.5 STEERING POST
ASSEMBL
Y
Note:
1, Hand tighten the crown
nut of the steering post.
2,
Align cotter pin hole.
3, Install cotter pin. Bend both ends of co
tter pin around nut in opposite directions.
4, Check steering, must move freely and easily
from full left to full
right without binding.
