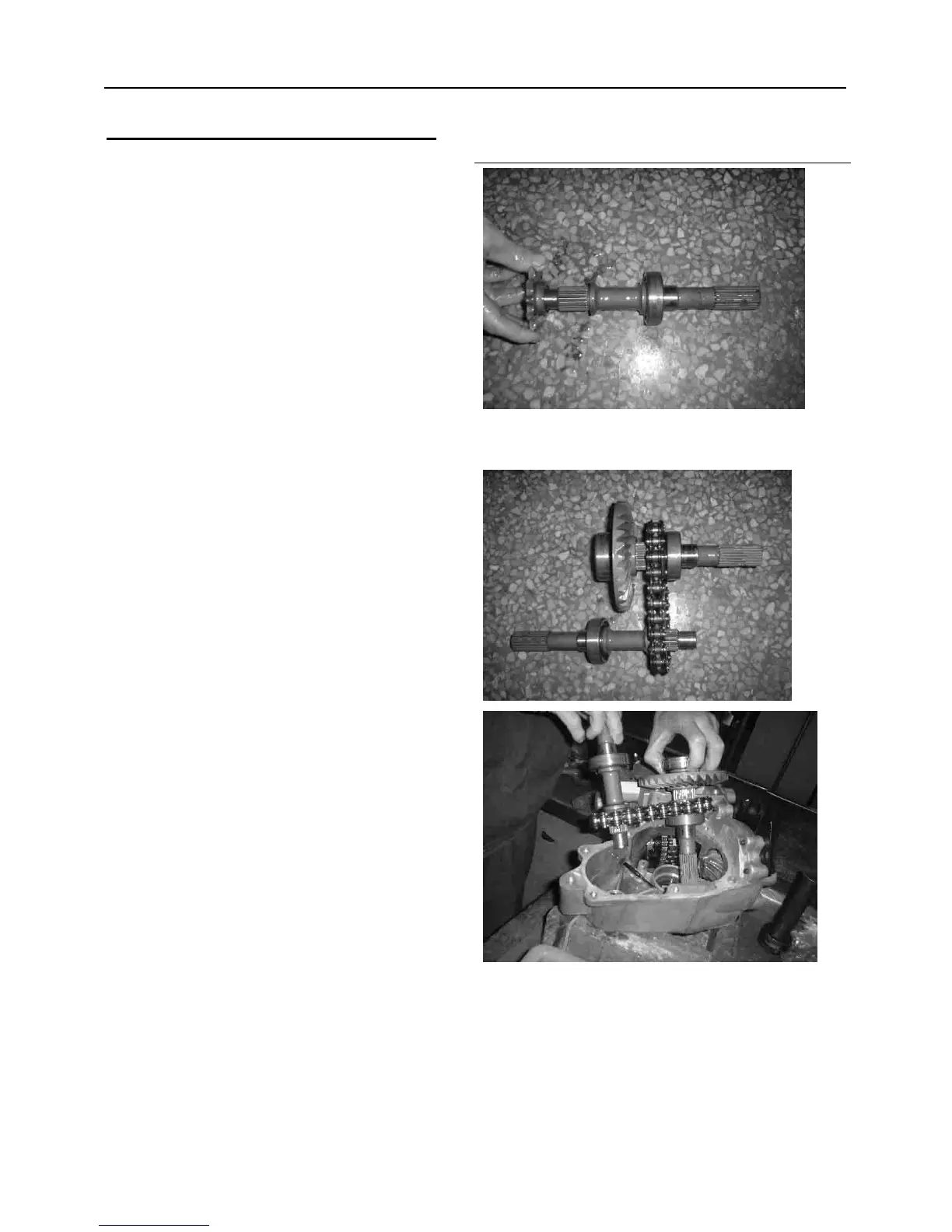

6.9 TRANSMISSION ASSEMBLY
1. Install sprocket on front output shaft with
sprocket step side inward as shown (only
for 4X4).
2. Assemble front ( only for 4X4).and rear
output shafts
3. a. (4X4) Install front and rear output shafts
with chain as an assembly.
3．b. (2X4) Install rear output shaft.
4. Before installing the cover make sure the
sealing surfaces are clean and dry, and
shafts are fully seated in the transmission
case. Apply silicon glue to mating surfaces.
5. Reinstall cover and torque bolts in a criss-
cross pattern in 3 steps to 14 ft. lbs. (20
Nm).
