CHAPTER 8 ELECTRICAL ATV SERVICE MANUAL 09.0
CHAPTER 8 ELECTRICAL CTRICAL PAGE 8-
38

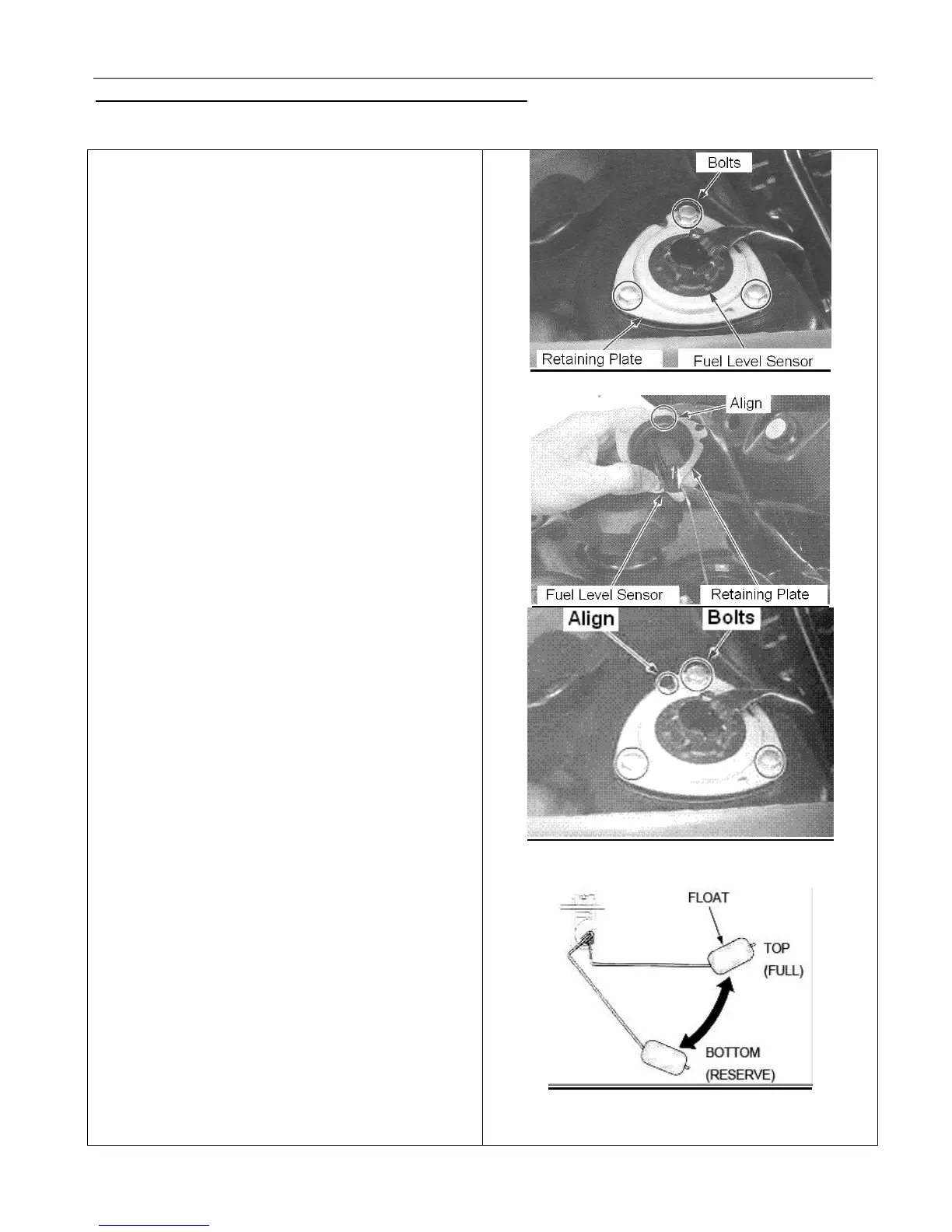

8.12 FUEL GAUGE/ FUEL LEVEL SENSOR
Removal
Turn the ignition switch to“OFF”.
Remove the fuel tank cover.
Remove the three bolts, retaining plate and fuel
level sensor from the fuel tank.
Installation
Install a new seal rubber onto the fuel level
sensor.
Install the retainer plate onto the sensor by
aligning the tab with the grove.
Install the sensor into the fuel tank while aligning
the grove in the plate with the boss on the fuel
tank.
Install and tighten the bolts securely.
Install the removed parts in the reverse order of
removal.
Fuel Gauge / Fuel level Sensor Inspection
Move the float to the bottom (RESERVE)
position, turn the ignition switch to“ON”and
check the fuel gauge.
To Next Page
