CHAPTER
5
FINAL
DRI
VE
A
T
V
S
E
R
V
I
C
E
M
A
N
U
A
L
0
9
.
0
C
H
A
P
T
E
R
5
F
I
N
A
L
D
R
I
V
E
.
5
-
30

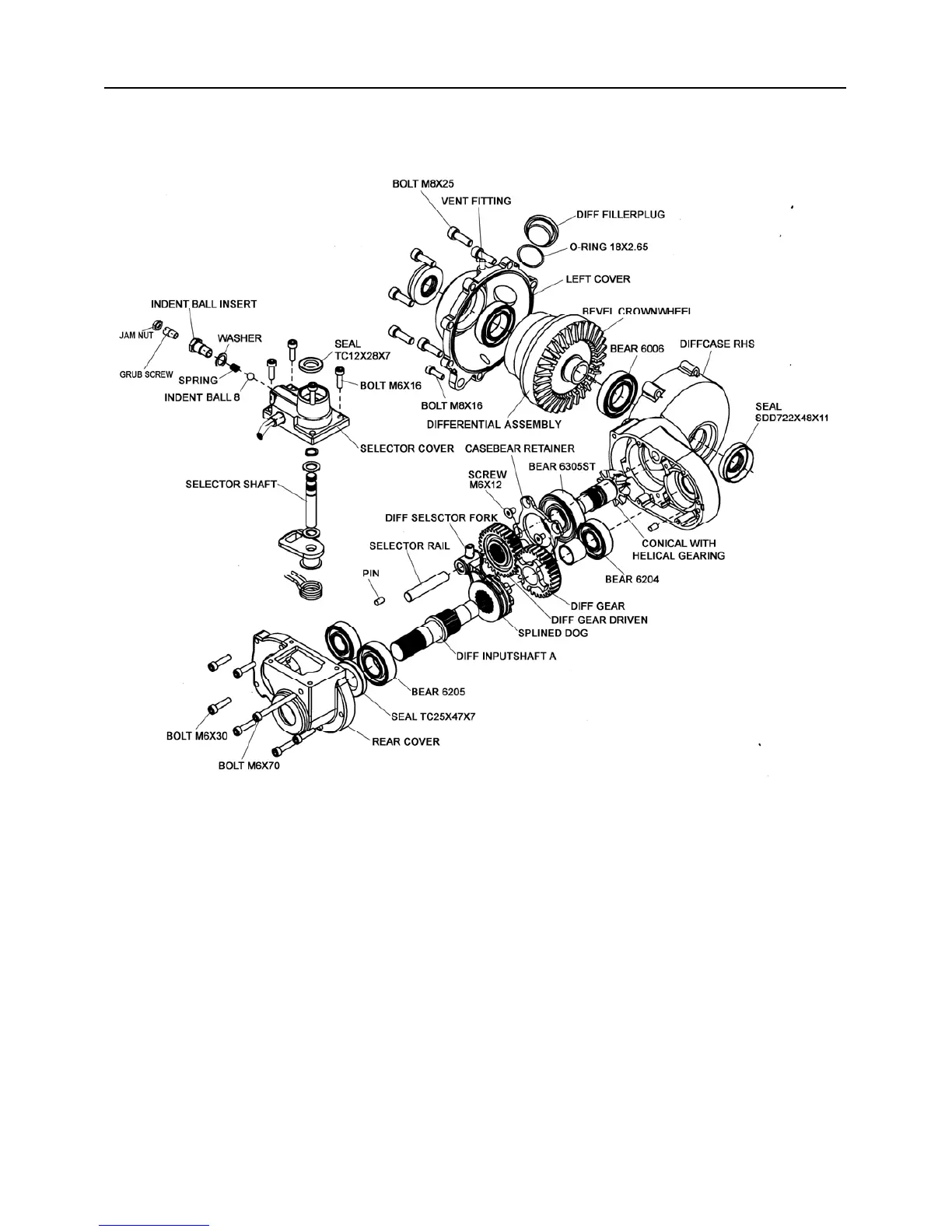

FRONT GEARCASE EXPLODED VIEW
TROUBLE SHOOTING
Symptom: Gears won’t stay in
position when shif
t 2WD/ 4WD.
Solution: Increase the preload to indent ball by
turning the grub screw or change a new spring.
Note:
Make sure not to over press the spring by
shifting 2WD/ 4WD. Remember to tighten the
jam nut on the grub screw
.
276
