CHAPTER 5 FINAL DRIVE ATV SERVICE MANUAL 09.0
CHAPTER 5 FINAL DRIVE. 5-
19
rough spots, discoloration, or corrosion.
The bearings should turn smoothly and
quietly, with no detectable up and down
movement and minimal movement side
to side .
5. Clean pinion shaft and snap ring and
apply Loctite™ 242 to threads. Tighten
lock nut to specification.

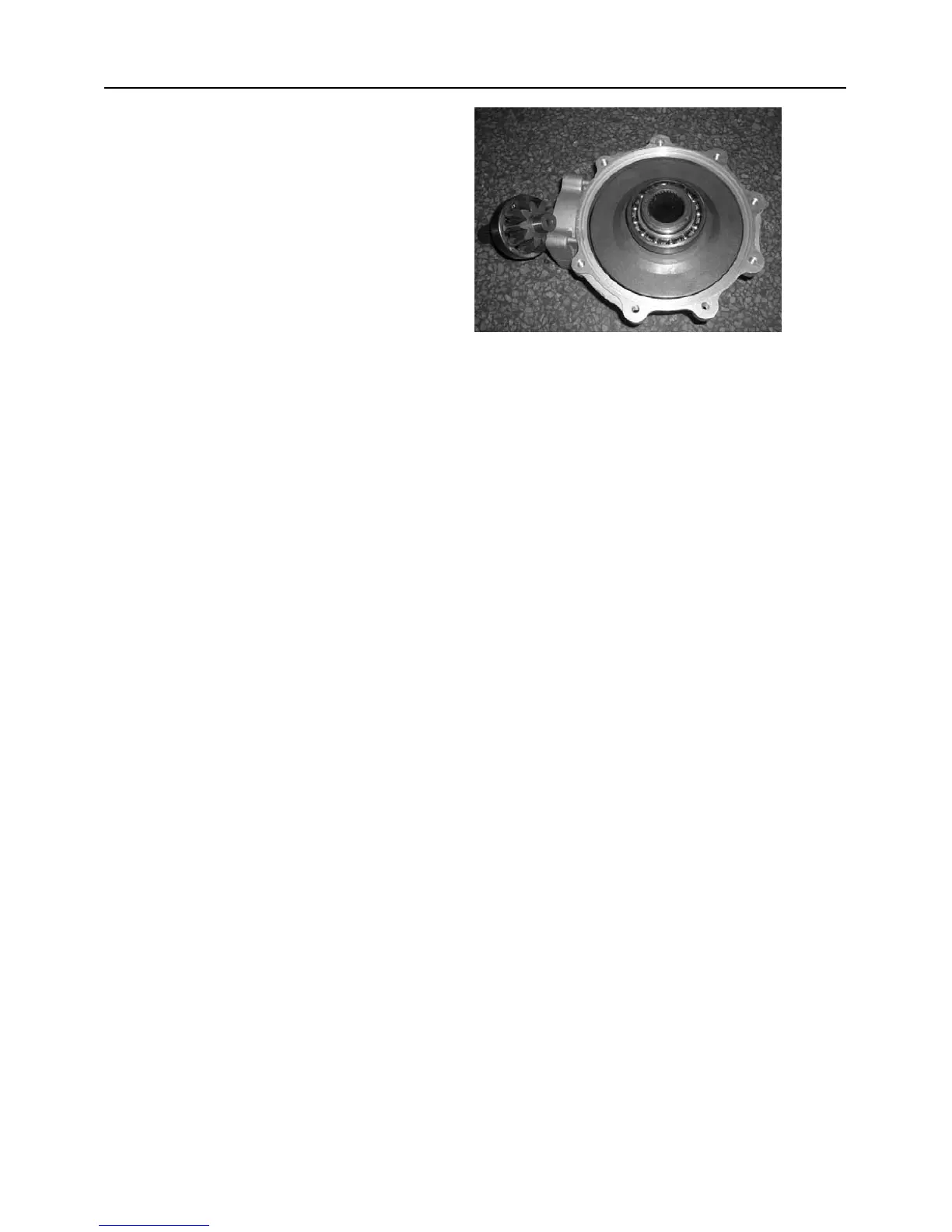

6. Install pinion shaft and input cover plate
with new o- ring and torque bolts to 14
ft. lbs.
Cover Bolts Torque
14ft.lbs.(20 Nm)
7. Install ring gear assembly
NOTE
The same shim thickness placed behind ring
gear bearing must also be put behind the
cover button.
8. Install out put cover with new o- ring and
torque bolts to 14 ft. lbs.
Cover Bolts Torque
14ft.lbs.(20Nm)
REAR GEARCASE EXPLODED VIEW
