CHAPTER 3B ENGINE 50cc/80cc ATV SERVICE MANUAL09.0
CHAPTER 3B ENGINE PAGE 3B - 31 -
Checking

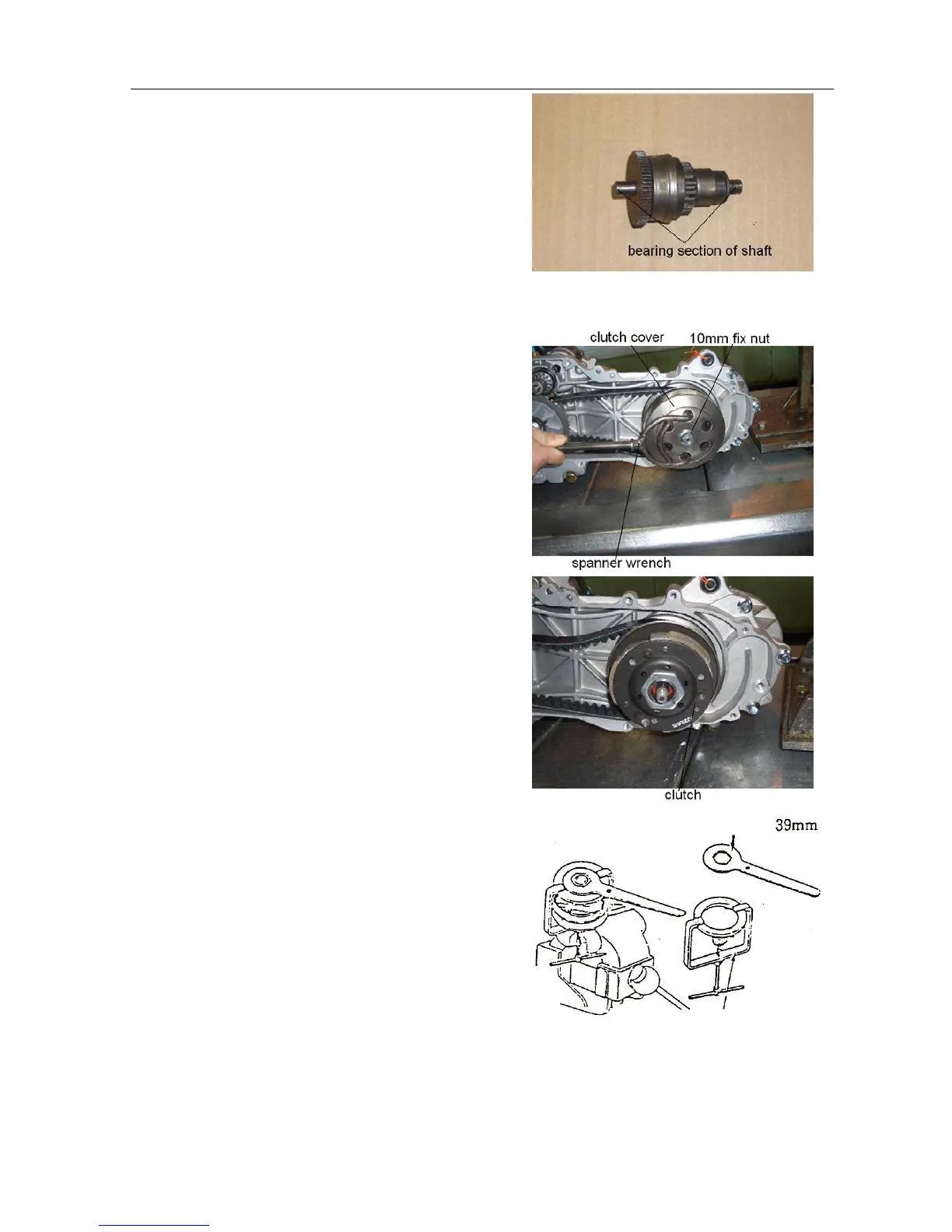

Check if the bearing part of the overrunning clutch
shaft is worn.
Check if the clutch runs smoothly.
Check the wear of the gear and the bearing part of
the shaft.
Assembling
Lubricate the bearing part of the clutch shaft with a
bit of grease. Assemble it in the opposite sequence
of removal.
3.4.7 The clutch/transmission pulley
Removing the clutch/transmission pulley
Remove the driving pulley
Then, use a spanner wrench to hold the clutch
housing to screw out the 10mm nut.
Remove the clutch housing.
Remove the clutch/transmission pulley.
Remove the driving belt from the
clutch/transmission pulley.
Disassembling the clutch/ transmission
pulley
Use a spring compressor for the clutch spring to
press down the transmission pulley spring to
remove the special nut (28mm).
Remove the clutch spring.
