CHAPTER 3C ENGINE 100/125/150/200 SERVICE MANUAL09.0
CHAPTER 3C ENGINE PAGE.3C - 16 -

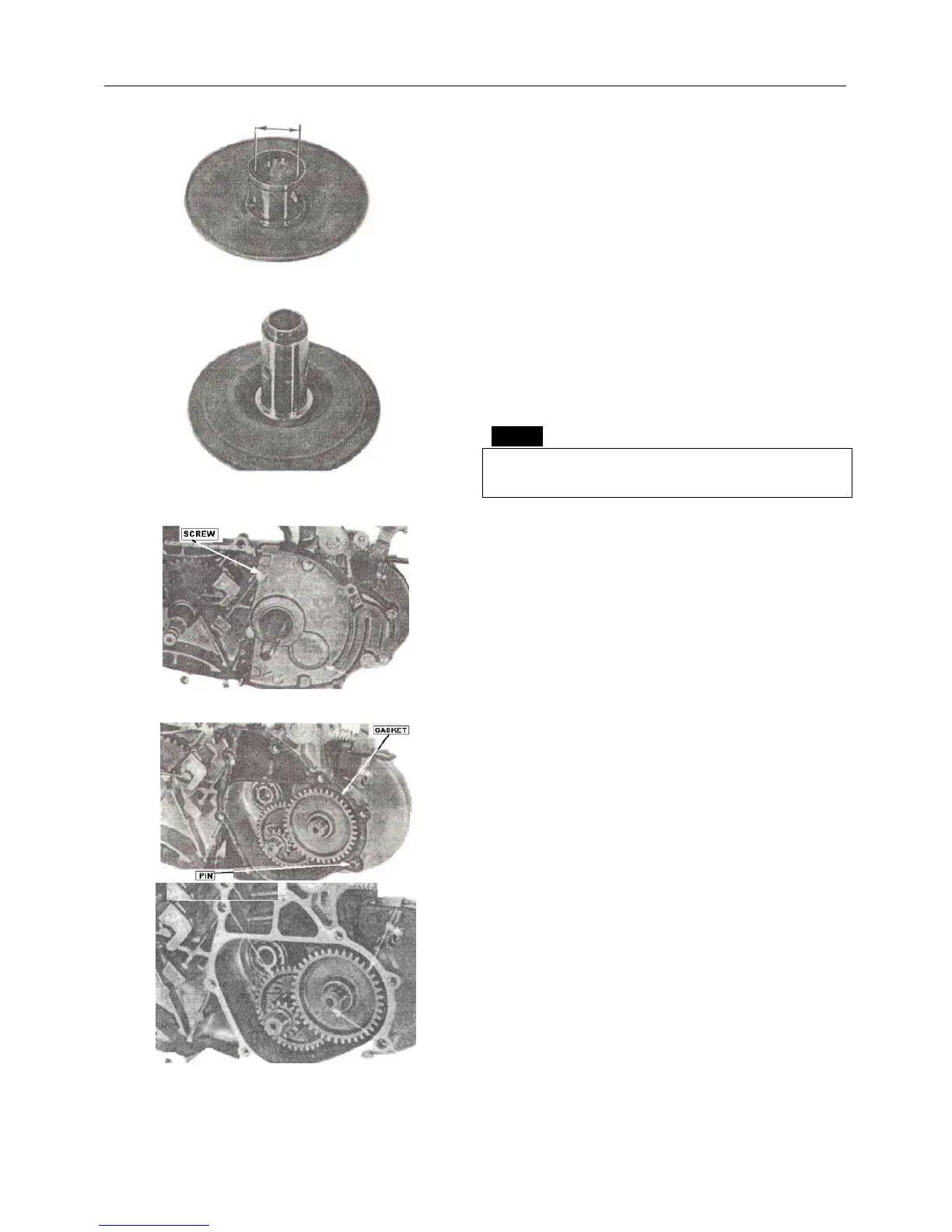

20. Check secondary sliding sheave wear.
Measure its shaft inside diameter.
Limit ：34.06mm
21. Check secondary fixed sheave wear.
Measure its shaft diameter.
Limit ： 33.94mm
Install them in the reverse order of removal.
NOTE:
Never smear grease to the V-belt, secondary
sheave and clutch.
3.4.4Transmission (for MINI ATV100/150)
1. Remove drain cock to drain transmission oil.
2. Remove transmission case cover.
4. Remove gasket and dowel pins.
5. Remove middle gear set, secondary driven gear
and secondary driven axle. Check each for wear.
6. Inspect axles for proper operation. Check if
secondary driven axle oil seal is abnormal. If so,
replace.
