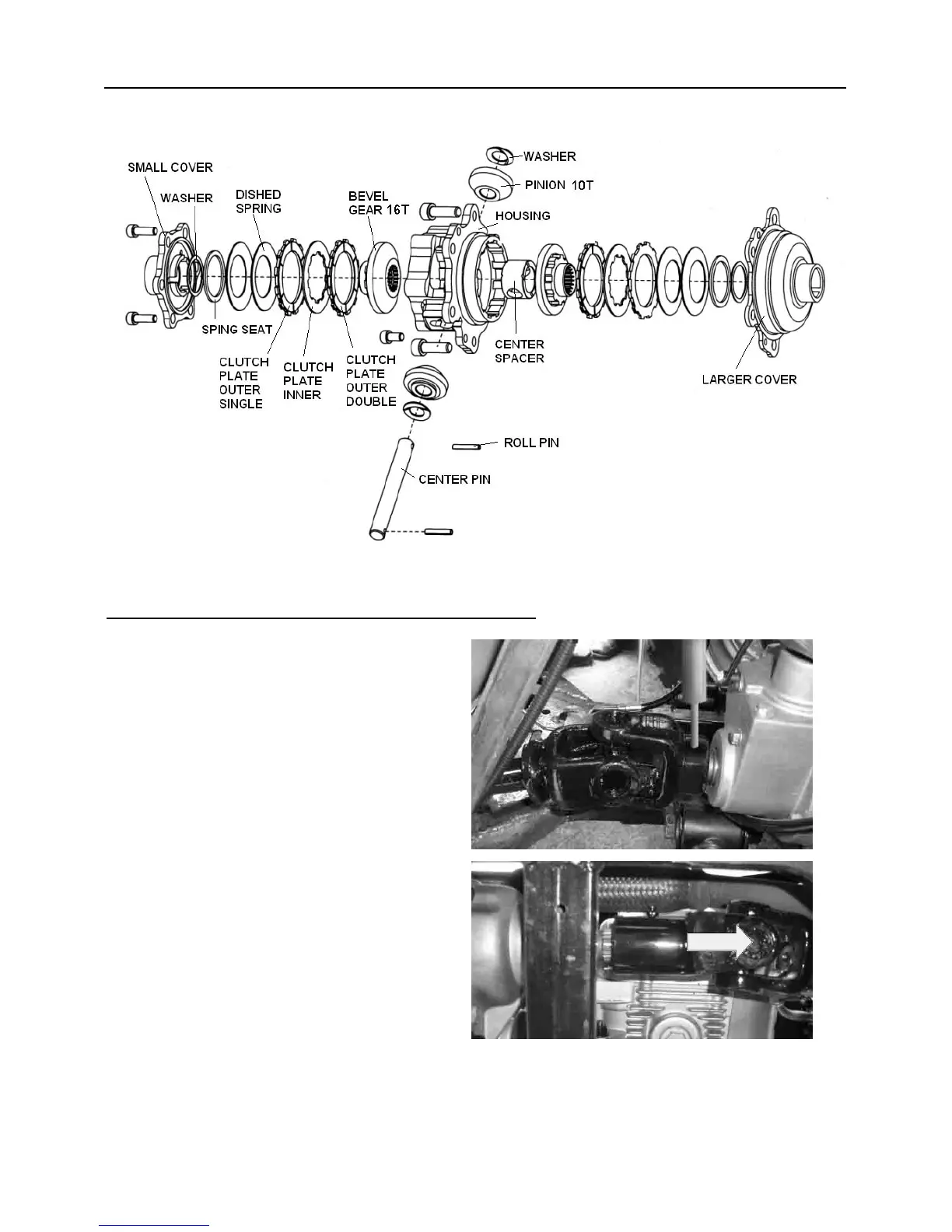

DIFFERENTIAL CENTRE EXPLODED VIEW
5.21 REAR, FRONT PR
OP SHAFT REMOV
AL
Using roll pin remover
, remove the roll pin
from prop shaft
Slide the prop shaft back and away from the
gear case. (The swing arm must be
disassembly from the
frame before the rear
prop shaft removal).
