CHAPTER 8 ELECTRICAL ATV SERVICE MANUAL 09.0
CHAPTER 8 ELECTRICAL CTRICAL PAGE 8-
22

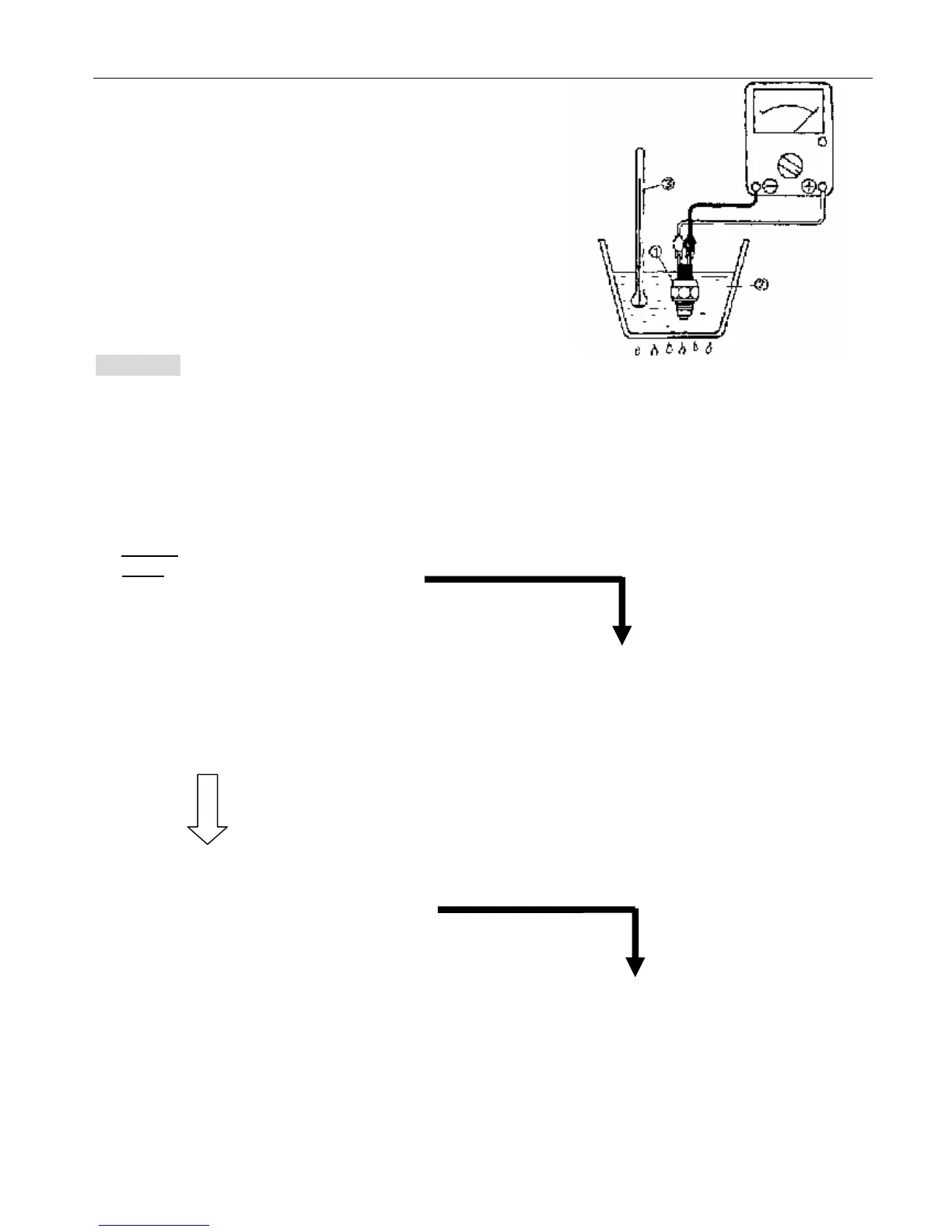

6. Thermo switch
Remove the thermo switch from the
radiator.
zConnect the pocket tester (ΩX1) to the
thermo switchc.
zImmerse the thermo switch in the
water d
zCheck the thermo switch for continuity.
NOTE:
Measure temperatures while heating the
coolant with the temperature gauge
WARNING
zHandle the thermo switch with special
care.
Never subject it to strong shocks or
allow it to be dropped. Should it be
dropped, it must be replaced.
zDo not touch the thermo switch to the
bottom of the heated vessel.
88±3℃Thermo switch “ON”
80 ℃Thermo switch “OFF”
OUT OF SPECIFICATION
Replace the thermo switch
Wring connection
zCheck the connection of the entire
cooling system.
Refer to “CIRCUIT DIAGRAM”
UPPER CONNECTION
Correct
To Next Page
