CHAPTER 3A ENGINE 260/ 300 / 400 cc ATV SERVICE MANUAL09.0
CHAPTER 3 ENGINE PAGE. 3A- 29

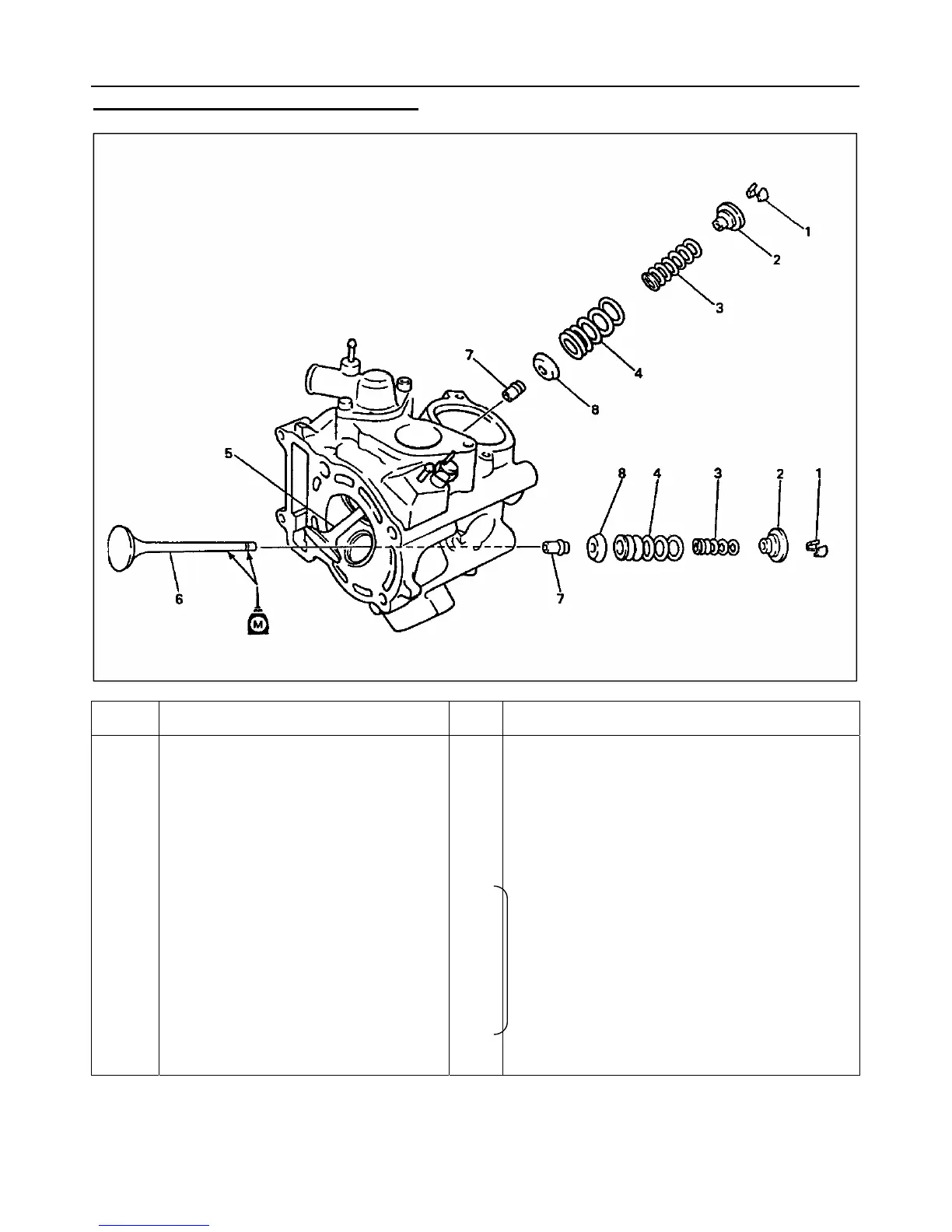

3.5VALVES AND VALVE SPRINGS
Order Job name / Part name Q ’ty Remarks
1
2
3
4
5
6
7
8
Valves and valve springs removal
Cylinder head
Rocker arm , rocker arm shaft
Valve cotters
Spring retainer
Valve spring (inner)
Valve spring (Outer)
Valve (intake)
Valve (exhaust)
Valve guide
Spring seat
4
2
2
2
1
1
2
2
Remove the parts in order.
Refer to "CYLINDER HEAD " section .
Refer to "ROCKER ARM SHAFT AND
ROCKER ARMS" section.
Refer to "VALVES AND VALVE SPRINGS
REMOVAL/INSTALLATION" section.
Refer to "VALVES AND VALVE SPRINGS
INSTALLATION" section
Reverse the removal procedure for installation
