CHAPTER 3A ENGINE 260/ 300 / 400 cc ATV SERVICE MANUAL09.0
CHAPTER 3 ENGINE PAGE. 3A- 50
3.8A.C. MAGNETO AND STARTER CLUTCH

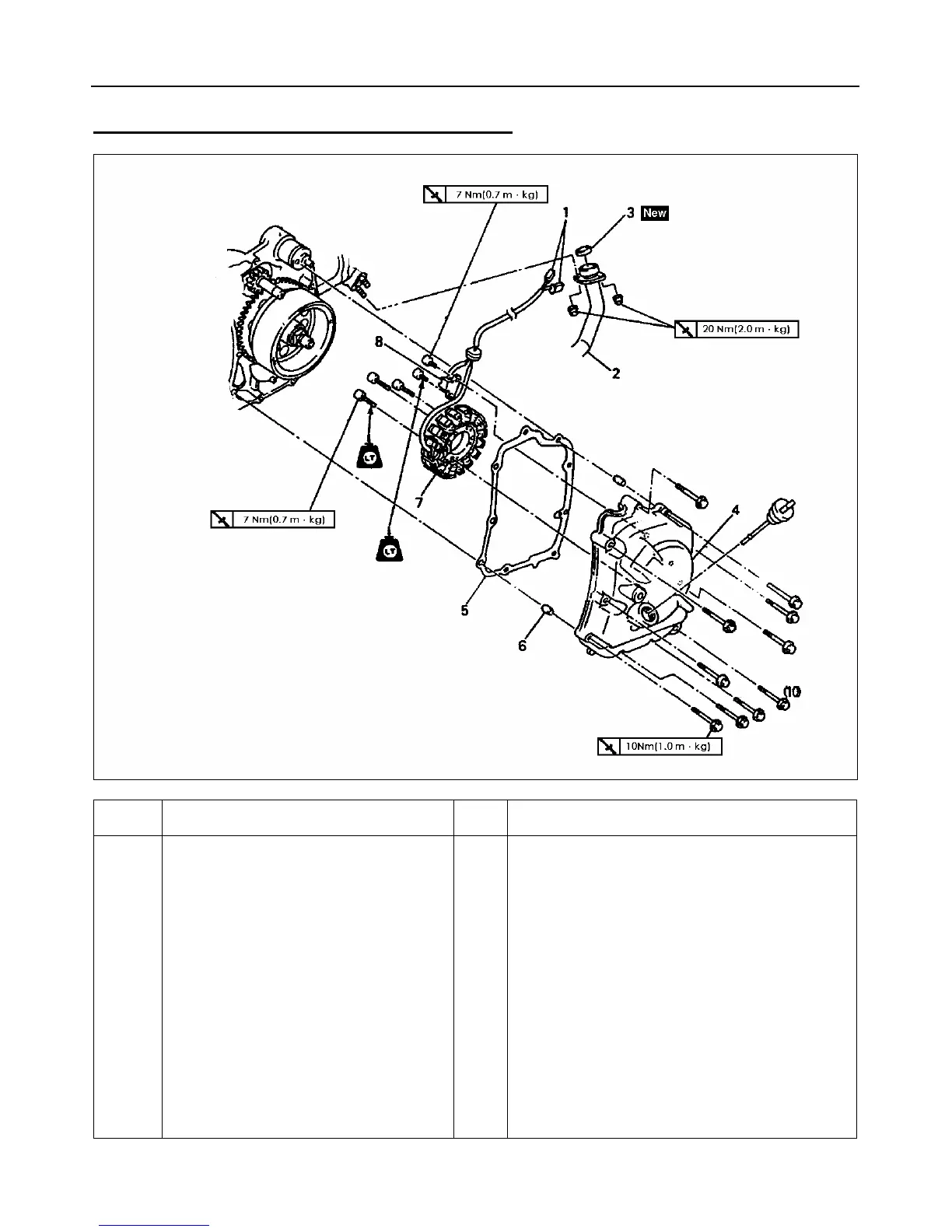

MAGNETO COVER AND STATOR COIL
Order Job name/ Part name Q'ty Remarks
Magneto cover and stator coil
removal
Drain the engine oil.
1 Couplers (A.C. magneto lead) 2
2 Exhaust pipe 1
3 Exhaust pipe gasket 1
4 Magneto cover 1
5 Gasket (magneto cover) 1
6 Dowel pins 2
7 Stator coil 1
8 Pick up coil 1
Remove the parts in order.
Refer to "ENGINE OIL REPLACEMENT"
section.
NOTE:
Disconnect the couplers.
Reverse the removal procedure for
installation.
