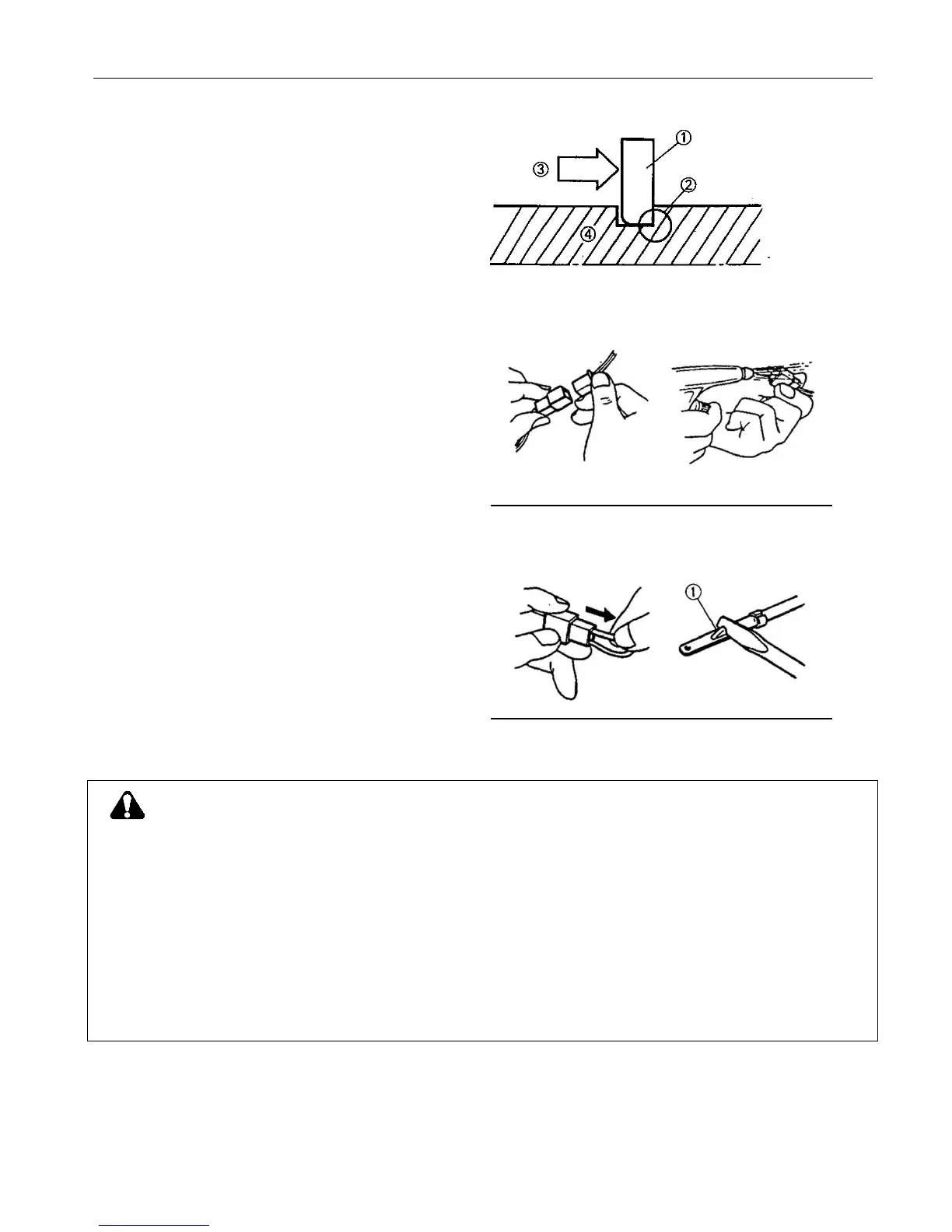

Always replace piston pin clips after one use.
Replace distorted circlips. When installing a
circlip①, make sure that the sharp-edged
corner ② is positioned opposite the thrust
③ it receives. See sectional view.
④Shaft
CHECKING OF CONNECTIONS
Dealing with stains, rust, moisture, etc. on the
connector.
1. Disconnect:
z Connector
2. Dry each terminal with an air blower.
3. Connect and disconnect the connector two or
three.
4. Pull the lead to check that it will not come off.
5. If the terminal comes off, bend up the pin ①
and reinset the terminal into the connector.
6. Connect:
z Connector
NOTE:
The two connectors ” click ” together.
7. Check for continuity with a tester.
NOTE:
z If there is no continuity, clean the terminals.
z Be sure to perform the steps 1 to 7 listed
above when checking the wire harness.
z Use the tester on the connector as shown.
WARNING
Never run an engine in an enclosed area. Carbon monoxide exhaust gas is poisonous and
can cause severe injury or death. Always start engines outdoors.
Gasoline is extremely flammable and explosive under certain conditions. Battery electrolyte is
poisonous. It contains sulfuric acid. Serious burns can result from contact with skin, eyes or clothing.
Always keep alert and wear protection..
Exhaust system components are very hot during and after use of ATV. Never service when
the engine is warm or hot. Escaping steam from cooling system or hot oil from the machine can
cause severe burns. The engine must be cool before service.
Crate of the ATV and parts in the ATV maybe have sharp edge, always pay attention and wear
protection.
