CHAPTER 7 BRAKES ATV SERVICE MANUAL 09.0
CHAPTER 7 BRAKES PAGE. 7-
5
Maintain at least 1/2 " (13mm of brake fluid in
the reservoir to prevent air from entering the
master cylinder.
10. Tighten bleeder screw securely and
remove bleeder hose.
11. Repeat procedure steps 5- 9 for the
remaining caliper (s).

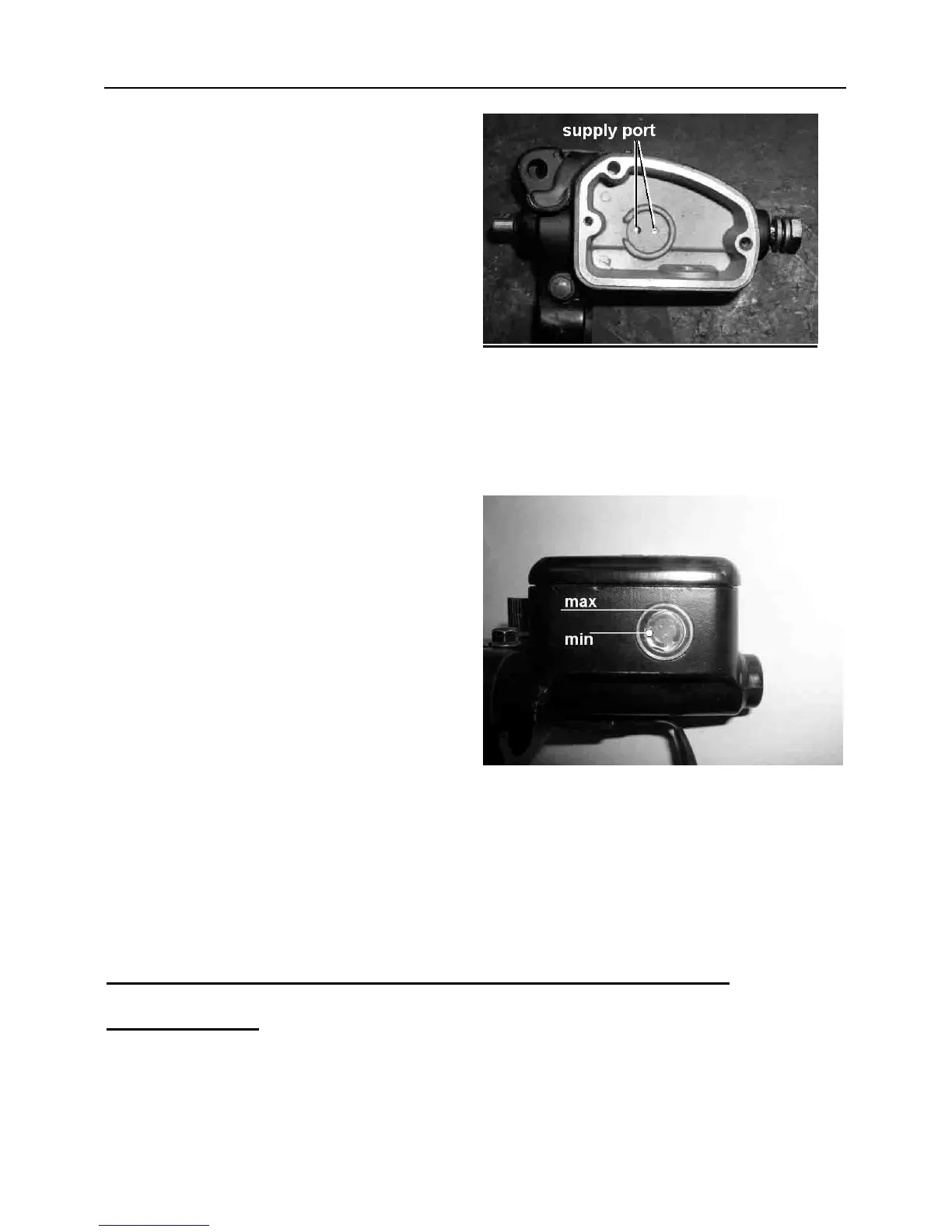

12. Add brake fluid to MAX level on reservoir.
Master Cylinder Fluid Level:
MAX level or
Sight glass must look dark, if sight glass
is clear, fluid level is too low.
13. Install diaphragm, cover and screws.
Tighten screws to specification.
14. Field test machine at low speed before
putting into service. Check for proper
braking action and lever reserve. With
lever firmly applied, lever reserve should
be no less than 1/2 " (13mm ) from
handlebar.
15. Check brake system for fluid leaks and
inspect al hoses and lines for wear or
abrasion. Replace hose if w ear or
abrasion is found.
7.6 HAND BRAKE MASTER CYLINDER REMOVAL/ INSPECTION
/INSTALLATION
CAUTION: The master cylinder is a non-serviceable Component; it must be replaced as an
assembly.
