Technical Information

DGC 6xxx

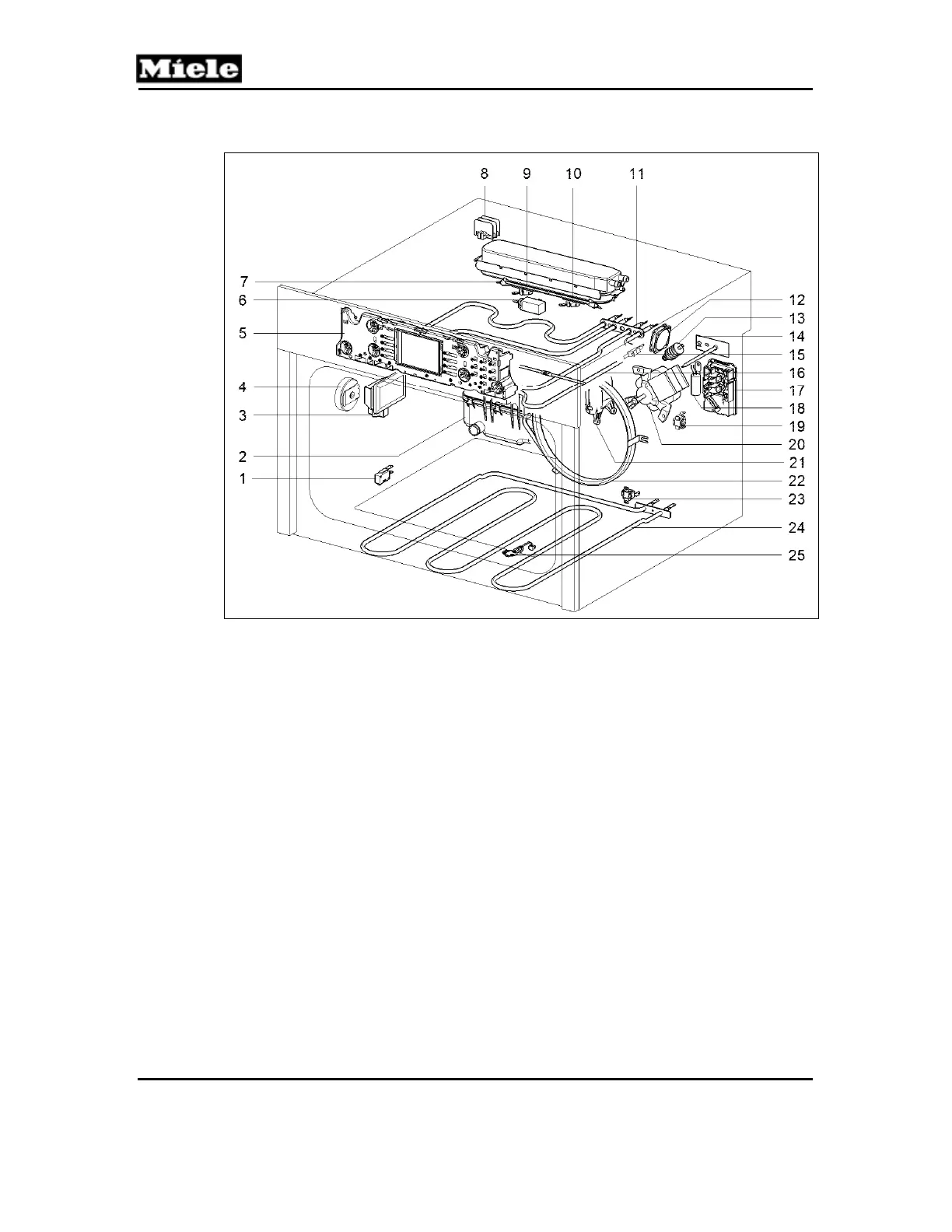

Figure D-3: DGC 6500/6600 Cavity and Heating Components

(S24) Door contact switch

(M8) Drain pump

(1H3-2) Cavity light

Roast probe socket cover

(N1-2) Control electronic

(M29) Pinch/drain valve

(1R25, 2R25, 3R25) Steam generator heater elements

(X7) Distributor

(1F1-5) Steam generator temperature monitor

(2F1-5) Steam generator temperature monitor

(R15) Broil element

(2M2-1) Heat-flow fan

(2R30-10) Heat-flow temperature sensor (Pt1000)

(1R30-10) Oven Pt1000 temperature sensor

(R30-34) Cool-air Pt1000 temperature sensor

(R13) Top heater element

(X3-1) Terminal block

(Z2) Interference suppression capacitor

(3F1) Convection temperature limiter

(M2-2) Convection fan

(M28) Air flap motor

(R14) Convection heater element

(2F1) Bottom heat temperature limiter

(R12) Bottom heater element

(R30/22) Bottom heat temperature sensor
