Install a new roast probe module EPI 750 with ID 2106 or higher.
3.15 Float Fallen in Water Container
Symptom:
The float or floats as well as the float shaft cover have dropped into the water
container.
Cause:
Float shaft not properly attached to the cover.
Remedy:
Replace the water container.
4 Service
4.1 Lift Motor (M19) Removal
1. Remove the appliance from its housing unit; see Section 010-4.1.
2. Disconnect the appliance from the power supply.
3. Remove the lid; see Section 010-4.2.
4. Remove the two Phillips screws securing the motor; see Figure 040-2,
Item 1.

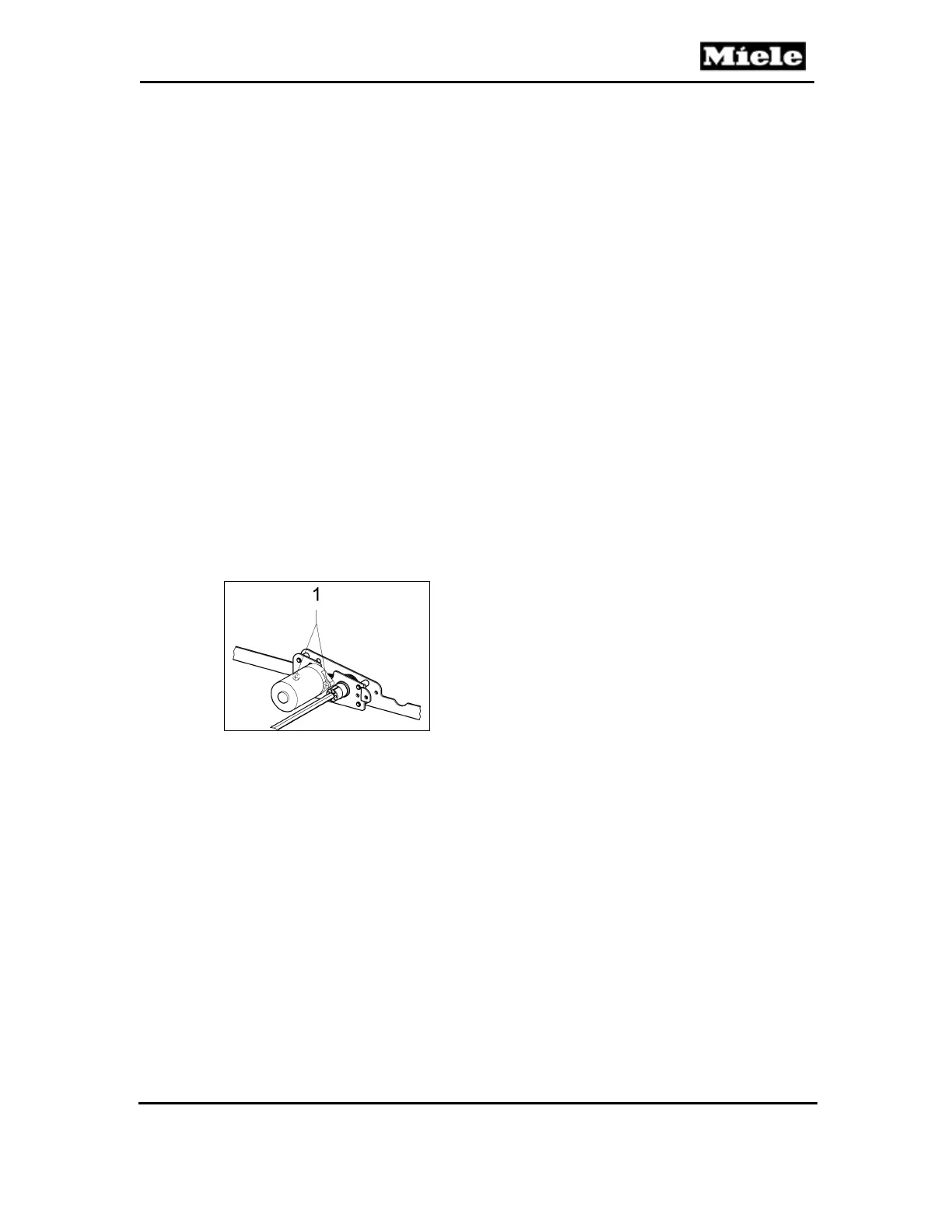

Figure 040-2: Lift Motor Screws
5. Disconnect the motor connections from the power electronic, and the
spade connectors from the blue microswitch.
4.2 Drive Assembly Removal
1. Remove the appliance from its housing unit; see Section 010-4.1.
2. Disconnect the appliance from the power supply.
3. Remove the lid; see Section 010-4.2.
4. Remove both side panels; see Sections 010-4.3 and 010-4.4.
5. Remove the fascia panel; see Section 060-4.4.
6. Remove the lift motor; see Section 040-4.1.
7. Release the black hose from the heat-flow fan housing.
8. Remove the retaining screws located on the underside of the air duct
below the telescopic rails (two T20s per side).
9. Remove the three T20 screws securing each guide rail.
10. Loosen the hose clips and disconnect the hoses from the rear of the
water container.
