Technical Information
38
DGC 6xxx

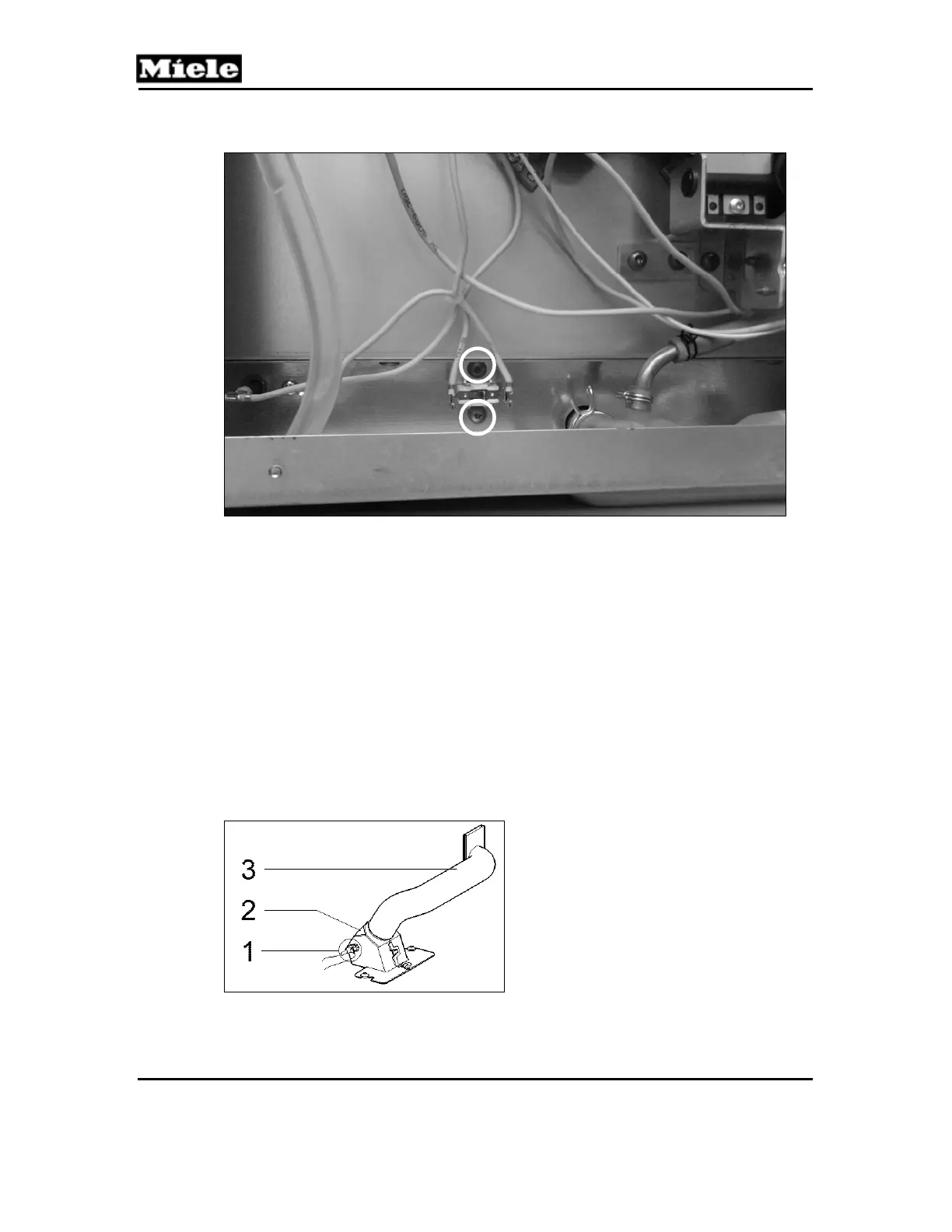

Figure 030-12: Bottom Heat Temperature Limiter
4.8 Cooling-Air Temperature Sensor (R30-34) Removal
1. Remove the appliance from its housing unit; see Section 010-4.1.
2. Disconnect the appliance from the power supply.
3. Remove the lid; see Section 010-4.2.
4. Remove the right side panel; see Section 010-4.3.
5. Remove the rear/left side panel, if necessary; see Section 010-4.4.
6. Pull off the black hose between the cable duct and the heat-flow fan
housing (Figure 030-13, Item 3).
7. Remove the cable duct; see Section 010-4.6.
8. Disconnect the two red wires from the cooling-air temperature sensor
(Figure 030-13, Item 1).
9. Release the cooling-air temperature sensor from the fan housing (Figure
030-13, Item 2).
Figure 030-13: Cooling-Air Temperature Sensor, Heat-Flow Fan Housing and Hose
