Technical Information
19
DGC 6xxx

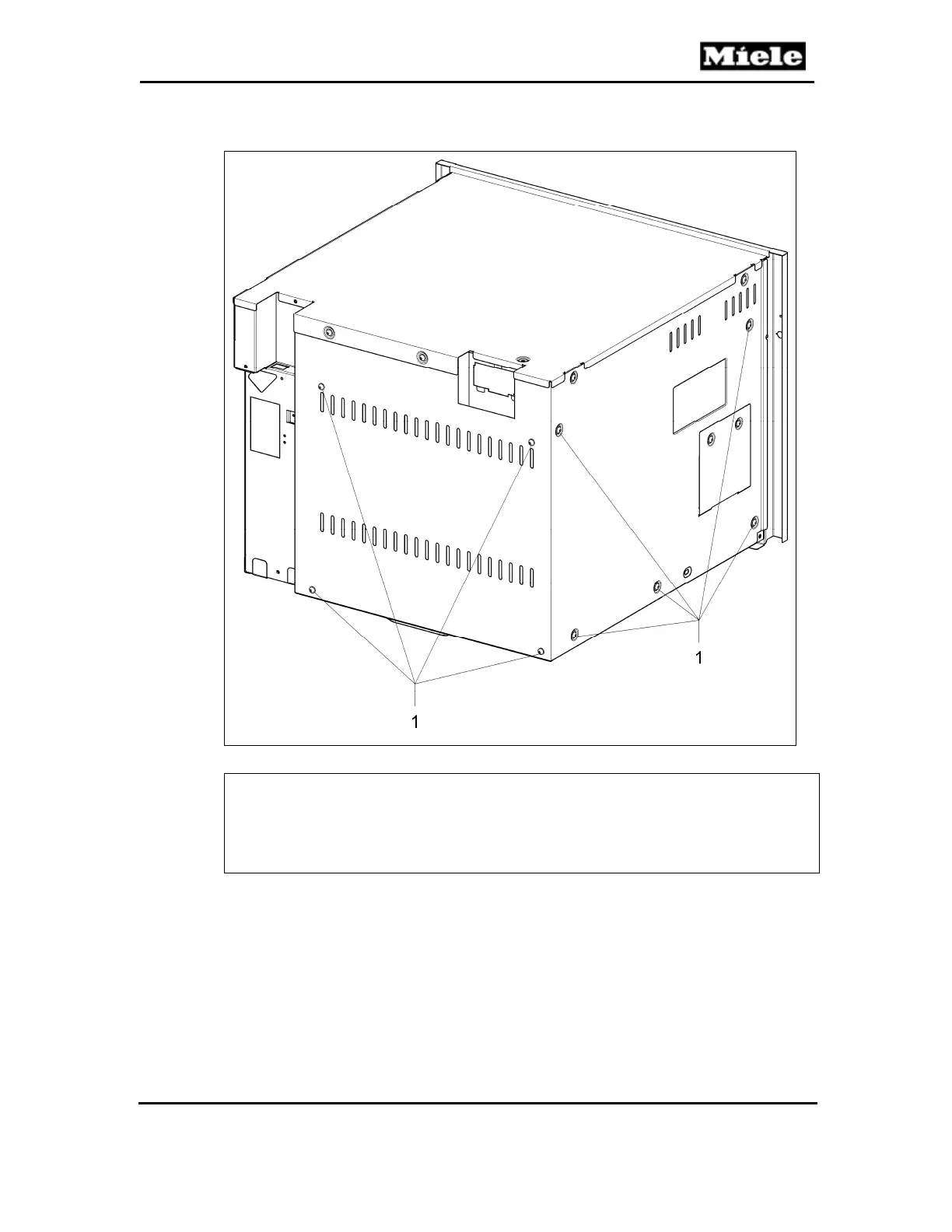

Figure 010-4:
Rear/Left Side Panel Removal
Note:
Some models have a spacer bar attached to the rear panel (see Figure 010-
5). For these models, remove the two T20 screws securing the spacer b
ar,
take the spacer bar off, and then remove the two T20 screws securing t
he
bottom of the rear panel.
18
20
Table of Contents
Table of Contents
2
A Warning and Safety Instructions
9
B Modification History
9
C Technical Data
9
D Layout of Electrical Components
10
Optical Interface
10
Figure D-1: Optical Interface for Diagnostic Support and Program Updating
10
Table C-1: Appliance Information
10
Electrical Components
11
Figure D-2: DGC 6500/6600 Top Components
11
Figure D-3: DGC 6500/6600 Cavity and Heating Components
12
Figure D-4: DGC 670X/680X Top Components
13
Figure D-5: DGC 670X/680X Cavity and Heating Components
14
Casing
15
Function
16
Door Contact Switch (S24)
16
Fault Repair
16
Cleansteel Surface Scratched
16
Service
16
Removal from a Housing Unit
16
Figure 010-1: Removing the Appliance from a Housing Unit
16
Lid Removal
17
Right Side Panel Removal
17
Figure 010-2: Lid Removal
17
Rear/Left Side Panel Removal
18
Figure 010-3: Right Side Panel Removal
18
Figure 010-4: Rear/Left Side Panel Removal
19
Door Contact Switch (S24) Removal
20
Cable Duct Removal
20
Figure 010-5: Spacer Bar on Rear Panel
20
Figure 010-6: Door Switch Removal
20
Figure 010-7: Cable Duct Screws
21
Hinge Replacement
22
Figure 010-8: Hinge Screws (Left Side Shown)
22
Door
23
Service
24
Door Removal
24
Door Disassembly
24
Figure 020-1: Hinge Brackets
24
Figure 020-2: Door Removal
24
Figure 020-3: Corner Bracket
25
Figure 020-4: Holding Strip and Seal Removal
25
Figure 020-5: Inner Panel Removal
25
Door Handle Removal
26
Door Assembly
26
Door Installation
26
Figure 020-6: Middle Panel Removal
26
Figure 020-7: Door Handle Screws
26
Cavity
27
Technical Data
28
Function
28
Heat-Flow Temperature Sensor (2R30-10)
28
Fault Repair
28
Cavity Surface Scratched
28
Table 030-1: Heater Element Data
28
Table 030-2: Oven Light Data
28
Table 030-3: Heat-Flow Temperature Sensor Resistance Chart
28
Noisy Operation
29
Rust on Top Heat/Broil Element
29
Convection Fan too Loud
29
Service
29
Convection Element (R14) Removal
29
Figure 030-1: Inner Rear Panel Retaining Nuts
30
Figure 030-2: Convection Heater Element
30
Top Heat/Broil Element (R13/R15) Removal
31
Figure 030-3: Convection Element Connections and Retaining Nuts
31
Figure 030-4: Top Heat/Broil Element Mounting Bracket Screws
31
Bottom Heater Element (R12) Removal
32
Figure 030-5: Top Heat/Broil Element
32
Figure 030-6: Base Plate Screws
33
Figure 030-7: Bottom Heater Element Retaining Bracket and Temperature Sensor
34
Figure 030-8: Bottom Heater Element Retaining Screw
34
Bottom Heater Element Temperature Sensor (R30/22) Removal
35
Oven Light (1H3-2, 2H3-2) Removal
35
Figure 030-9: Service Panel Screws
35
Convection Heater Temperature Limiter (3F1) Removal
36
Figure 030-10: Lighting Assembly Nuts
36
Bottom Heat Temperature Limiter (2F1) Removal
37
Figure 030-11: Convection Heater Temperature Limiter
37
Cooling-Air Temperature Sensor (R30-34) Removal
38
Figure 030-12: Bottom Heat Temperature Limiter
38
Figure 030-13: Cooling-Air Temperature Sensor, Heat-Flow Fan Housing and Hose
38
Heat-Flow Temperature Sensor (2R30-10) Replacement
39
Figure 030-14: Heat-Flow Fan Housing Screws
39
Figure 030-15: Heat-Flow Temperature Sensor Housing
40
Roast Probe Socket (X5-8) Removal (Model-Dependent)
41
Figure 030-16: Heat-Flow Temperature Sensor Installation
41
Figure 030-17: Temperature Sensor and Seal
41
Roast Probe Antenna (W17) Removal (Model-Dependent)
42
Figure 030-18: Roast Probe Socket
42
Steam Generator, Convection Fan
43
Technical Data
44
Function
44
Cavity Temperature Sensor (1R30-10)
44
Table 035-1: Air Flap Motor Data
44
Table 035-2: Cavity Temperature Sensor Data
44
Table 035-3: Steam Generator Heater Data
44
Table 035-4: Steam Generator Temperature Regulator Data
44
Table 035-5: Convection Fan Data
44
Table 035-6: Drain Pump Data
44
Steam Generator (R25)
45
Pinch/Drain Valve (M29)
45
Figure 035-1: Pinch/Drain Valve
45
Drain Pump
46
Flap Control to Reduce Steam and Regulate Moisture
46
Flap Control
46
Figure 035-2: Drain Pump
46
Air Flap Motor
47
Steam Reduction
47
Air Humidity
47
Heat-Flow Sensor (WFS)
48
Fault Repair
48
Knocking Noises
48
Residual Water in Cavity
49
Hose Kinked
49
Condensate/Drain Hose Cannot be Connected
50
Figure 035-3: Old Hose Positioning
50
Figure 035-4: New Hose Positioning
50
Service
51
Air Flap Motor (M28) Removal
51
Cavity Temperature Sensor (1R30-10) Removal
51
Figure 035-5: Air Flap Motor
51
Drain Pump (M8) Removal
52
Steam Generator (R25) Removal
52
Figure 035-6: Cavity Temperature Sensor Screws
52
Figure 035-7: Drain Pump Removal
52
Figure 035-8: Steam Generator/Mounting Bracket Assembly (Right Side Shown)
53
Convection Fan (M2-2) Removal
54
Figure 035-9: Steam Generator/Mounting Bracket Assembly, Upside down
54
Figure 035-10: Installing the Steam Generator at at Slight Angle
54
Pinch/Drain Valve (M29) Removal
55
Figure 035-11: Inner Rear Panel Screws
55
Figure 035-12: Convection Fan Screws
55
Terminal Block Removal
56
Figure 035-13: Drain Valve Removal
56
Figure 035-14: Terminal Block
57
Water Container, Drive
58
Technical Data
59
Function
59
Fascia Panel
59
Table 040-1: Lift Motor Data
59
Water Tank
60
Water-Tank Filling
60
Fault Repair
60
Fascia Panel Does Not Open
60
Fascia Panel Does Not Open or Close Correctly
60
Fascia Panel Slips down (Water Tank Can be Removed)
61
Water Drips out of the Drawer
61
Fascia Panel no Longer Closes Automatically
61
Powdery Residue Behind Fascia Panel
61
Fascia Panel Is Crooked
62
Float Stuck in Water Tank
62
Fascia Panel Does Not Respond When Sensor Is Pressed
62
Hoses that Are Not Food-Safe Are Being Used
63
Lift Panel Not Holding
63
Guide Rail End Stoppers Difficult to Install
64
Fascia Panel Installed at an Angle
64
Remove Roast Probe
64
Figure 040-1: Leaf Springs on Telescopic Rails
64
Float Fallen in Water Container
65
Service
65
Lift Motor (M19) Removal
65
Drive Assembly Removal
65
Figure 040-2: Lift Motor Screws
65
Water Container Removal
66
Figure 040-3: Cog Wheel Setting
66
Figure 040-4: Water Container Removal
66
Figure 040-5: Water Container Spring
67
Air Duct, Power Electronic
68
Technical Data
69
Function
69
Feed Pump
69
Water Intake
69
Steam Reduction
69
Table 045-1: Cooling-Fan Data
69
Table 045-2: Heat-Flow Fan Data
69
Table 045-3: Feed Pump Data
69
Table 045-4: Inlet Valve Data
69
Fan Run-On
70
Steam Cooling/Combi Cooking
70
Steam Cooking 212°F
70
Table 045-5: Fan Run-On Data
70
Steam Cooking below 212°F
71
Combi Cooking
71
Combination Cooking with Convection Plus
71
Combination Cooking with Browning/Bake
71
Combination Cooking with Broil
72
Care Programs
72
Rinsing
72
Soak
72
Drying
72
Descaling
73
Descaling Cycle
73
Machine Response after a Power Failure
73
Wireless Roast Probe
73
Components
73
Description of "Wireless Roast Probe" System
74
Figure 045-1: Wireless Roast Probe System
74
Figure 045-2: Wireless Roast Probe
74
Frequency Transmission/Reception in the "Wireless Roast Probe" System
75
Use of the Wireless Roast Probe Thermometer
76
Figure 045-3: Inserting the Wireless Roast Probe
76
Measuring the Core Temperature Using Conventional Methods
77
Fault Repair
78
Unsatisfactory Cooking Results, High Water Consumption
78
Programmed Time Changes to a Different Time
78
Relay Clicks Once Per Second
78
No Steam after Bake Function
79
Wireless Roast Probe Malfunctioning
79
Service
80
Cooling-Fan (M2-1) Removal
80
Figure 045-4: Distributor Behind Cooling Fan
80
Heat-Flow Fan (2M2-1) Removal
81
Figure 045-5: Cooling-Fan Screws
81
Figure 045-6: Cooling Fan and Mounting Bracket
81
Feed Pump (M7) Removal
82
Figure 045-7: Heat-Flow Fan Housing Screws
82
Figure 045-8: Heat-Flow Fan Orientation (Top View)
82
Fascia Panel Position Switch (S60) Removal
83
Water Container Switch (B3-17, B3-18, B3-19) Removal
83
Figure 045-9: Feed Pump
83
Figure 045-10: Position Switch Screws
83
Drain Pump Reed Switch (B1-2) Removal
84
Lighting Electronic (N1/10) Removal
84
Figure 045-11: Water Container Switches
84
Figure 045-12: Lighting Electronic
84
Power Electronic (N1-1) Removal
85
Figure 045-13: Bracket in Front of Lighting Electronic
85
Figure 045-14: Power Electronic
85
Inlet Valve Removal
86
Figure 045-15: Inlet Valves
86
Air Duct Removal
87
Figure 045-16: Inlet Valve Mounting Bracket
87
Figure 045-17: Cooling-Fan Temperature Limiter
87
Figure 045-18: Electronics Bracket Screws
88
Roast Probe Electronic (N1-6) Removal
89
Figure 045-19: Screws Securing Distributors, Position Switch Mounting Bracket and Air Duct
89
Wireless Roast Probe Test
90
Figure 045-20: Roast Probe Electronic
90
Figure 045-21: Wireless Roast Probe Test Setup
90
Control Panel
92
Function
92
Optical Interface
92
M-Touch Display (Model-Dependent)
92
Figure 060-1: M-Touch Display
92
Loudspeaker
93
Operating Modes
94
Heater-Element Configurations
94
Figure 060-2: Rapid Heat-Up (R13 and R15 Alternately)
94
Figure 060-3: Convection
94
Table 060-1: Melodies for Appliances with Loudspeaker
94
Overview
95
Figure 060-4: Surround
95
Figure 060-5: Bake
95
Figure 060-6: Browning
95
Figure 060-7: Convection Broil, Broil
95
Figure 060-8: Eco Broil
95
Fault Repair
96
Fault Code F05 - Oven Pt1000 Temperature Sensor Short-Circuited
96
Fault Code F06 - Oven Pt1000 Temperature Sensor Open-Circuited
96
Table 060-2: Operating-Mode Overview
96
Fault Code F07
97
Fault Code F10 - Steam Generator Water Intake Fault
97
Fault Code F11 - Steam Generator Drainage Fault
99
Fault Code F20 - Heating Fault
100
Fault Code F44 - Control Electronic/Power Electronic Interface Fault
100
Fault Code F54 - Roast Probe Short-Circuited
100
Fault Code F55 - Safety Cut-Out
100
Fault Code F60 - Power Electronic Temperature Limit Exceeded
101
Fault Code F74 - Drain Valve Fault
101
Fault Code F94 - Plumbed-Water Connection Water Intake Fault
101
Fault Code F190 - Plumbed-Water Connection Valve Defective
101
Fault Code F191 - Heat-Flow Pt1000 Temperature Sensor Short- Circuited
101
Fault Code F192 - Heat-Flow Pt1000 Temperature Sensor Open-Circuited
102
Fault Code F193 - Bottom Heat Pt1000 Temperature Sensor Short-Circuited
102
Fault Code F194 - Bottom Heat Pt1000 Temperature Sensor Open-Circuited
102
Fault Code F195 - Roast Probe Electronic Communication Fault
102
Fault Code F196 - Pump Sump Fault
103
Figure 060-9: Rotating the Drain Filter
103
Fault Code F197 - Cooling-Air Pt1000 Short Circuit
104
Fault Code F198 - Cooling-Air Pt1000 Open Circuit
104
Fault Code F235 - Control/Power Electronic Communication Fault
105
Fault Code F241 - Touchpad Communication Fault
105
Fault Code F242 - Touchscreen Communication Fault
105
Update was Not Successful
105
Delay Start Cannot be Selected
106
End Time Not Displayed
106
Appliance Must be Descaled Frequently
106
Diagnostic Support Cannot Establish a Connection
106
Descaling Display
107
Fascia Panel Does Not Respond to Sensor Touch
107
Table 060-3: Descaling Counter Versus Water Hardness
107
Service
108
Settings Menu
108
Programming Mode
112
Table 060-4: Settings Menu
112
Table 060-5: Programming Functions
113
Service Mode
114
Fascia Panel/Control Electronic Assembly Removal
116
Table 060-6: Service Mode Functions
116
Loudspeaker Removal
117
Figure 060-10: Fascia Panel Cover
117
Figure 060-11: Fascia Panel/Control Electronic Assembly
117
Technical Service Bulletins
119
DGC6XXX Drain Faults Out-Of-The-Box
119
DGC 6000 XXL Model - Large Cavity
120
Gen6 Electronics for M-Touch Models
120
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Miele DGC 6 Series and is the answer not in the manual?
Ask a question
Miele DGC 6 Series Specifications
General
Brand
Miele
Model
DGC 6 Series
Category
Oven
Language
English
Related product manuals
Miele DGC 7860
196 pages
Miele DGC 7840
196 pages
Miele DGC 7660
188 pages
Miele DGC 7460
172 pages
Miele DGC 6865
200 pages
Miele DGC 6660
184 pages
Miele DGC 7440
172 pages
Miele DGC 7865
196 pages
Miele DGC 6400
160 pages
Miele DGC 6805
196 pages
Miele DGC 5080
80 pages
Miele DGC 7450
132 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
