Technical Information
53
DGC 6xxx
2. Disconnect the appliance from the power supply.
3. Remove the lid; see Section 010-4.2.
4. Remove the rear/left side panel; see Section 010-4.4.
5. Disconnect all electrical connections from the steam generator.
6. Disconnect all hoses from the steam generator.
7. Remove the two T20 screws securing the steam generator mounting
bracket (one per side); see Figure 035-8, Item 1.

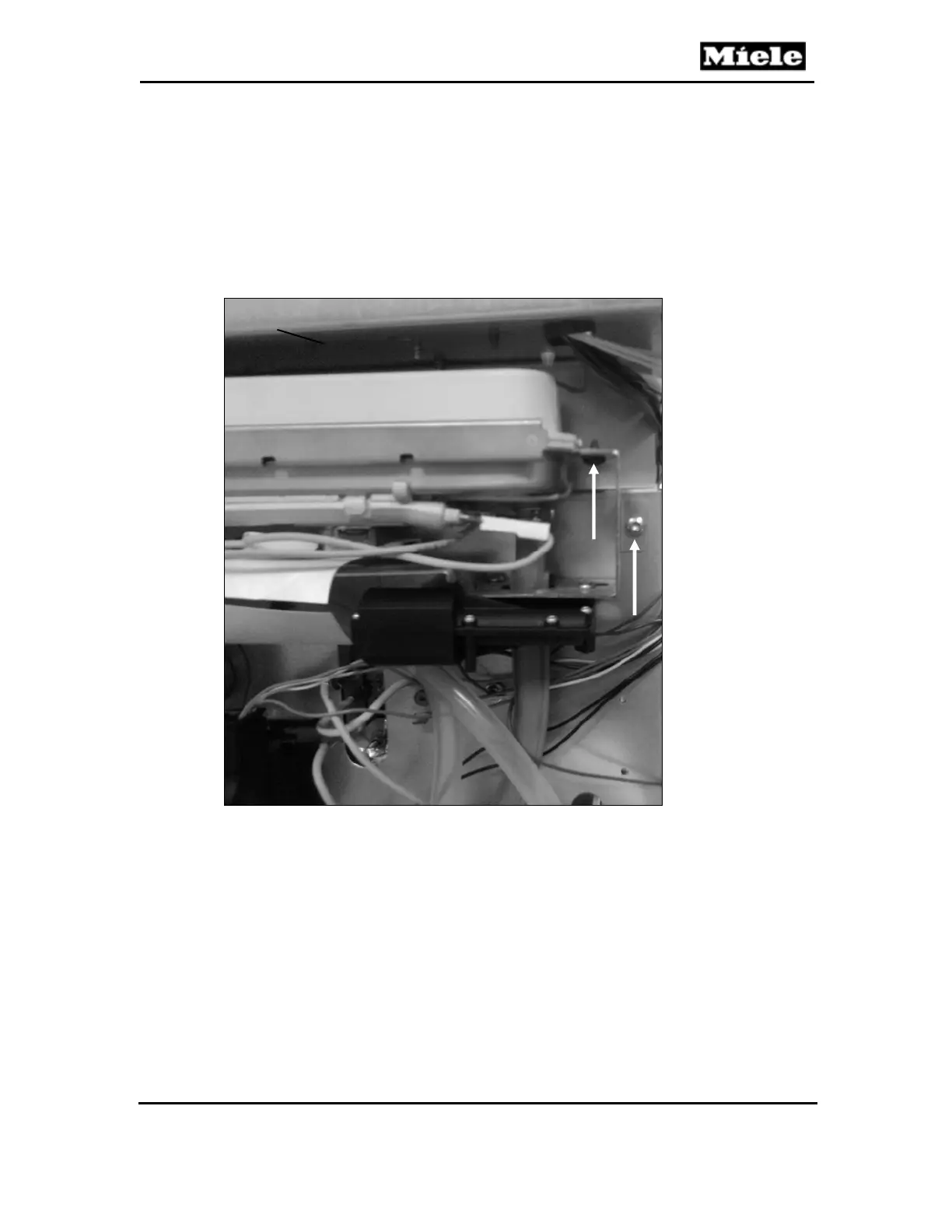

Figure 035-8: Steam Generator/Mounting Bracket Assembly (Right Side Shown)
8. Separate the generator/bracket assembly from the rear wall of the
appliance.
9. Remove the 5.5mm nut and washer securing the conductivity electrode’s
red wire to the top of the steam generator. Take off this wire.
10. Remove the two T20 screws securing the mounting bracket to the steam
generator (see Figure 035-8, Item 2, or Figure 035-9, Item 1); separate
the bracket from the generator.
11. Disconnect any other hoses/electrical connections from the steam
generator and its temperature limiters.
12. Remove the T20 screw securing each temperature limiter to the steam
generator (Figure 035-9, Item 2) and take off the temperature limiters.
1
2
