Technical Information
17
DGC 6xxx
4.2 Lid Removal
1. Remove the appliance from its housing unit; see Section 010-4.1.
2. Disconnect the appliance from the power supply.
3. Pull out the fascia panel.
4. Open the door.
5. If applicable, remove the two retaining nuts (5.5mm) from the underside
of the lid, next to the water and condensate tanks.
6. Remove the eight T20 screws; see Figure 010-2, Item 1.
7. Remove the lid.

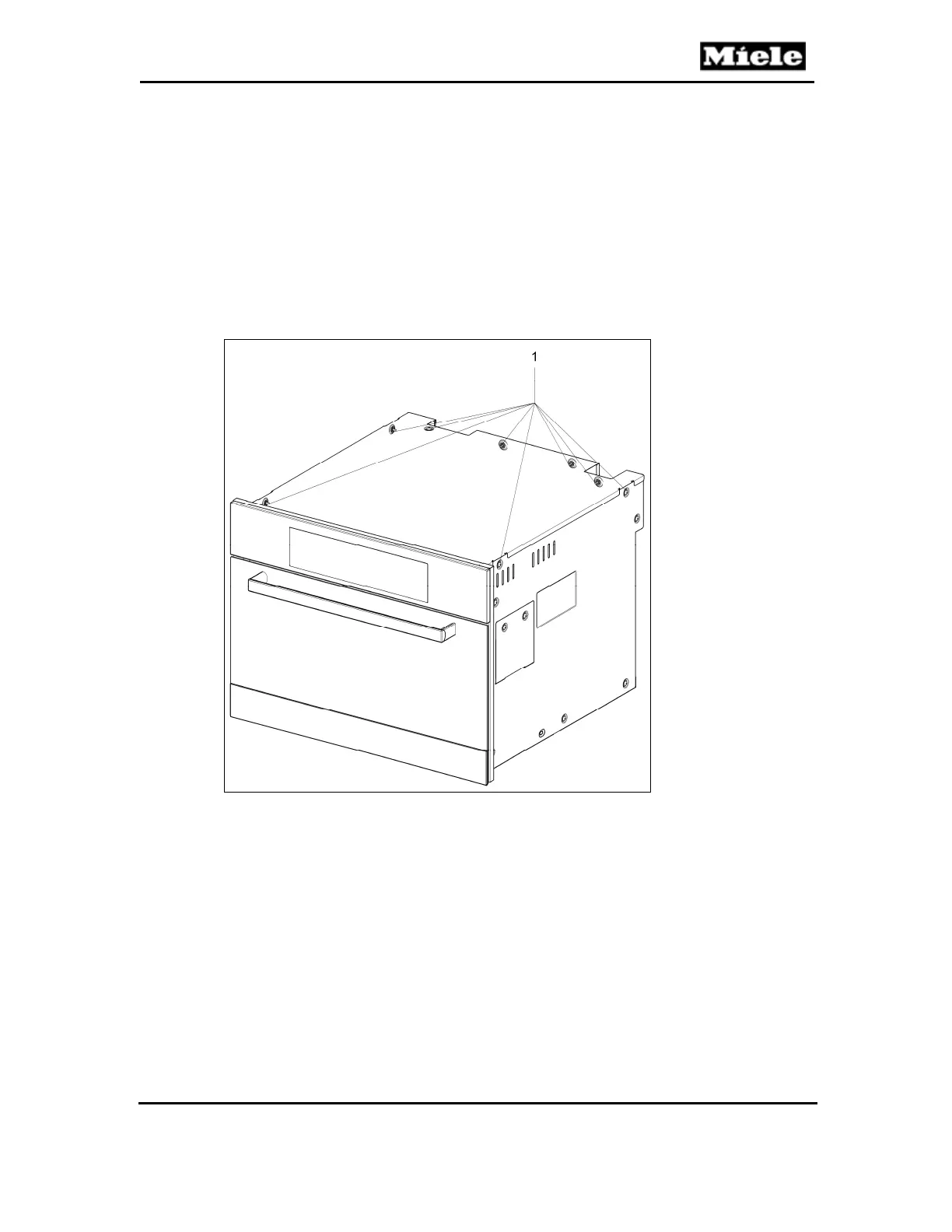

Figure 010-2: Lid Removal
4.3 Right Side Panel Removal
1. Remove the appliance from its housing unit; see Section 010-4.1.
2. Disconnect the appliance from the power supply.
3. Remove the lid; see Section 010-4.2.
4. Remove the retaining screws; see Figure 010-3, Item 1.
5. Remove the right side panel.
