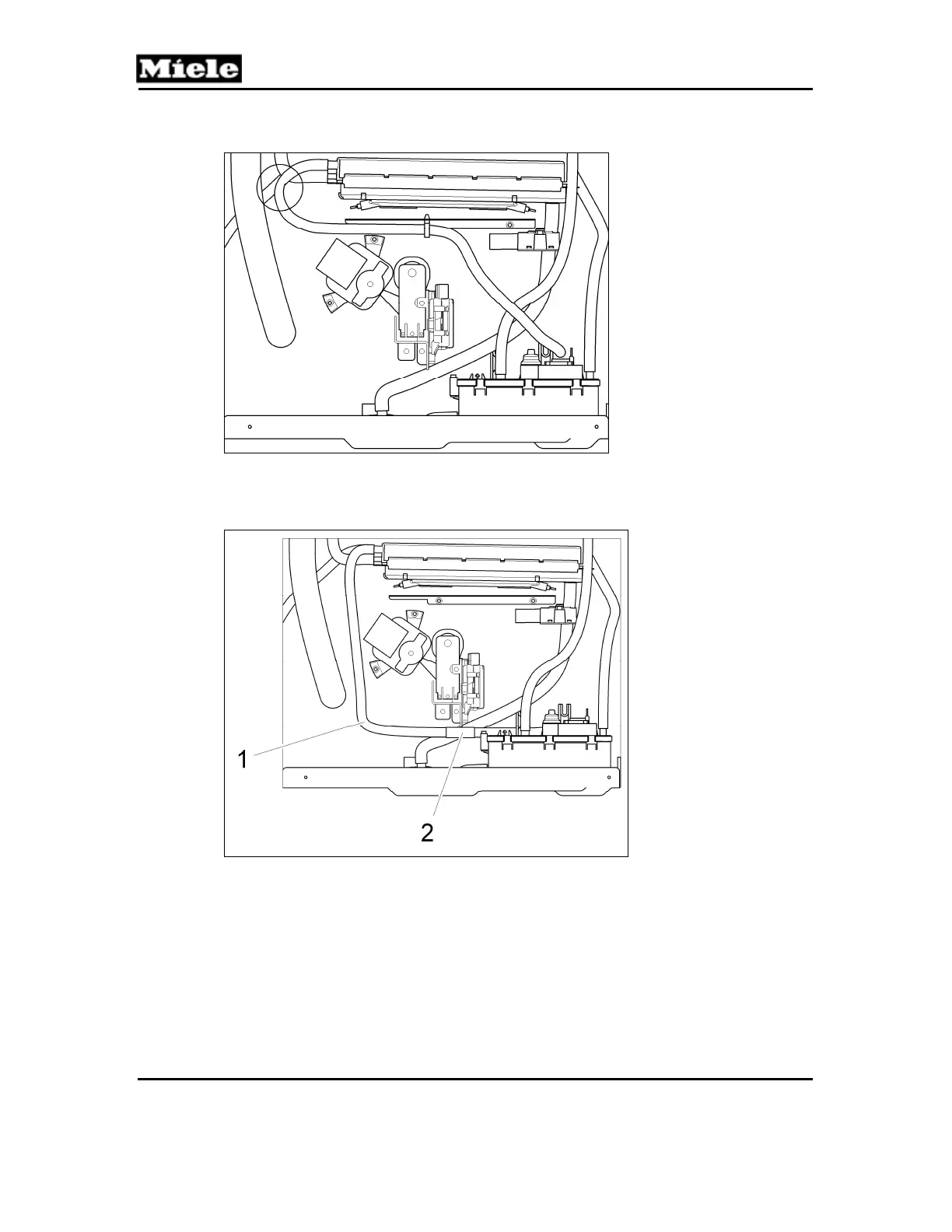

Figure 035-3: Old Hose Positioning

Install the hose (see Figure 035-4, Item 1) and protective hose (see Figure

035-4, Item 2). (Refer to the parts CD for current part numbers.)

Figure 035-4: New Hose Positioning

3.4 Condensate/Drain Hose Cannot Be Connected

Symptom:

The condensate/drain hose cannot be connected to the machine. The hose

clip is too small.

Cause:

Incorrect hose clip in accessory pack.

Remedy:
