Technical Information
81
DGC 6xxx

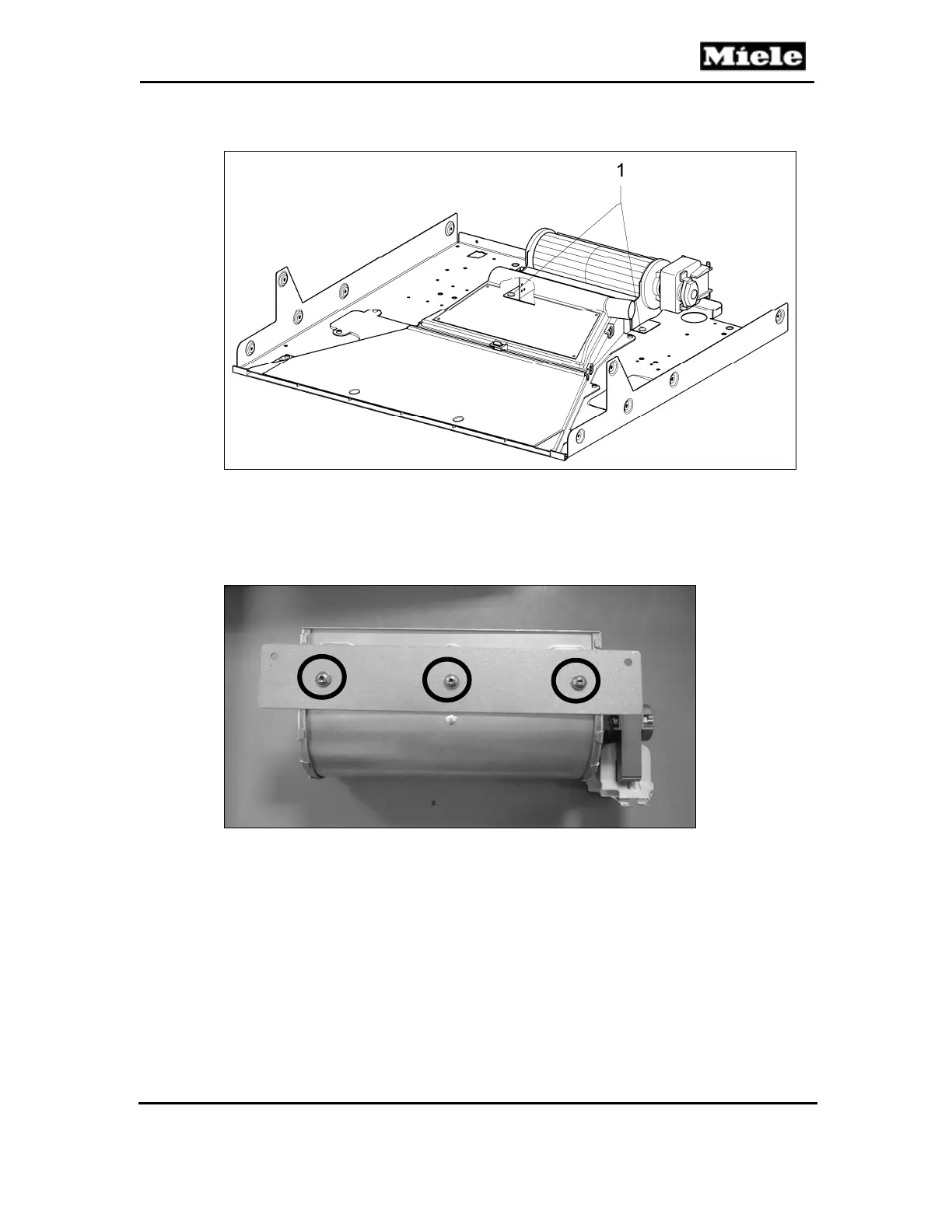

Figure 045-5: Cooling-Fan Screws
7. Disconnect the cooling-fan connections.
8. Unclip the cooling-fan assembly from the air duct.
9. Remove the three T20 screws securing the fan to its mounting bracket
(circles, Figure 045-6) and separate the fan from the bracket.
Figure 045-6: Cooling Fan and Mounting Bracket
4.2 Heat-Flow Fan (2M2-1) Removal
1. Remove the appliance from its housing unit; see Section 010-4.1.
2. Disconnect the appliance from the power supply.
3. Remove the lid; see Section 010-4.2.
4. Remove the two T20 screws securing the heat-flow fan housing (Figure
045-7, Item 1) to the air duct. Open the housing.
5. Take the fan out of the housing and disconnect it from the power
electronic.
