Miele DGC 6 Series User Manual

Technical Information
37
DGC 6xxx
Figure 030-11: Convection Heater Temperature Limiter
4.7 Bottom Heat Temperature Limiter (2F1) Removal
1. Remove the appliance from its housing unit; see Section 010-4.1.
2. Disconnect the appliance from the power supply.
3. Remove the lid; see Section 010-4.2.
4. Remove the rear/left side panel; see Section 010-4.4.
5. Disconnect the electrical connections from the temperature limiter.

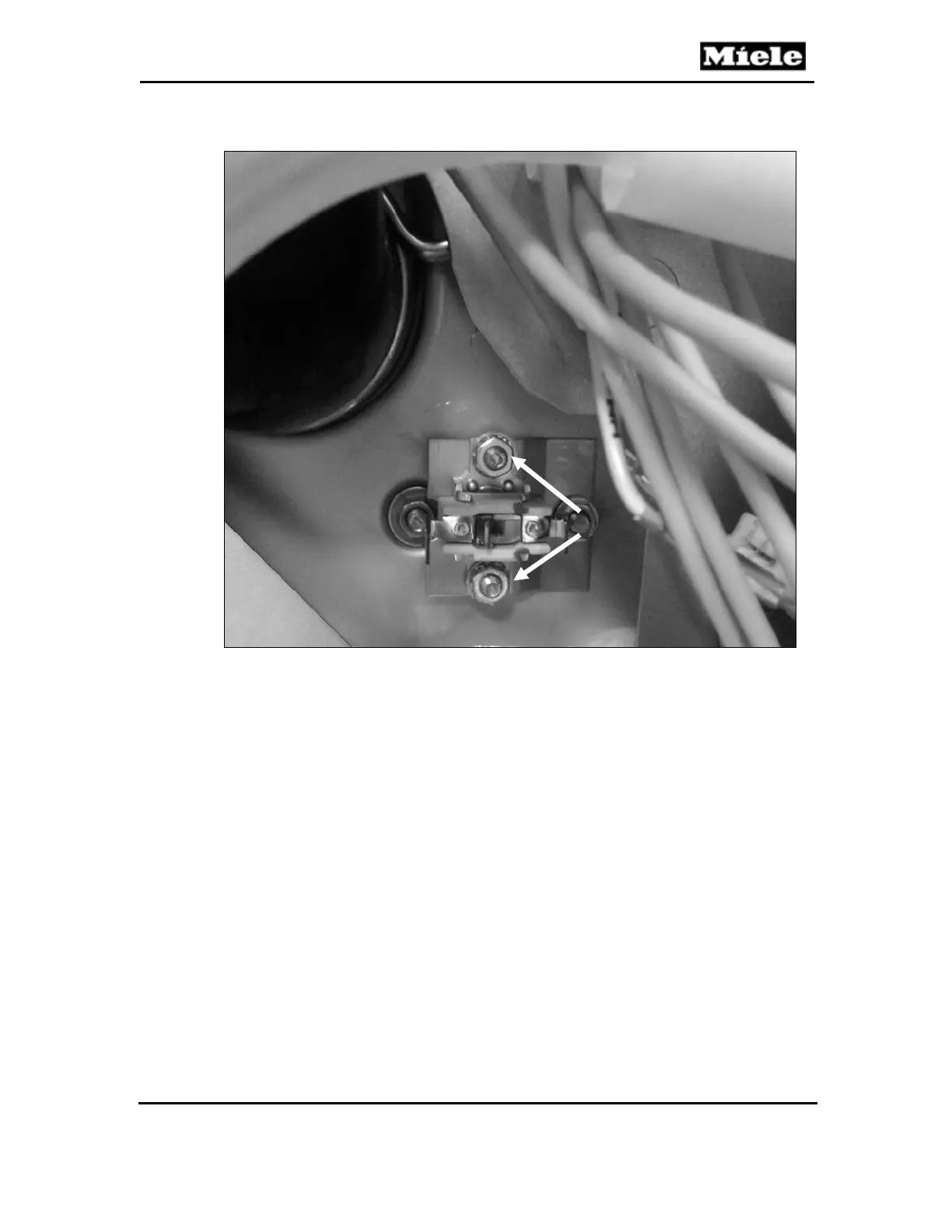

6. Remove the two T20 screws securing the temperature limiter to the rear
of the appliance. See circles, Figure 030-12.
1
