13 - 6
Operator’s Manual
13 Probes and Biopsy
When the two deflection l
evers are in a vertical posi
tio
n with the handle, the
di
stal tip will return to
the zero position.
13.1.2

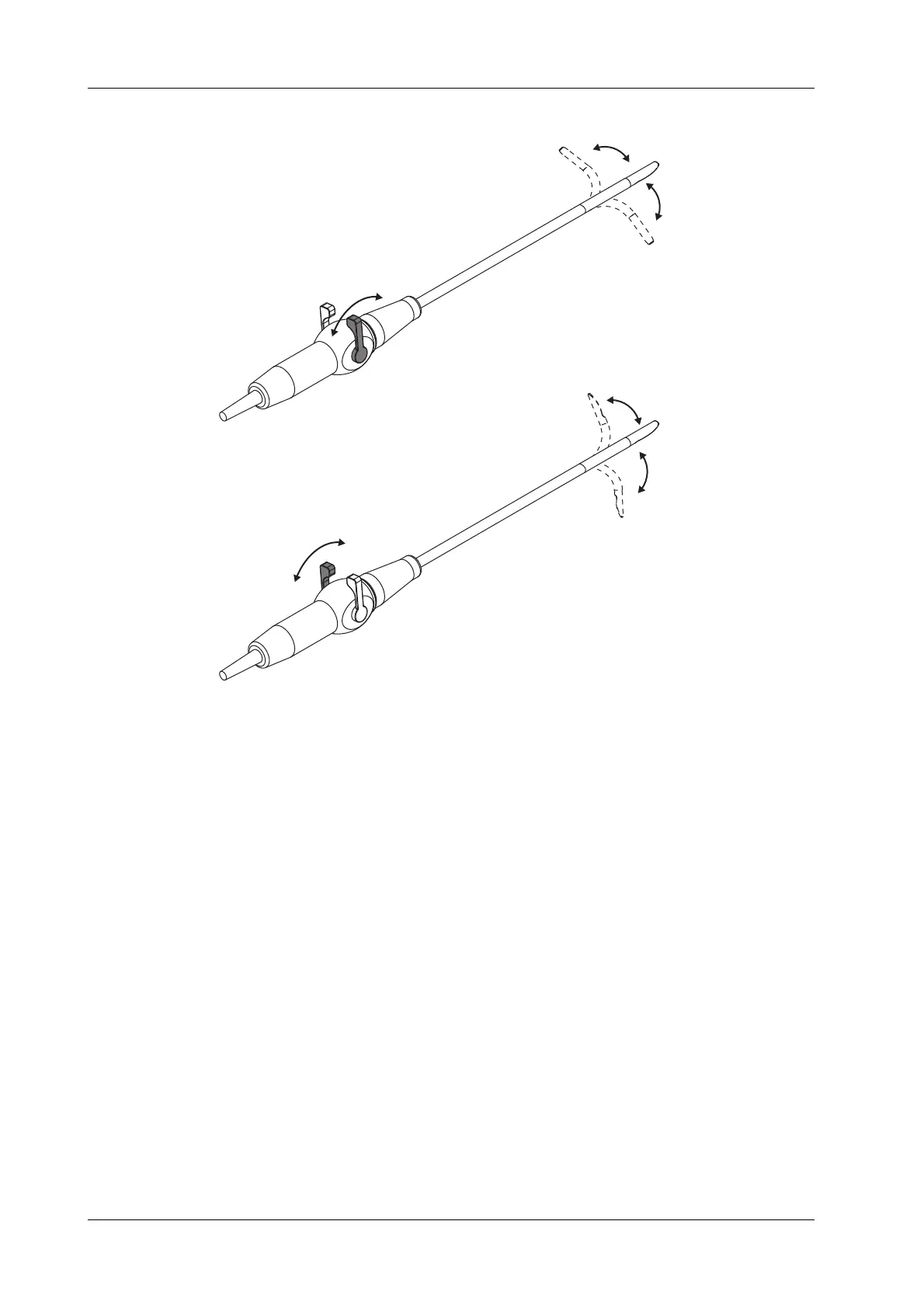

Probe Functions by Part
The basic struct
ures and co
rresponding
functions
of probes are basically
the same; take the
following probe
as an example.
Lef
t
Right
Zero position
Left
Right
Up
Down
Zero position
Up
Down
199
201
