13 Probes and Biopsy
Operator’s Manual 13 - 23
NGB-007 Metal/needle detachable needle-guided bracket
Perform the following procedure:
1. Install the needle-guided bracket:
a. Put on the sterile probe sheath.
b. Hold the probe in one hand, select the correct needle-guided bracket and hold it with the
other hand. Match the groove and tab with the tab and groove of the probe respectively.
Mount the bracket onto the probe.
c. Screw the pinch nut of the needle-guided bracket to ensure that the needle-guided bracket
is properly installed on the probe.

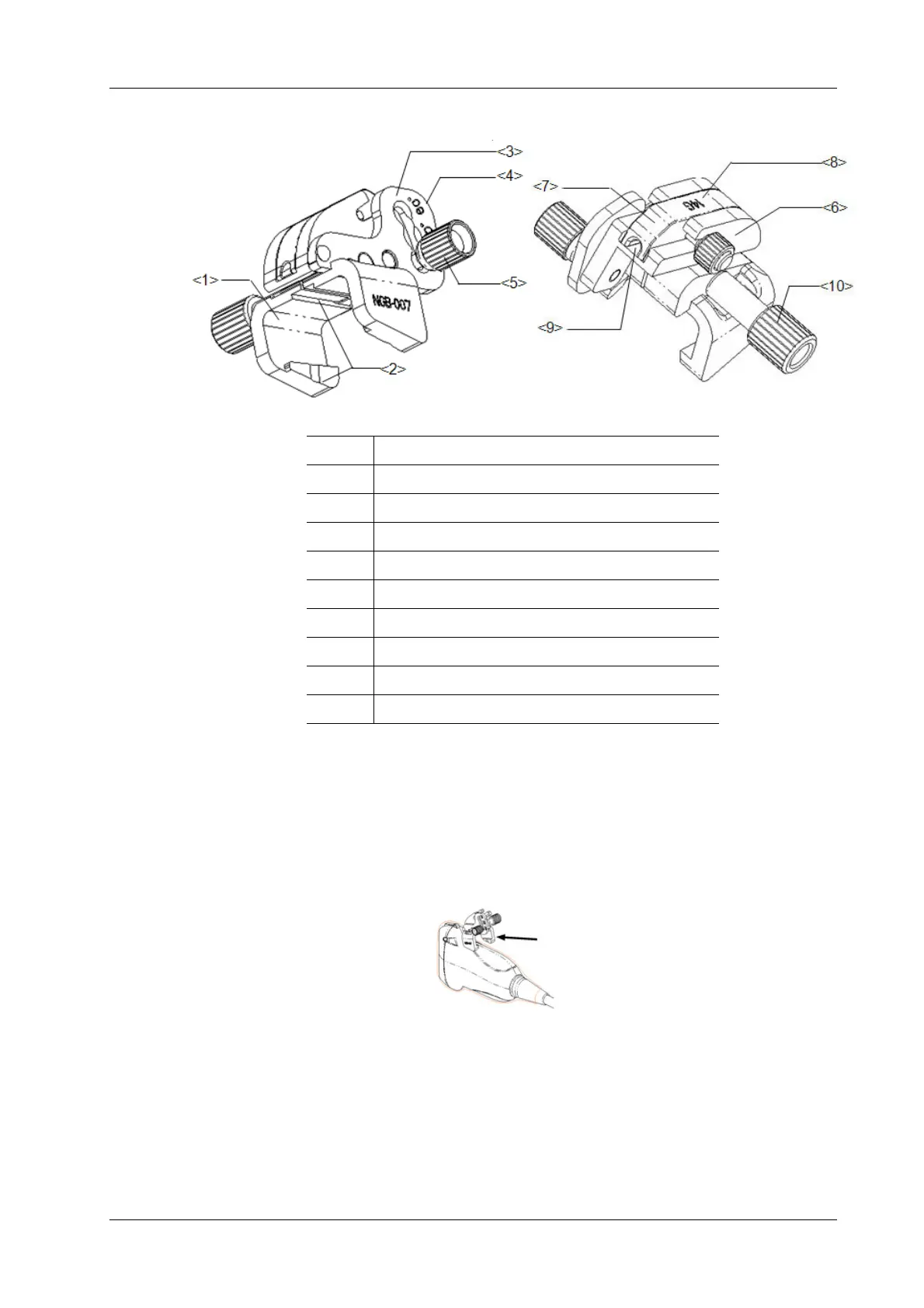

1 Support for needle-guided bracket
2 Tab and groove for the needle-guided bracket
3 Angle-adjusting base
4 Angle shift sign
5 Angle pinch nut
6 Angle block
7 Guiding block
8 Guiding block specification
9 Needle guide hole
10 Needle-guided bracket pinch nut
