AG7 Audio Generator module
AG7 module mai
nmenu
Use the AG7 module main menu to perform the following tasks:
Select the audio channel whose parameters are to be changed
Select the audio data resolution
Select the frame reset signal to be synchronized
Select the timing offset for the audio signal outputs
Use the up (▲)ordown(▼) arrow button to scroll through the main menu. The
following figure shows the AG7 module main menu.

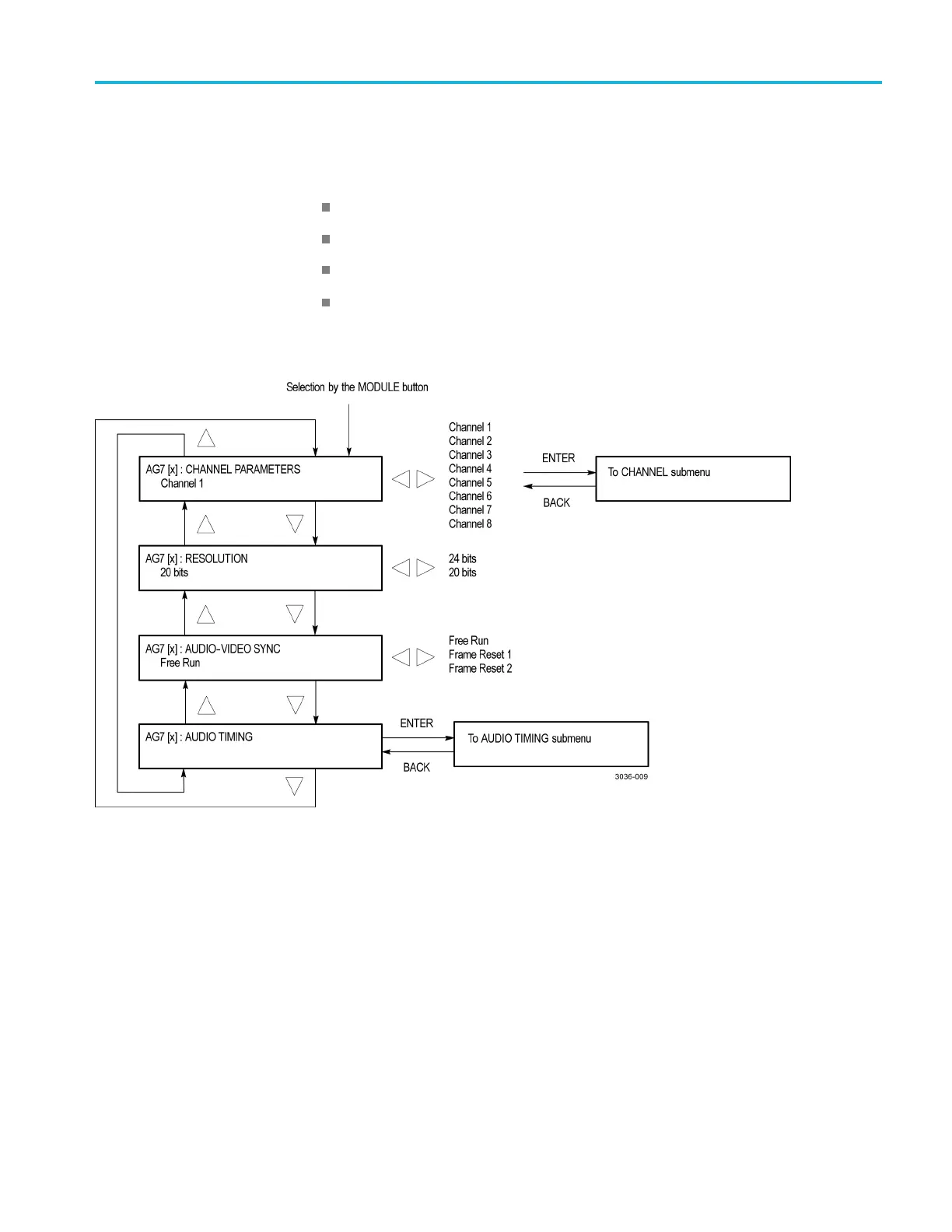

Figure 3-1: AG7 module main menu
CHANNEL PARAMETERS. Selects the channel for which the parameters are to be
set (from Channel 1 to Channel 8). Use the left (◄)orright(►) arrow button
to make the selection.
Press the front-panel ENTER button to access the CHANNEL PARAMETERS
submenu where you can set frequency, amplitude, and audio click insertion. (See
page 3-4.)
RESOLUTION. Sets the resolution of the serial digital audio signal data. Use the
left (◄)orright(►) arrow button to make the selection. The choices are 24 bits
or 20 bits. Press the ENTER button to enable the selection.
TG8000 Multiformat Test Signal Generator User Manual 3–3
