DVG7 Digital Video Generator module
To select an ou
tput signal on the DVG7 module
To output a signal from the DVG7 module, you need to select a signal format
and output s ignal as described below.
To select the
signal format
Perform the following steps to select the signal format:

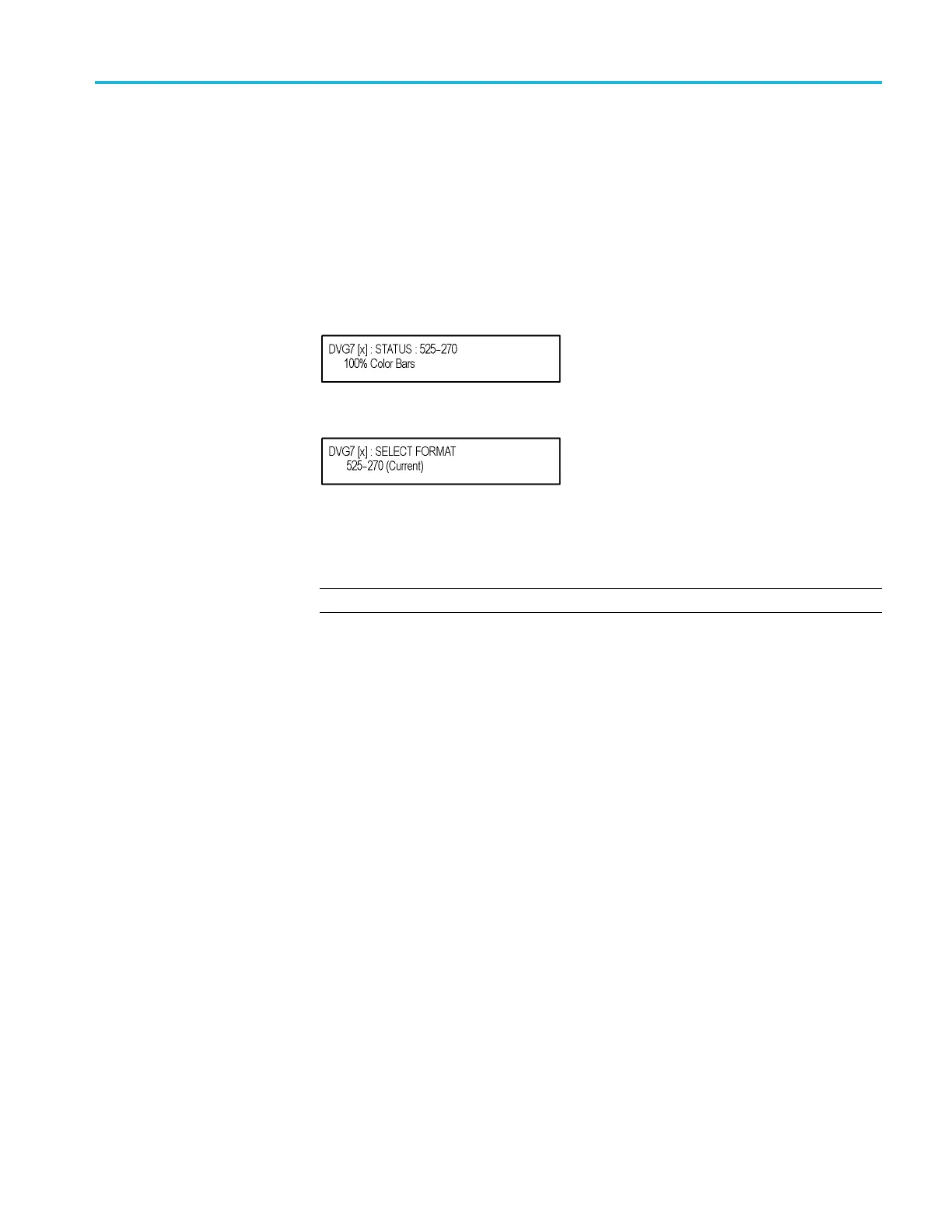

1. Press the front-panel MODULE button until the DVG7 module main menu
appearsasshownbelow.
2. Press the
FORMAT button. The menu display changes as follows:
3. Use the left (◄)orright(►) arrow button, or press the FORMAT button
repeatedly, to select one of the signal formats, and then press the ENTER
button
to confirm the selection.
NOTE. When you change signal format, synchronization shock occurs.
4. If yo
u change the signal format while a test signal is being output, the
instrument starts loading all of the signal sets for the selected format and
displays the message "Now Loading...". When you see the message, "Done
(Press BACK)", press the BACK button.
TG8000 Multiformat Test Signal Generator User Manual 3–77
