Operating basics
AWVG7 module
connectors
The AWVG7 Analo
g Wideband Video Generator module is equipped with three
pairs of BNC connectors as described below. (See Figure 2-9.)

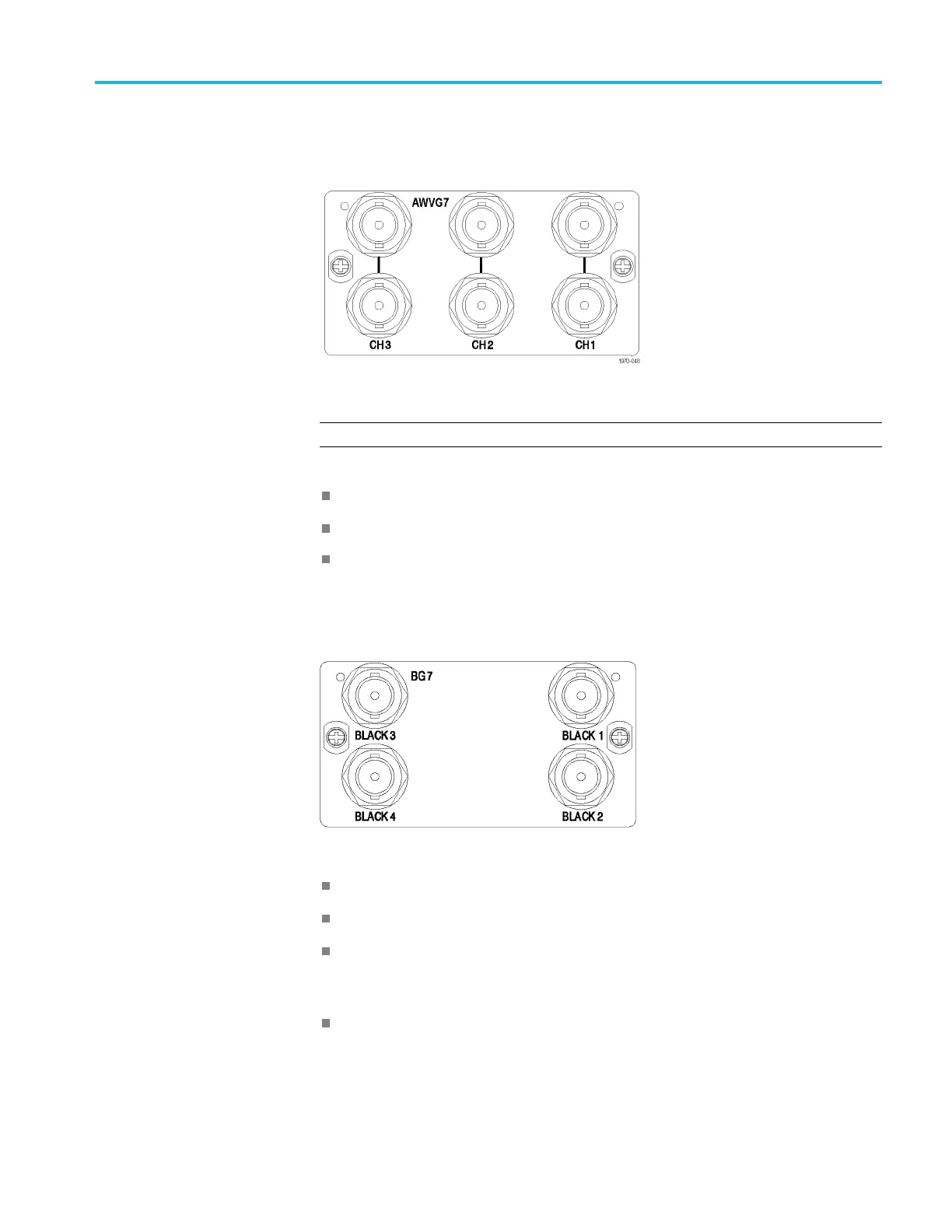

Figure 2-9: AWVG7 module connectors
NOTE. Each pair of connectors (CH 1, CH 2, and CH 3) output the same signal.
CH 1: Outputs the selected analog component video signal.
CH 2: Outputs the selected analog component video signal.
CH 3: Outputs the selected analog component video signal.
BG7 mod ule connectors
The BG7 Black Generator module is equipped with four BNC connectors as
descr
ibed below. (See Figure 2-10.)
Figure 2-10: BG7 module connectors
BLACK 1: Outputs the selected black burst or HDTV trilevel sync signal.
BLACK 2: Outputs the selected black burst or HDTV trilevel sync signal.
BLACK 3: Outputs the selected black burst or HDTV trilevel sync signal.
Option CB enables this connector to also output a 10 field ID or color bars
signal.
BLACK 4: Outputs the selected black burst or HDTV trilevel sync signal
output. Option CB enables this connector to also output a 10 field ID or color
bars signal.
TG8000 Multiformat Test Signal Generator User Manual 2–11
