4. Insert the modu
le into the slot, paying attention to the module orientation.
(See Figure 1-4.) Push the module into the slot until the connector board of
the module is firmly engaged w ith the Main board of the mainframe.

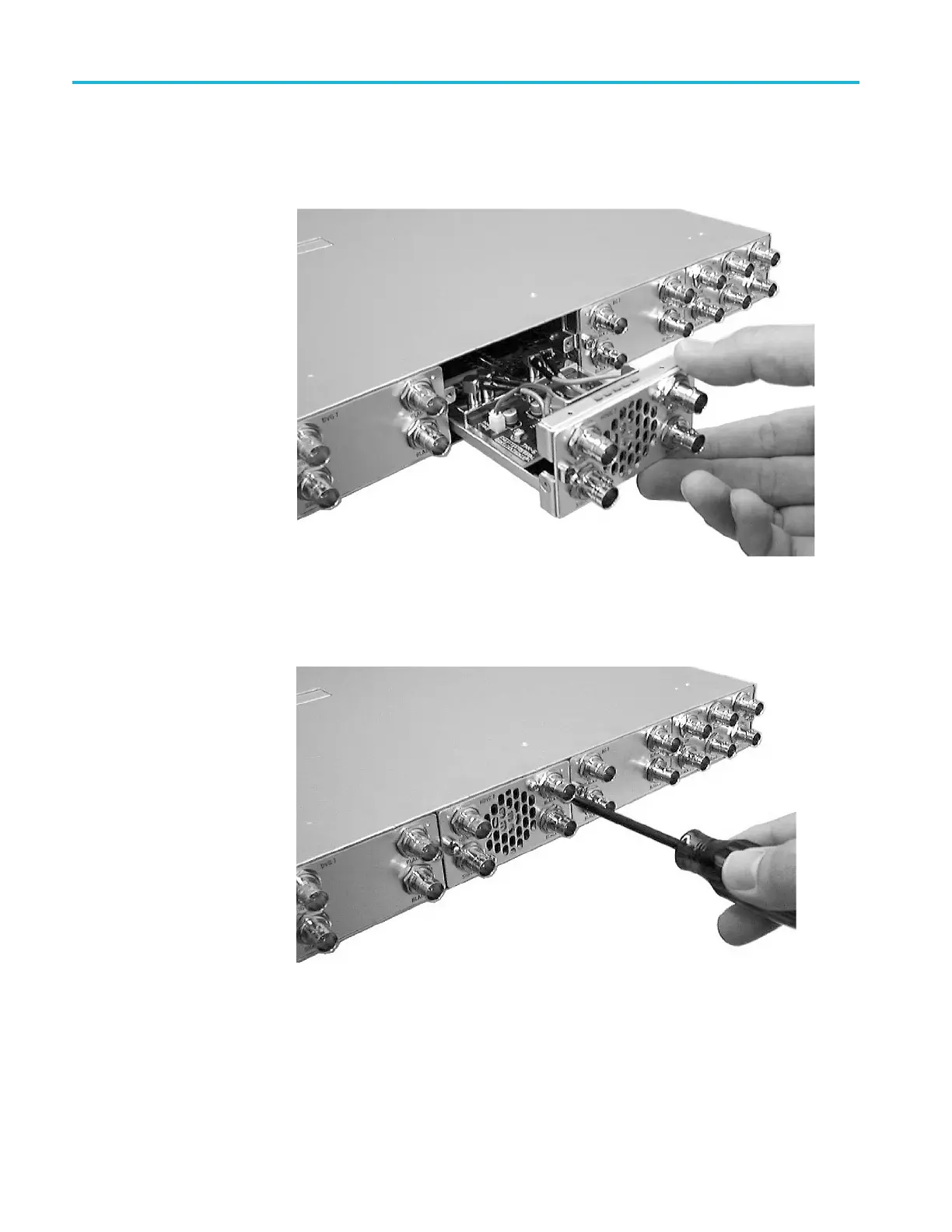

Figure 1-4: Installing a module
5. Tighten the two screws to secure the module to the mainframe. (See
Figur
e1-5.)
Figure 1-5: Securing a module
1–14 TG8000 Multiformat Test Signal Generator User Manual
