HDVG7 HDTV Digital Video Generator module
Generates vide
o signals with 24 (or 20) bit embedded digital audio with a
sample rate of 48 kHz. The module supports the following audio frequencies.
Silence
50 Hz
100 Hz
150 Hz
200 Hz
250 Hz
300 Hz
400 Hz
500 Hz
600 Hz
750 Hz
800 Hz
1000 Hz
1200 Hz
1500 Hz
1600 Hz
2000 Hz
2400 Hz
3000 Hz
3200 Hz
4000 Hz
4800 Hz
5000 Hz
6000 Hz
8000 Hz
9600 Hz
10000 Hz
12000 Hz
15000 Hz
16000 Hz
20000 Hz
How to operate the HDVG7 module
After the module is installed in the mainframe, and the mainframe is installed in
the rack or other location where it will be used, use the following procedure to
access each function of the module:
1. Connect the power cord to the power connector on the rear panel, and then
plug the cord into the AC electric power source. Electric power is supplied
to the ma
inframe.
2. Wait until the power-on initialization process is complete, and then check that
no erro
r messages appear on the display.

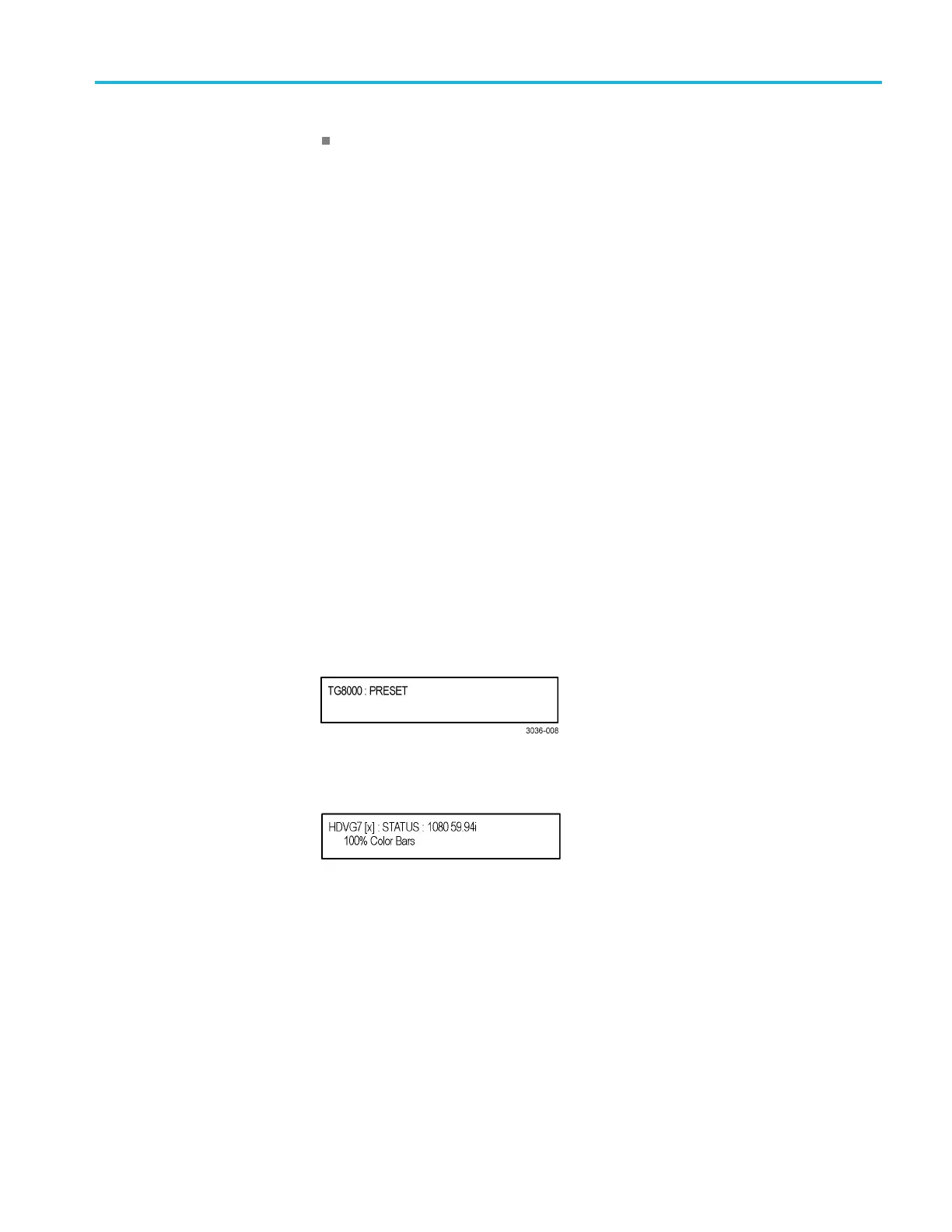

3. After the initialization process is complete, the mainframe main menu appears
as sho
wn below.
4. Press the front-panel MODULE button until the HDVG7 module main menu
app
ears as shown below.
5. Select the signal format and the test signal you want to output. (See
page 3-230, To select an output signal on the HDVG7 module.)
6. Use the front-panel arrow buttons to navigate and select items in the m ain
menu and submenus.
Refer to HDVG7 Module Main Menu for detailed information about the main
menu items and the submenu items. (See page 3-232.)
TG8000 Multiformat Test Signal Generator User Manual 3–229
