Operating basics
HDVG7 modu le connectors
The standard HD
VG7 Digital Video Generator module is equipped with two BNC
connectors to output serial digital video signals. Option BK adds two additional
BNC connectors to output serial digital black signals. (See Figure 2-15.)

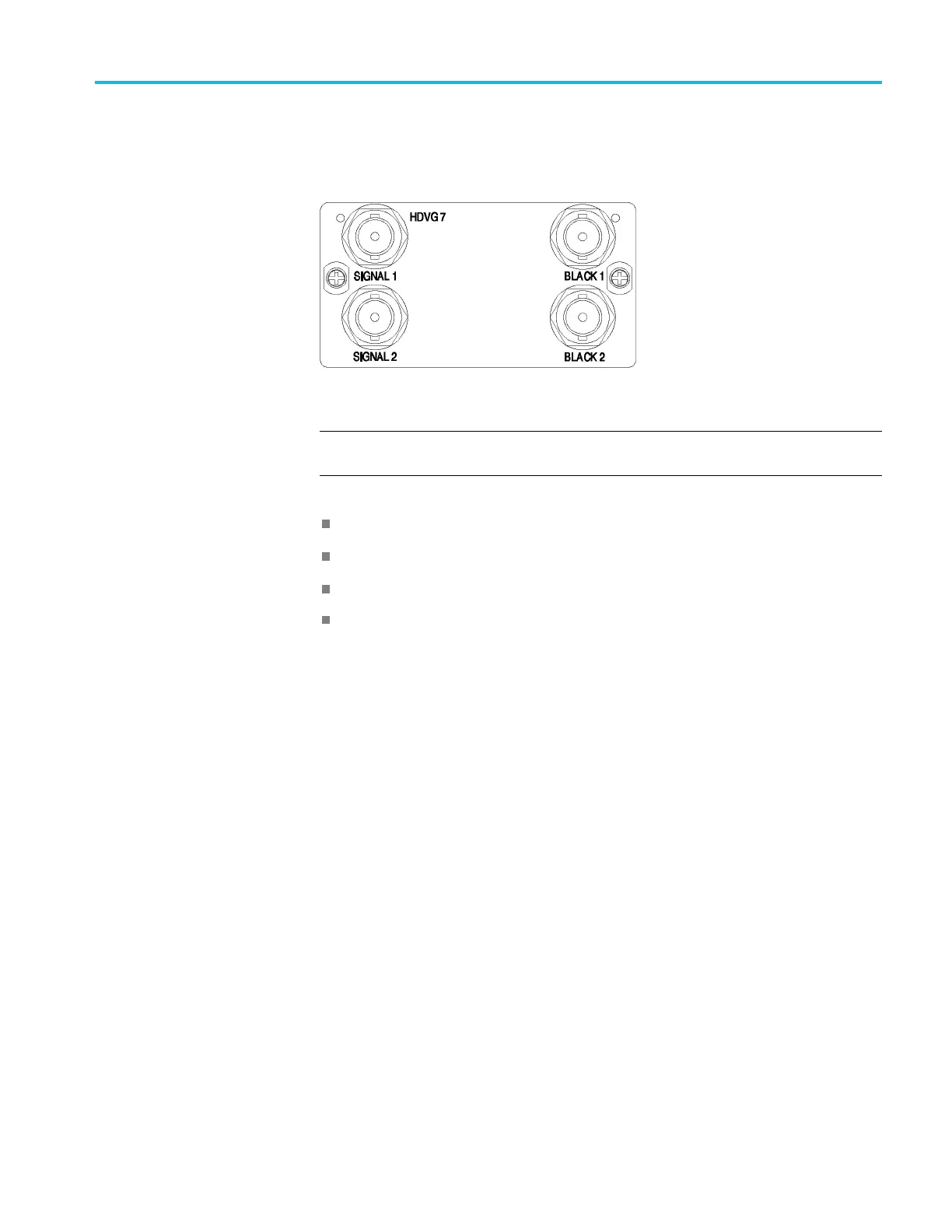

Figure 2-15: HDVG7 module connectors (Option BK)
NOTE. The SIGNAL 1 and SIGNAL 2 connectors output the s ame test signal, and
the BLACK 1 and BLACK 2 connectors output the same black signal.
SIGNAL 1: Outputs the selected serial digital video signal.
SIGNAL
2: Outputs the selected serial digital video signal.
BLACK 1: Outputs the selected serial digital black signal (Option BK only).
BLACK 2: Outputs the selected serial digital black signal (Option BK only).
TG8000 Multiformat Test Signal Generator User Manual 2–17
