BG7 Black Generator module
How to operate
the BG7 module
After the module is installed in the mainframe, and the mainframe is installed in
the rack or other location where it will be used, use the following procedure to
access each f
unction of the module:
1. Connect the power cord to the power connector on the rear panel, and then
plug the cor
d into the AC electric power source. Electric power is supplied
to the mainframe.
2. Wait until
the power-on initialization process is complete, and then check that
there are no error m essages on the display.
3. After the

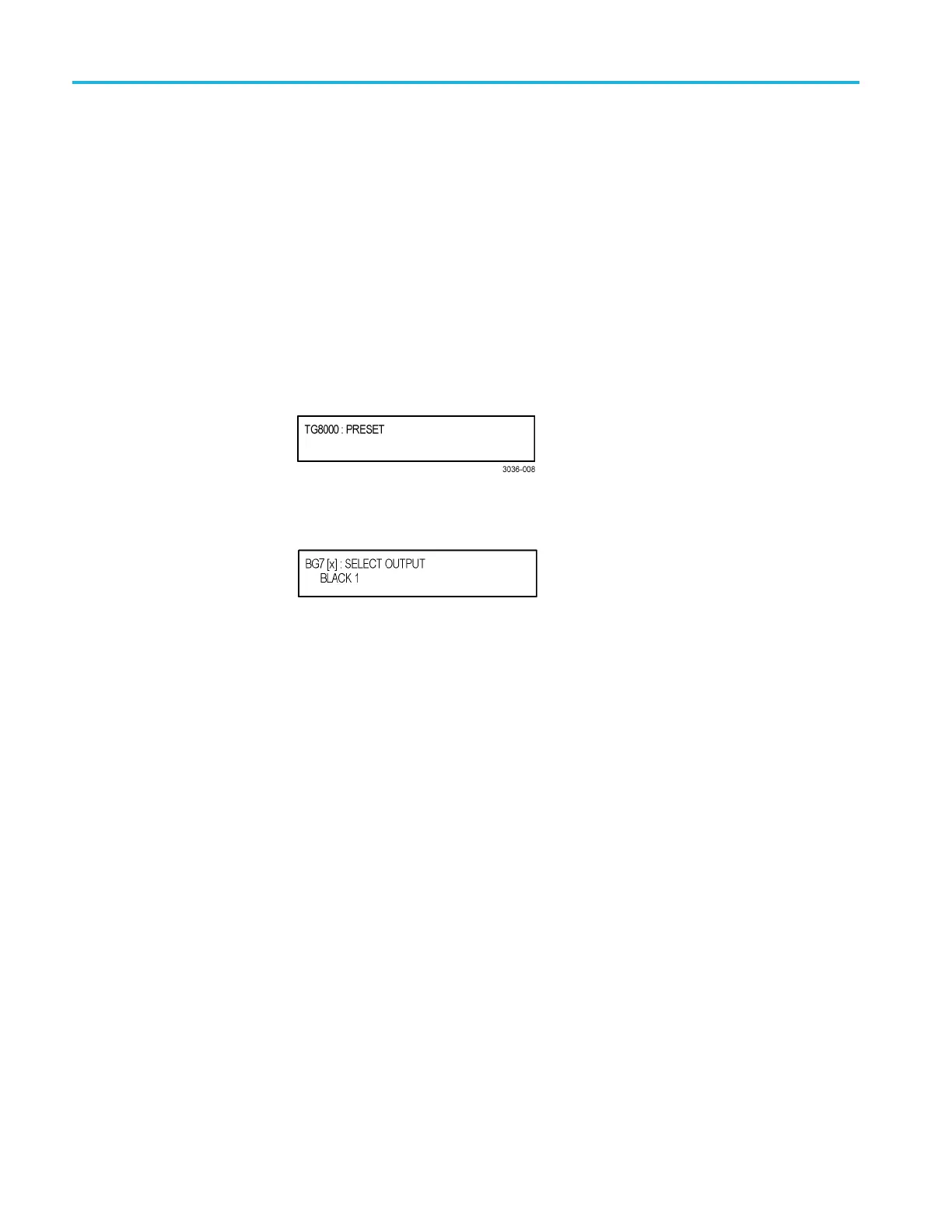

initialization process is complete, the mainframe main menu appears
as shown below.
4. Press t
he front-panel MODULE button until the BG7 module main menu
appears as shown below.
5. Use the front-panel arrow buttons to navigate and select items in the main
menu and submenus.
Refer to BG7 module main menu for detailed information about the main menu
items and submenu items. (See page 3-65.)
3–64 TG8000 Multiformat Test Signal Generator User Manual
