SDI7 Dual Channel SD/HD/3G SDI Video Generator module
To select the signal format
on the SDI7 module
Perform the fol
lowing steps to select the signal format:

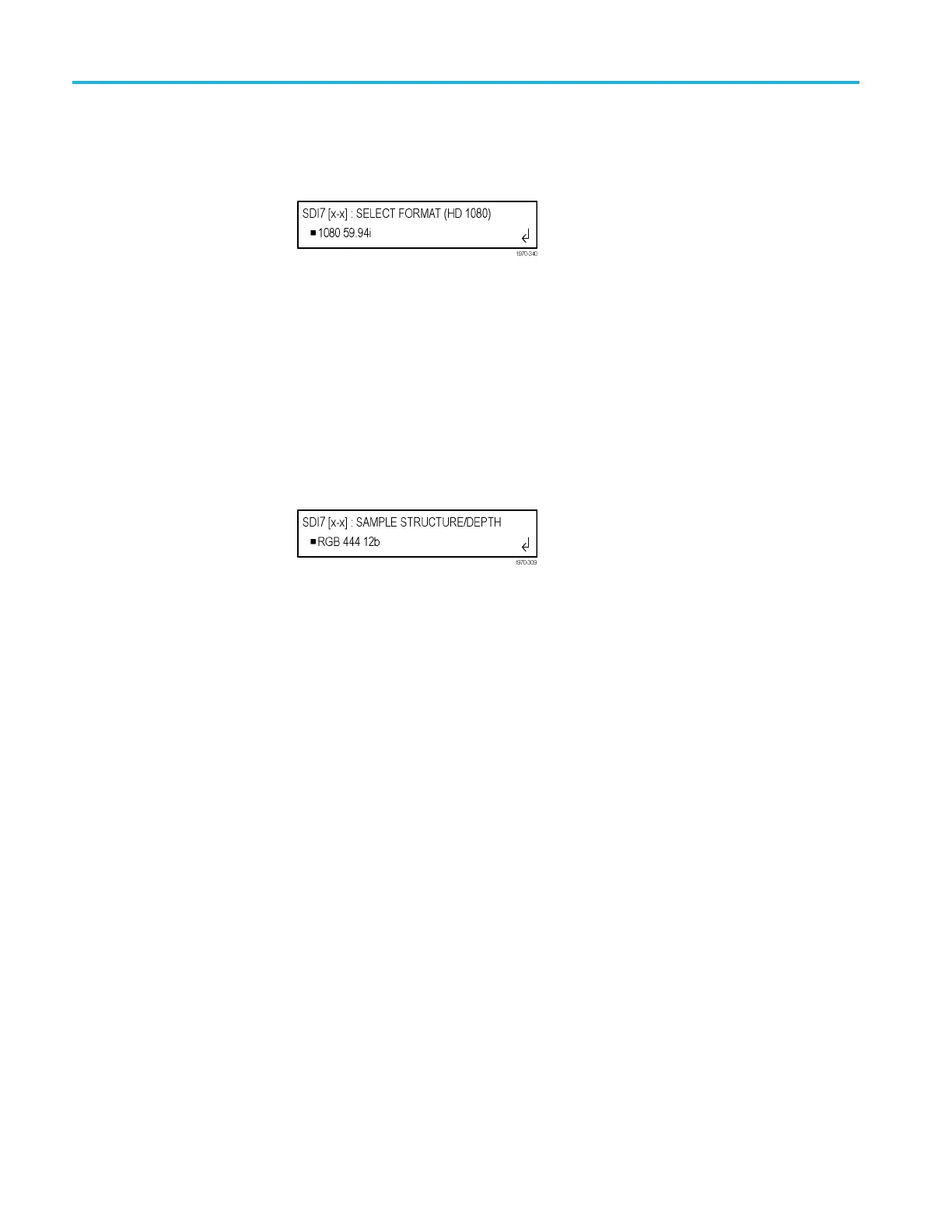

1. Press the FORMAT button. The menu display changes as follows:
2. Use the left (◄)orright(►) arrow button, or press the FORMAT button
repeatedly, to select one of the s ignal formats, a nd then press the ENTER
button to confirm the selection. The dot will appear at the left of the second
line to indicate that the format has been selected.
3. Press the BACK button to exit FORMAT mode.
To select the sample
structure and depth
for the SDI7 module
(Option 3G only)
This menu item appears only when Option 3G is enabled. There are several sample
structures to choose from when the output mode is set to a non-fast-progressive
format. Press the down (▼) arrow button to navigate to the sample structure/depth
selection shown below:
Press the left (◄)orright(►) arrow buttons to scroll through the available
sample structures. When the desired sample struct ure is displayed, press the
ENTER button to select it.
3G non-fast progressive formats (1080 line)
• RGB 444 12b • YCbCr 444 10b
• RGB 444 10b • YCbCrA 444 10b
• RGBA 444 10b • YCbCr 422 12b
• YCbCr 444 12b • YCbCrA 422 12b
(Level B mapping only)
3G formats (720 line)
• RGB 444 10b • YCbCr 444 10b
• RGBA 444 10b • YCbCrA 444 10b
2K line formats
• XYZ 444 12b
• RGB 444 12b
