USER’S MANUAL__________________________________________________________________
424 _________________________________________________________________ M211322EN-D
E.2 TS Record/Playback Software Architecture
E.2.1 General Architecture
The TS record and playback features on a local RVP900 and a remote
archive host, share a common software architecture. The most general case
is shown in Figure 65.
0916-208

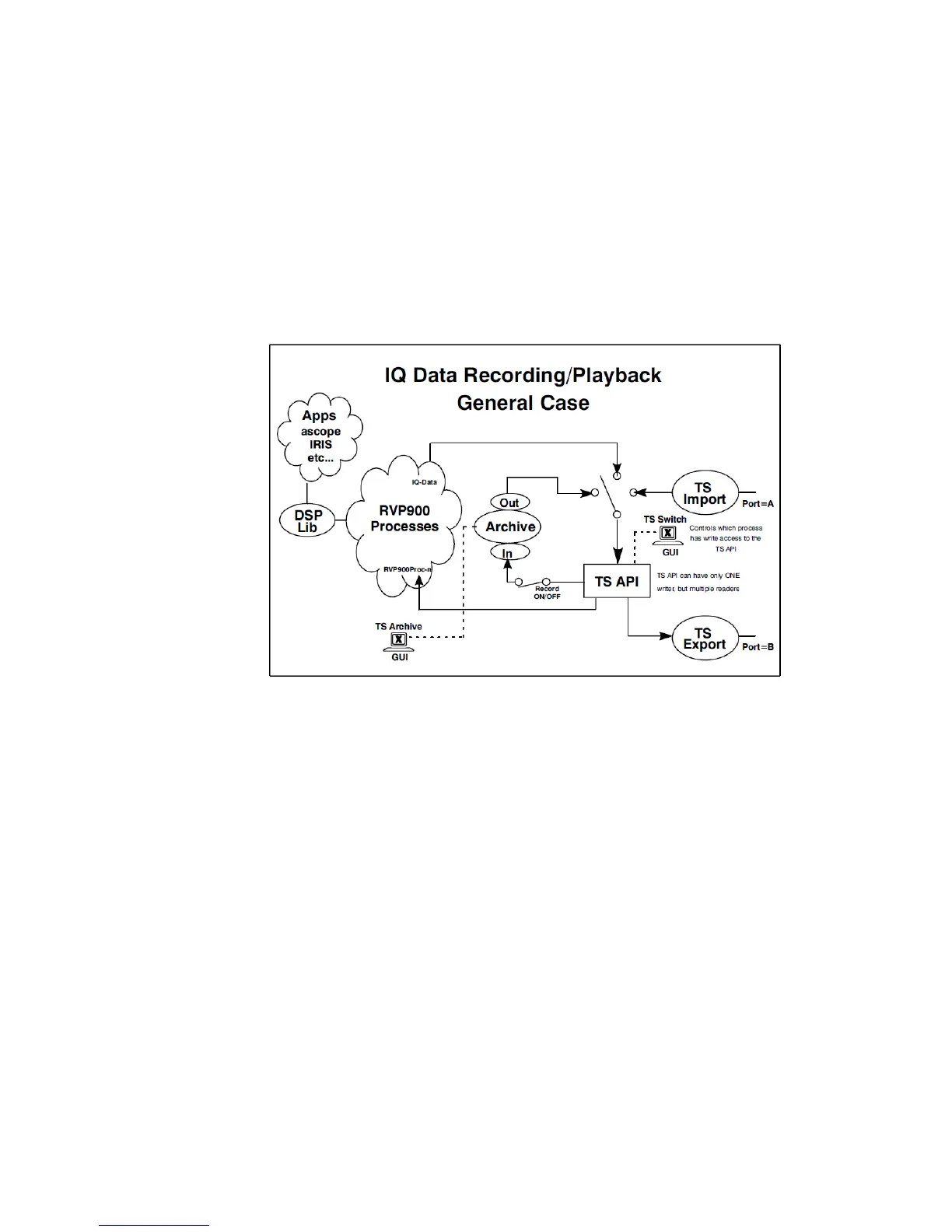

Figure 65 IQ Data Recording/Playback General Case
The structure shown above runs on a single machine. Replicas of this
structure, with pieces included or excluded, can be run simultaneously on
several machines to handle different scenarios, such as a separate archive
host. This modular design does not really make a strong distinction
between the RVP900 and a separate archive host operating in record or
playback mode.
E.2.2 Description of Processes
The following are descriptions of the various processes shown in Figure
65:
- TS API—Central to the architecture, this is where the time series data
reside in memory. The time series can be written to the TS API from
any one (but only one) of three sources:
- From a local RVP900
