Appendix E _____________________________________________________ Time Series Recording
VAISALA______________________________________________________________________ 439
E.6.4 Case 3: TS Playback on a Local
RVP900
0916-215

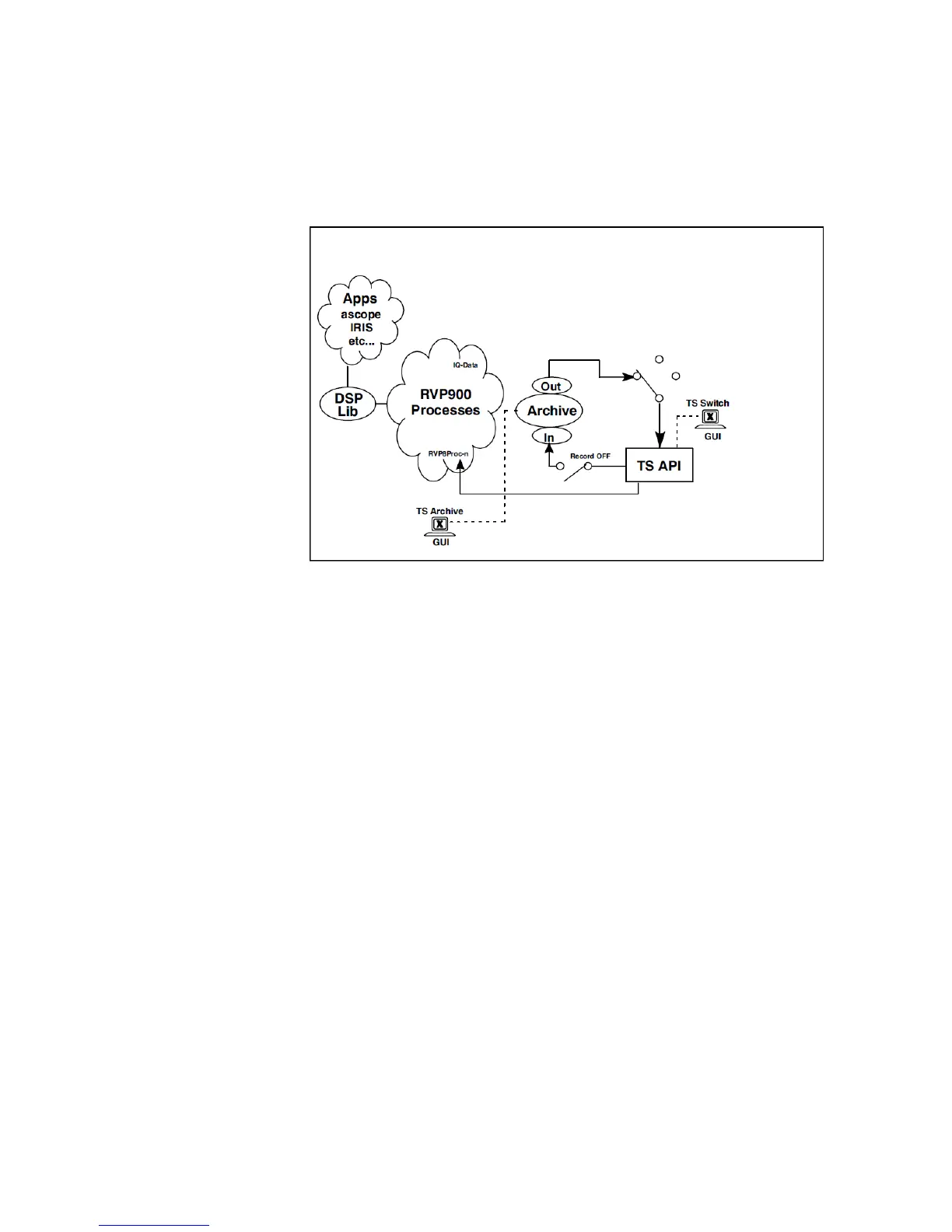

Figure 72 TS Playback on Local RVP900
In this case, the TS Switch is set to write data from the TS Archive to the
TS API. The RVP9Proc-n processes then reads the time series data from
the API. This is essentially identical to the real-time normal operation case
shown in Figure 69 on page 430, except that the archive is the source rather
than the real-time operation.
Utility Settings
The difference is that applications that use the time series must know that
the data are playback rather than real time data. This information as well
as all of the required housekeeping data are actually part of the time series
data format.
RVP900
TS Switch: Local Archive
TS Archive: Play
