E.7 Ascope Playback Features
The ascope utility is a full-featured, stand-alone signal processor
configuration and plotting utility. When an RVP900 is in playback mode,
ascope can be used to configure the processing of the playback data and
display the results. For more information on the ascope utility, refer to the
IRIS Utilities Manual. Figure 74 illustrates the differences in the meanings
of various menu fields when the RVP900 is in playback mode.
0916-217

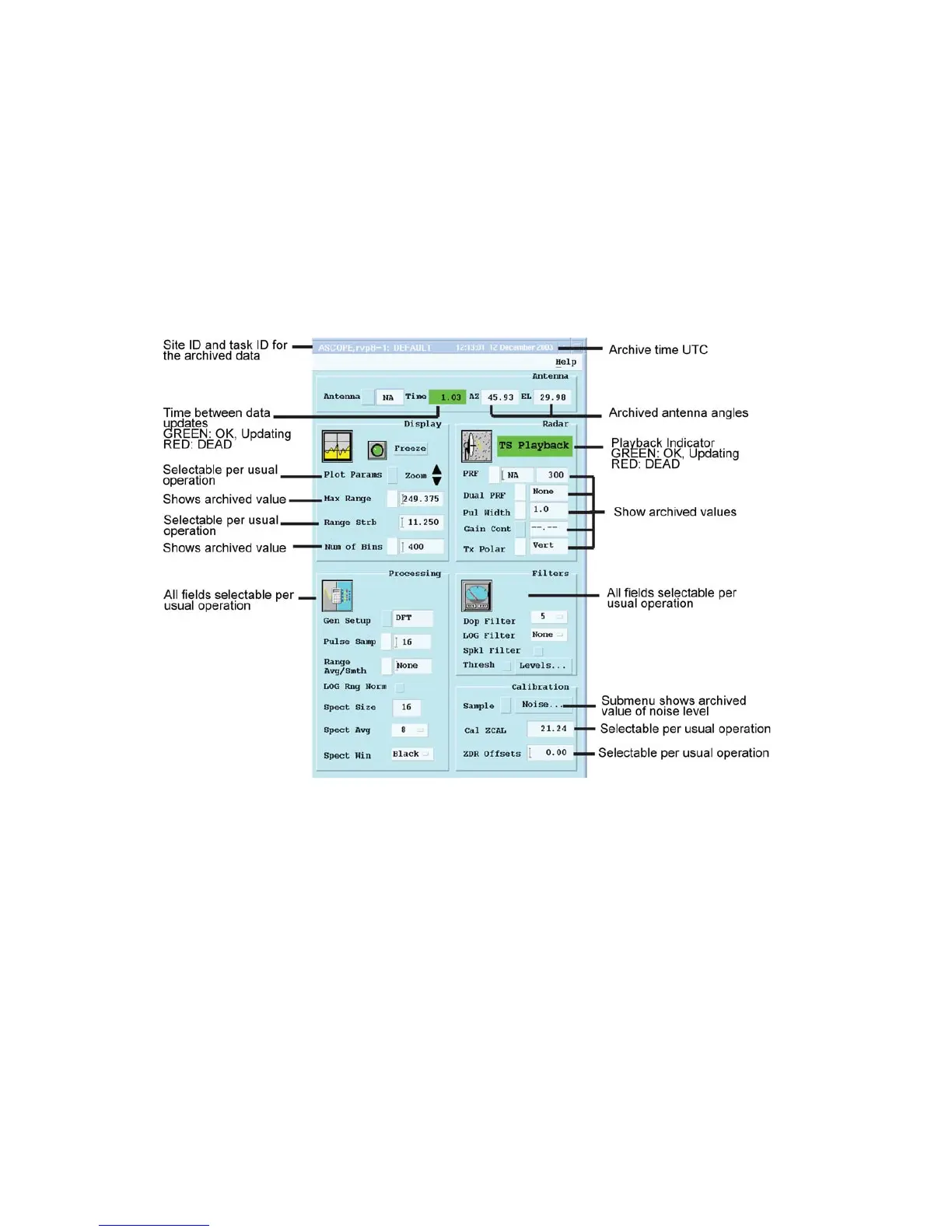

Figure 74 Ascope Differences during RVP900 TS Playback
When the RVP900 is in playback mode, versus processing real-time data,
the major difference is that some parameters were fixed at the time, when
the data were recorded. Some examples of fixed parameters are:
- Maximum range
-PRF
- Transmit polarization
- Number of range bins
- Phase coding
- Value of noise level
