USER’S MANUAL__________________________________________________________________
458 _________________________________________________________________ M211322EN-D
F.6 Physical Interface
F.6.1 Overall Size
The overall size of the RVP902 WSR98D panel is equal to or less than the
overall size of the RVP8/RCP8 ORDA panel.
0916-023

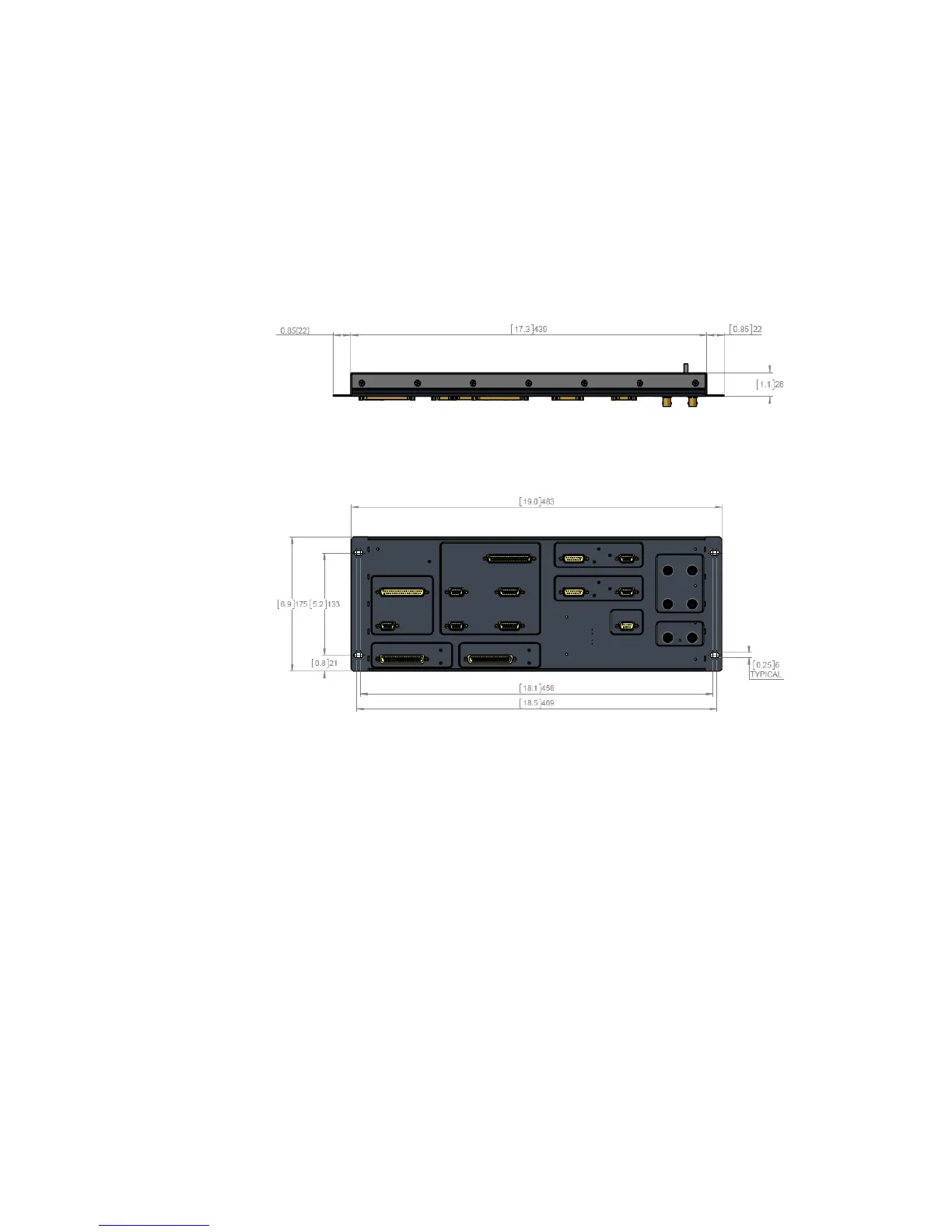

Figure 76 RCP902 WSR98D Top Panel Dimensions
0916-023
Figure 77 RCP902 WSR98D Back Panel Dimensions
F.6.2 Mounting Dimensions
The mounting dimensions of the RVP902 WSR98D panel are 4U 19 in
EIA rack mountable; the same as the RVP8/RCP8 ORDA panel. The
RVP902 WSR98D panel is capable of being mounted in the same location
an RVP8/RCP8 ORDA panel; without modification to the WSR98D radar.
F.6.3 Connector Locations
All the connectors on the RVP902 WSR98D panel that interface with the
WSR98D radar are located in the similar locations as the RVP8/RCP8
ORDA panel.
