Appendix G_______________ RVP900 Specification for ASR9-WSP with RCP903 ASR9-WSP Panel
VAISALA______________________________________________________________________ 485
0916-023

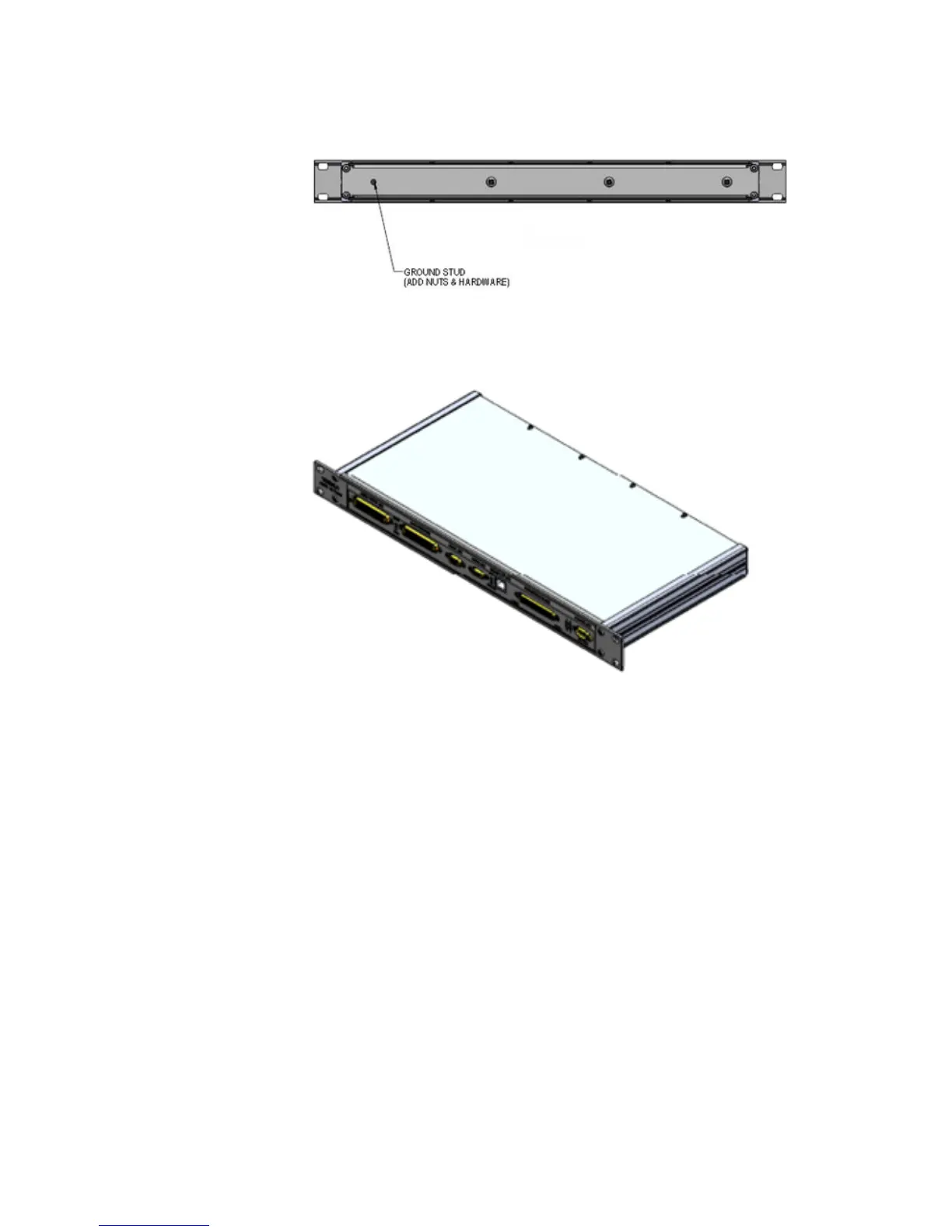

Figure 84 Back Panel Dimensions
0916-023
Figure 85 Panel Perspective View
G.6.2 Mounting Dimensions
The mounting dimensions of the RCP903 ASR9-WSP Panel alone are 1U
- 19 in EIA rack mountable. The RCP903 solution include a 1U shelf
mounted directly behind the panel. The rear mounting shelf includes a
connector strip with a switch, a power supply for the panel, an Ethernet
switch, and the associated cabling. The RCP903 ASR9-WSP Panel is
capable of being mounted in the same location as the RVP7 solution in the
ASR9 cabinets, without significant modification to the ASR9.
