E.6.3 Case 2: TS Recording on Separate
Archive Host
This is the recommended recording configuration for TS recording.
0916-212

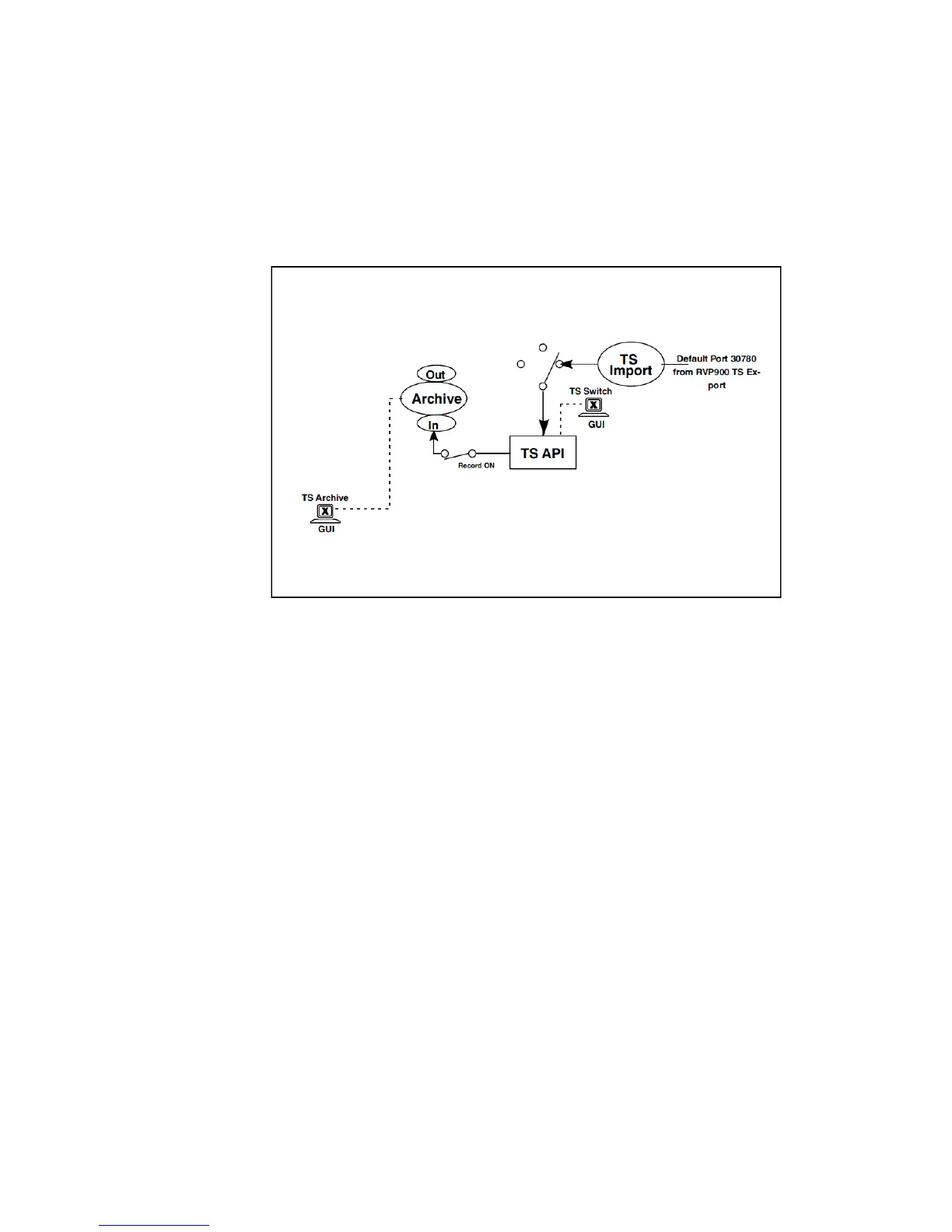

Figure 71 TS Record on Separate Archive Host
In this case, the TS Switch is set to write IQ data from the TS Import
network source. Typically this is a 100 or 1000 Base T LAN connection.
The time series are placed on the network through UDP broadcast by the
TS Export process on a networked RVP900.
Utility Settings
The advantage of having a separate archive host is that it is easy to install
a large disk that is dedicated to time series recording without having
record/playback/backup operations interfere with the normal operation of
an RVP900. There can be multiple archive hosts on the network.
RVP900
TS Switch: Local RVP900
TS Archive: N/A
Archive Host
TS Switch: Network
TS Archive: Record
