Startup Procedure and Test Run
4
4.2 Keypad: Names and Functions
YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference 119
4.2 Keypad: Names and Functions

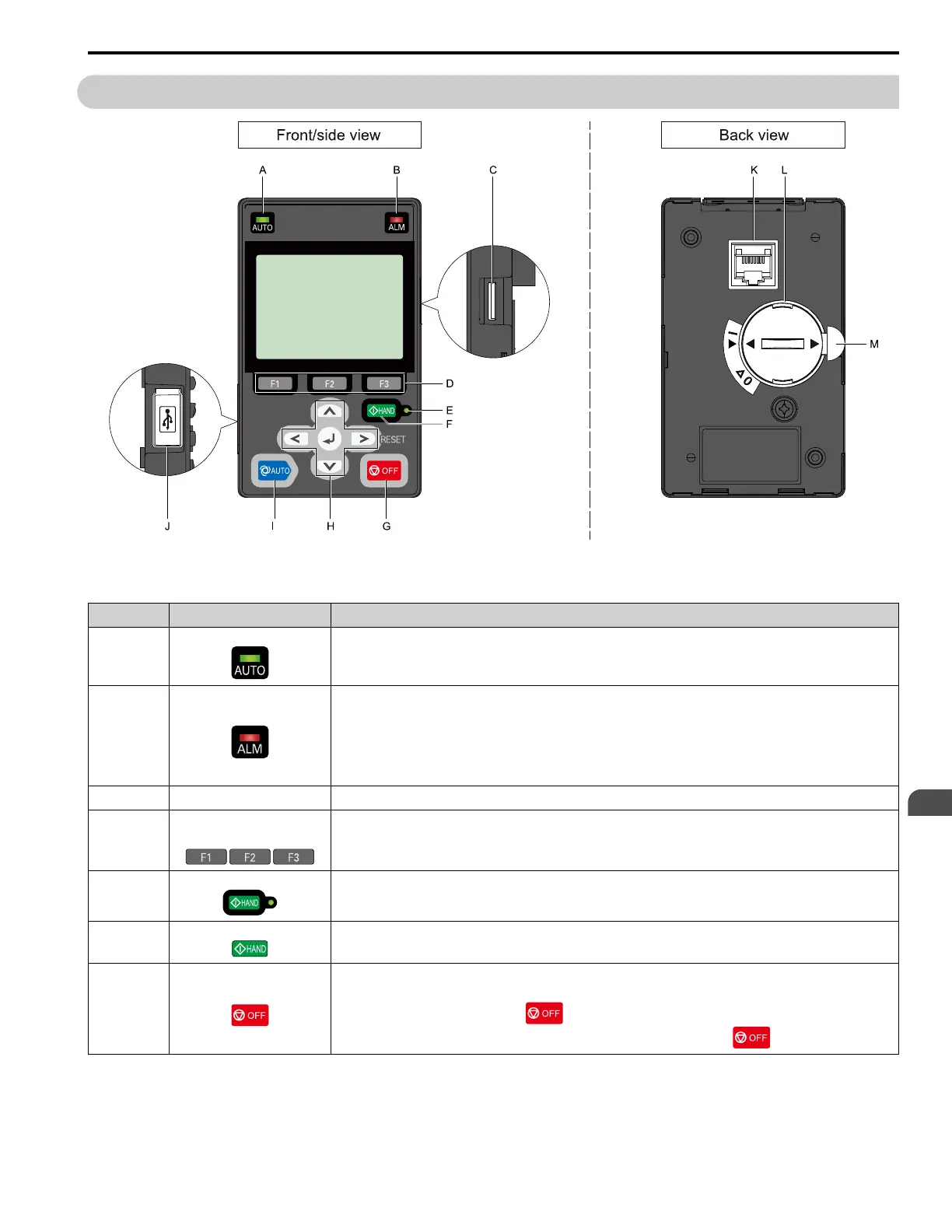

Figure 4.1 Keypad
Table 4.1 Keypad: Names and Functions
No. Name Function
A
AUTO LED
*1
Illuminates to show that the drive is in AUTO Mode.
B
ALM LED
Illuminates when the drive detects a fault.
Flashes when the drive detects:
• An alarm
• An oPE parameter setting error
• A fault or alarm during Auto-Tuning
The LED turns off when there are no drive faults or alarms.
C microSD Card Insertion Slot
The insertion point for a microSD card.
D
Function Keys
(F1, F2, F3)
The menu shown on the keypad sets the functions for function keys.
The name of each function is in the lower half of the display window.
E
HAND LED
*1
Illuminates to show that the drive is in HAND Mode.
F
HAND Key Sets drive operation to HAND Mode.
The drive uses the S5-01 [HAND Frequency Reference Selection] setting.
G
OFF Key
Stops drive operation.
Note:
The OFF key has highest priority. Push to stop the motor even when a Run command is active at an external Run
command source. Set o2-02 = 0 [STOP Key Function Selection = Disabled] to disable priority.
To Next Page
